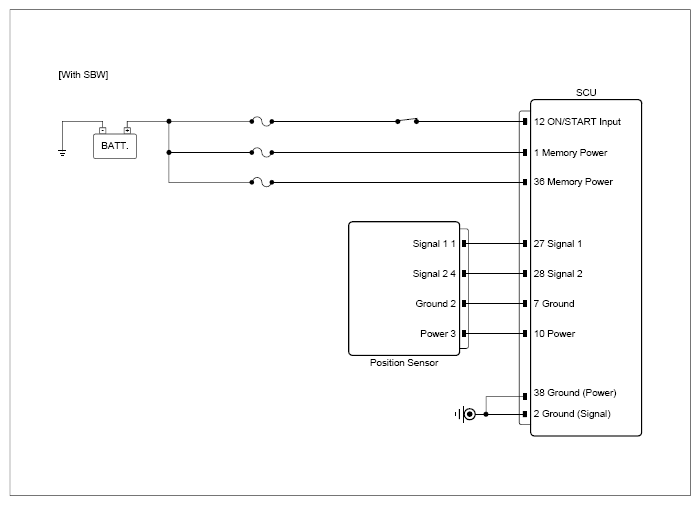

Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Position sensor connector (with SBW) | 3 (power) | Chassis ground | - | Approx. 5V |
| Position sensor connector (with SBW) | 2 (ground) | Chassis ground | - | Approx. 0V | |
| Position sensor connector (with SBW) | 1 (signal 1) | Chassis ground | - | Approx. 0V | |
| Position sensor connector (with SBW) | 4 (signal 2) | Chassis ground | - | Approx. 0V | |
|
Position sensor connector (with SBW) | 1 (signal 1) | Chassis ground | - | ∞ (infinity)Ω |
| Position sensor connector (with SBW) | 4 (signal 2) | Chassis ground | - | ∞ (infinity)Ω | |
| Position sensor connector (with SBW) | 1 (signal 1) | SCU connector | 27 (signal 1) | Approx. below 1Ω | |
| Position sensor connector (with SBW) | 4 (signal 2) | SCU connector | 28 (signal 2) | Approx. below 1Ω | |
| Position sensor connector (with SBW) | 2 (ground) | Chassis ground | - | Approx. below 1Ω | |
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of auxiliary battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
- If problem still occurs, replace position sensor and then Go to "Verification Of Repair " procedure.
