Component Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification

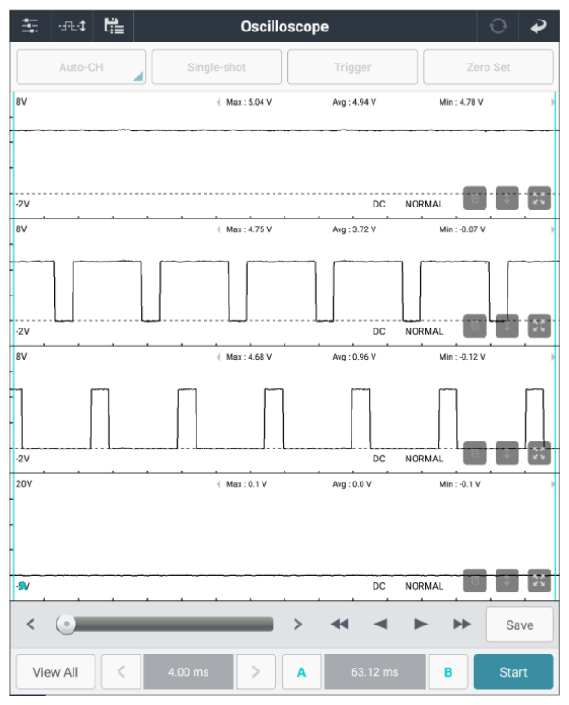

Ignition "ON", engine idle. Gear lever position at "P".	Position sensor connector	3 (power)	Position sensor connector	4 (signal 2)	Fig.1
Ignition "ON", engine idle. Gear lever position at "P".	Position sensor connector	1 (signal 1)	Position sensor connector	2 (ground)	Fig.1

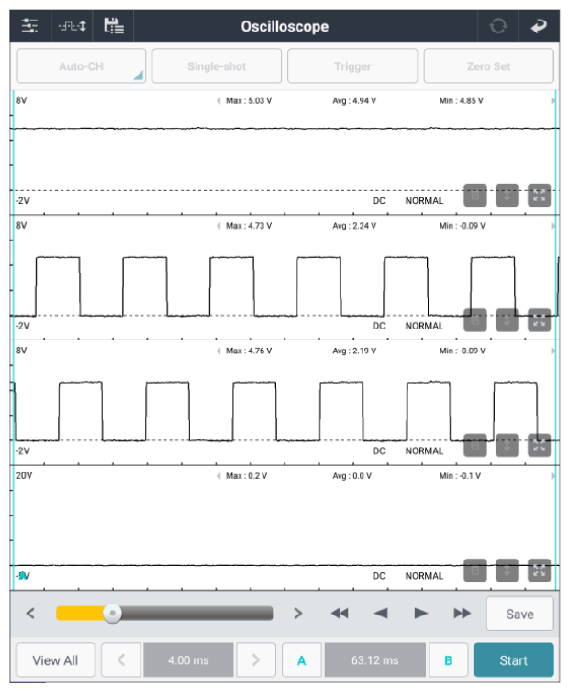

Ignition "ON", engine idle. Gear lever position at "R".	Position sensor connector	3 (power)	Position sensor connector	4 (signal 2)	Fig.2
Ignition "ON", engine idle. Gear lever position at "R".	Position sensor connector	1 (signal 1)	Position sensor connector	2 (ground)	Fig.2

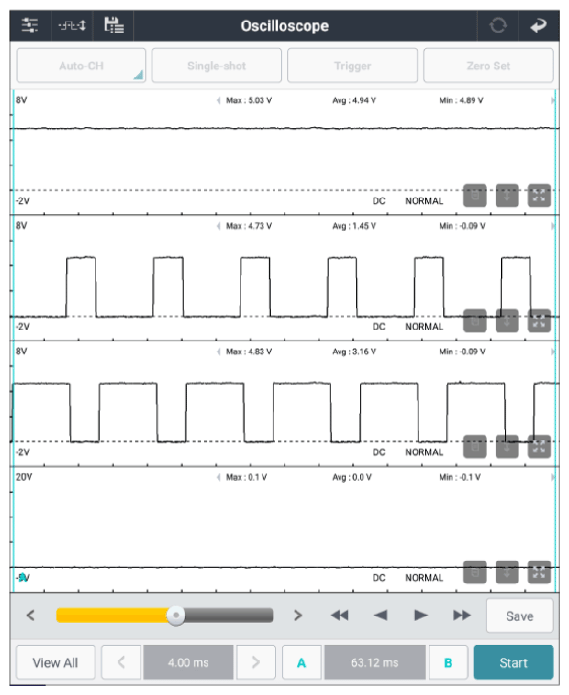

Ignition "ON", engine idle. Gear lever position at "N".	Position sensor connector	3 (power)	Position sensor connector	4 (signal 2)	Fig.3
Ignition "ON", engine idle. Gear lever position at "N".	Position sensor connector	1 (signal 1)	Position sensor connector	2 (ground)	Fig.3

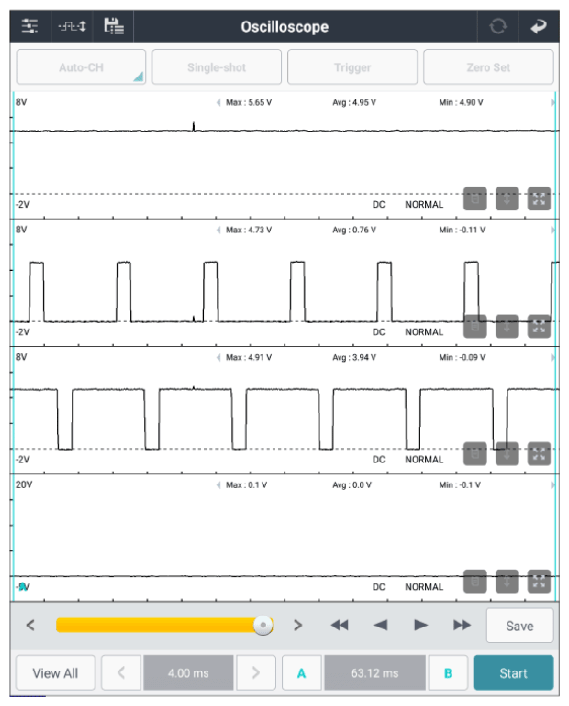

Ignition "ON", engine idle. Gear lever position at "D".	Position sensor connector	3 (power)	Position sensor connector	4 (signal 2)	Fig.4
Ignition "ON", engine idle. Gear lever position at "D".	Position sensor connector	1 (signal 1)	Position sensor connector	2 (ground)	Fig.4

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

Carefully re-do this troubleshooting guide steps.
Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
If problem still occurs, replace TCM and then Go to "Verification Of Repair " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace position sensor and then Go to "Verification Of Repair " procedure.
