Repair Procedures: Replacement: Bellows

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tie rod end.

    (Refer to Replacement - "TIE ROD END ")

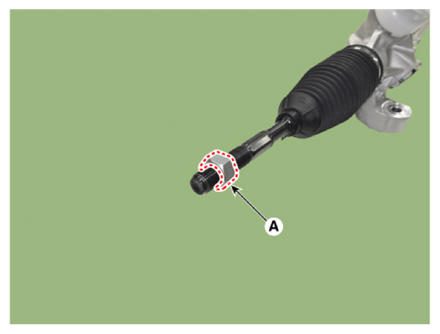

  2. Remove the tie rod end lock nut (A).
    G14958206Courtesy of KIA MOTORS AMERICA, INC.

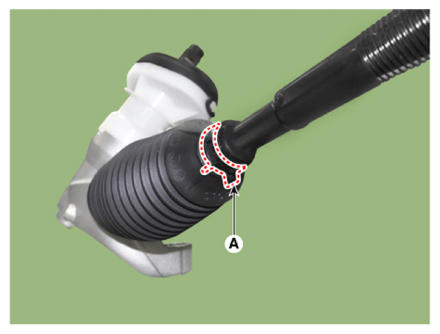

  3. Remove the bellows clamp (A).
    G14958207Courtesy of KIA MOTORS AMERICA, INC.

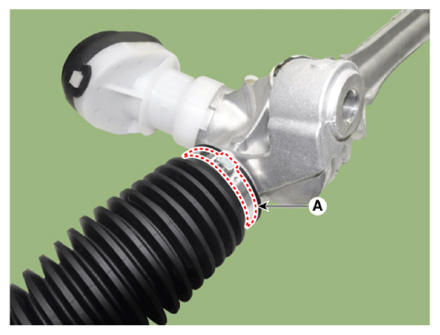

  4. Remove the bellows band (A).
    G14958208Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Be sure to replace the band with a new one.
    • After installing together with the band, assemble the bellows.

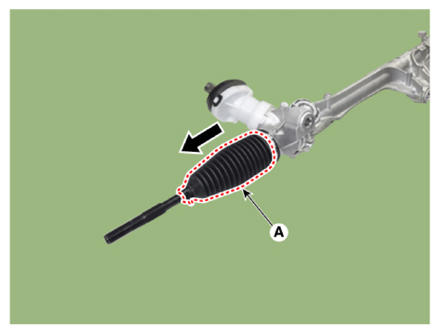

  5. Remove the bellows (A) to the arrow direction.
    G14958209Courtesy of KIA MOTORS AMERICA, INC.
  6. Replace the bellows with a new one.
  7. Check the alignment.

    (Refer to Suspension System - "ALIGNMENT ")
