Tie Rod End

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

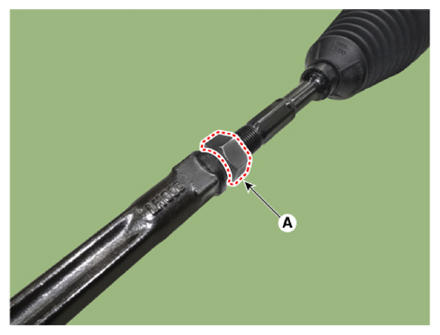

Remove the tie rod end lock nut (A).
Tightening torque:

49.0 - 53.9 N.m (5.0 - 5.5 kgf.m, 36.2 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: For easier assembly, measure the length or mark with paint on the thread before removing the tie rod end lock nut.

Courtesy of KIA MOTORS AMERICA, INC.

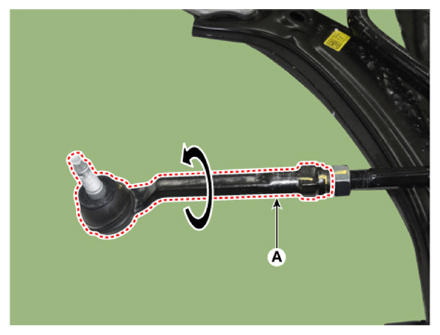

Remove the tie rod end (A) by removing it in the counter clockwise.

Courtesy of KIA MOTORS AMERICA, INC.
Replace the tie rod end with a new one.
Check the alignment.
(Refer to Suspension System - "ALIGNMENT ")
