Repair Procedures: Removal

WARNING:
  • When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
  • When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
  • When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
  1. Remove the main crash pad assembly.

    (Refer to Crash Pad - "MAIN CRASH PAD ASSEMBLY ")

  2. Remove the mounting nuts and through bolts in the frontal area and lower the steering column

    (Refer to Steering System - "MDPS COLUMN AND HOUSING ")

  3. Remove the integrated central control unit (ICU)

    (Refer to Body Electrical System - "INTEGRATED CENTRAL CONTROL UNIT (ICU)

  4. Remove the integrated body control unit (IBU)

    (Refer to Body Electrical System - "INTEGRATED BODY CONTROL UNIT (IBU) ")

  5. Remove the surround view monitor (SVM)

    (Refer to Advanced Driver Assistance System (ADAS) - "SURROUND VIEW MONITOR (SVM) ECU ")

  6. Disconnect the steering column connectors.

    (Refer to Advanced Driver Assistance System (ADAS) - "PARKING COLLISION-AVOIDANCE ASSIST-REVERSE (PCA-R) UNIT ")

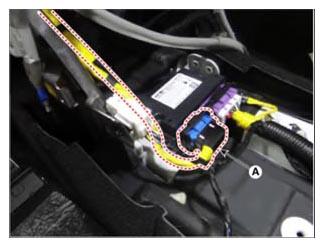

  7. Disconnect the airbag system control module connector (A).
    G14940159Courtesy of KIA MOTORS AMERICA, INC.

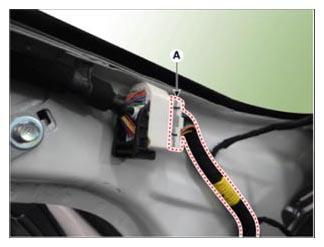

  8. Disconnect the connectors (A) by removing the front pillar area clip.

    [Driver]

    G14940160Courtesy of KIA MOTORS AMERICA, INC.

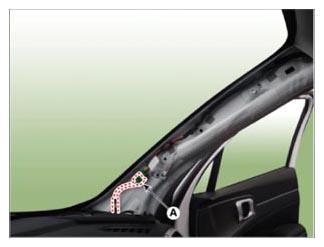

    [Passenger]

    G14940161Courtesy of KIA MOTORS AMERICA, INC.

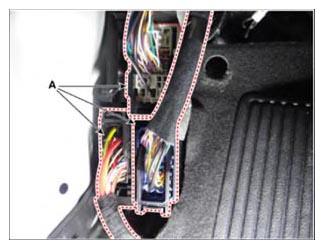

  9. Disconnect the multi box connectors (A).

    [Driver]

    G14940162Courtesy of KIA MOTORS AMERICA, INC.

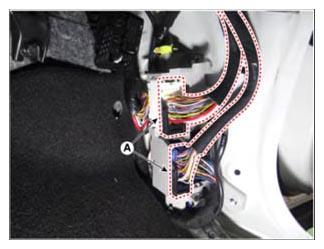

    [Passenger]

    G14940163Courtesy of KIA MOTORS AMERICA, INC.

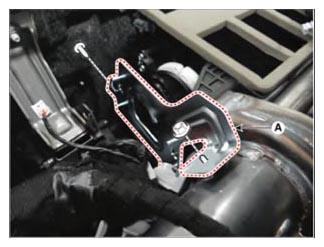

  10. Remove the parking collision-avoidance assist unit bracket (A) by removing the mounting nut and screw.
    G14940164Courtesy of KIA MOTORS AMERICA, INC.
  11. Disconnect the heater and blower unit connectors.

    [Driver]

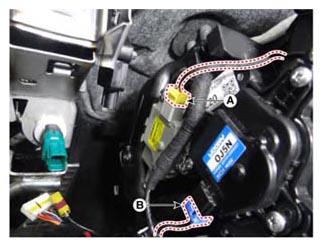

    1. Disconnect the temperature control actuator (A), mode control actuator connector (B).
      G14940165Courtesy of KIA MOTORS AMERICA, INC.

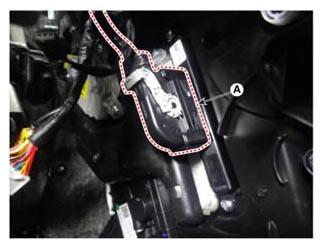

    2. Disconnect the PTC heater connector (A).
    G14940166Courtesy of KIA MOTORS AMERICA, INC.

    [Passenger]

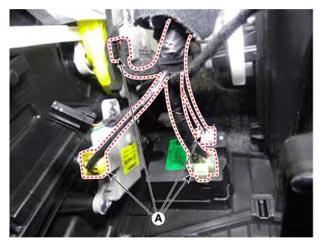

    1. Disconnect the connector (A).
      G14940167Courtesy of KIA MOTORS AMERICA, INC.

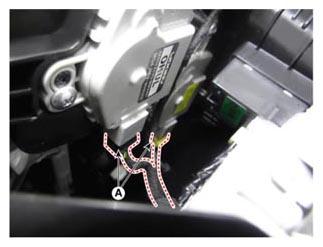

    2. Disconnect the connector (A).
      G14940168Courtesy of KIA MOTORS AMERICA, INC.

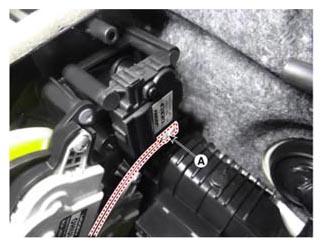

    3. Disconnect the auto defogging actuator connector (A).
      G14940169Courtesy of KIA MOTORS AMERICA, INC.

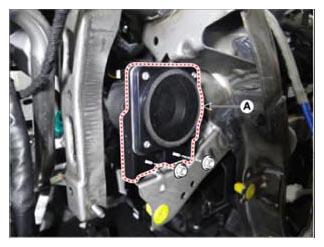

  12. Remove the cluster speaker (A) by removing the mounting nuts.
    G14940170Courtesy of KIA MOTORS AMERICA, INC.

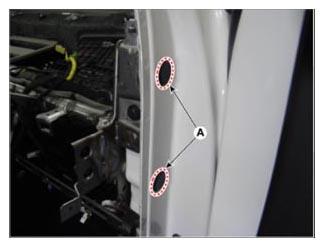

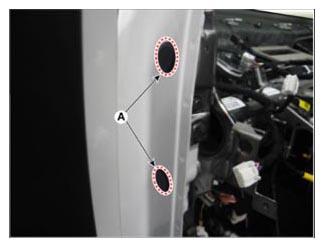

  13. Removing the mounting cowl cross bar side bolts after removing the plug hole (A).

    [LH]

    Tightening torque:

    16.7 - 22.6 N.m (1.7 - 2.3 kgf.m, 12.3 - 16.6 lb.ft)

    G14940171Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

    G14940172Courtesy of KIA MOTORS AMERICA, INC.
  14. Remove the wiper motor.

    (Refer to Body Electrical System - "WIPER MOTOR ")

  15. Remove the engine control module (ECM).

    (Refer to Engine Control/Fuel System - ENGINE CONTROL MODULE (ECM) ")

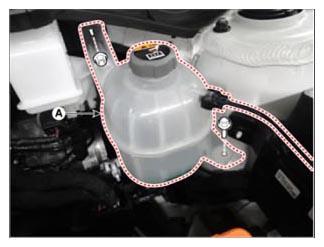

  16. Remove the reservoir tank by removing the mounting bolt and nut.
    G14940173Courtesy of KIA MOTORS AMERICA, INC.

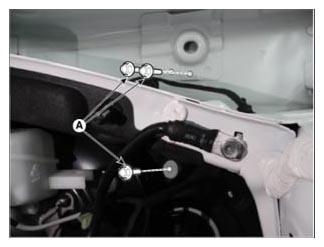

  17. Remove the engine room cowl cross bar assembly mounting bolts.

    Tightening torque:

    22.6 - 30.4 N.m (2.3 - 3.1 kgf.m, 16.6 - 22.4 lb.ft)

    G14940174Courtesy of KIA MOTORS AMERICA, INC.

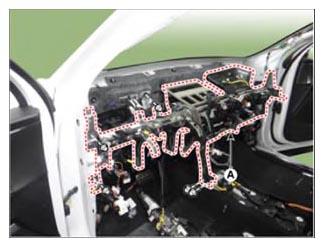

  18. Remove the cowl cross bar assembly (A) by removing the mounting bolts.

    Tightening torque:

    16.7 - 23.5 N.m (1.7 - 2.4 kgf.m, 12.3 - 17.4 lb.ft)

    [LH]

    G14940175Courtesy of KIA MOTORS AMERICA, INC.

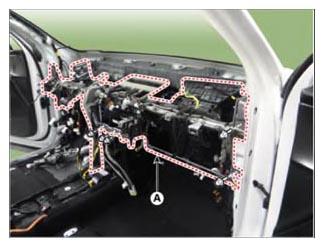

    [RH]

    G14940176Courtesy of KIA MOTORS AMERICA, INC.

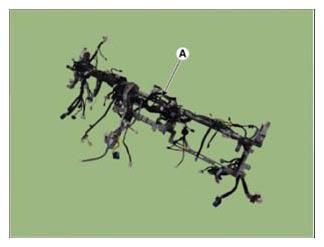

  19. Remove the main wiring (A) from cowl cross bar assembly.
    G14940177Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Refit the main wiring exactly as it was originally intended.
