Parking Collision-Avoidance Assist-Reverse (PCA-R) Unit

  1. Remove the main crash pad assembly.

    (Refer to Body - "MAIN CRASH PAD ASSEMBLY ")

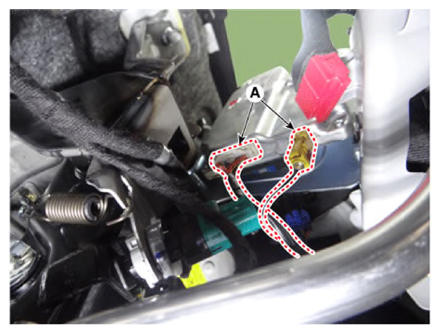

  2. Disconnect the PCA unit connectors (A).
    G14959304Courtesy of KIA MOTORS AMERICA, INC.

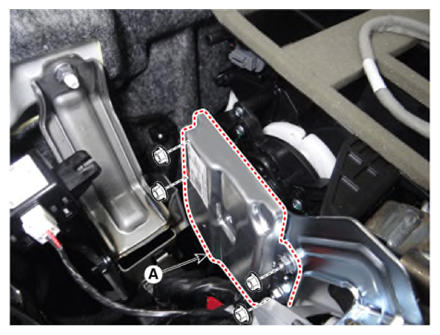

  3. Remove the PCA unit (A) by removing the mounting nuts.
    G14959305Courtesy of KIA MOTORS AMERICA, INC.
