Monitor DTC Status

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

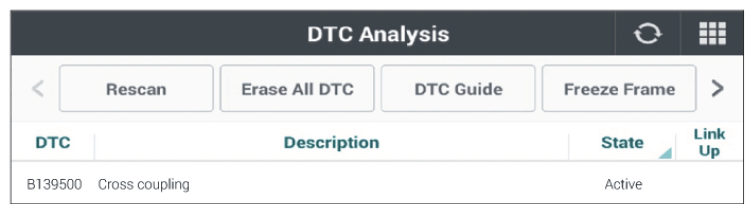

 Fig.1
G14863834Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

  1. Go to "MONITOR KDS DATA " procedure.

History/Pending Fault

  1. Go to "Verification of Repair " procedure.
