Monitor KDS Data

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Monitor parameters in "Current Data" with KDS.	Fig.1
EV "ON".		Fig.2

G14863835

Courtesy of KIA MOTORS AMERICA, INC.

G14863836

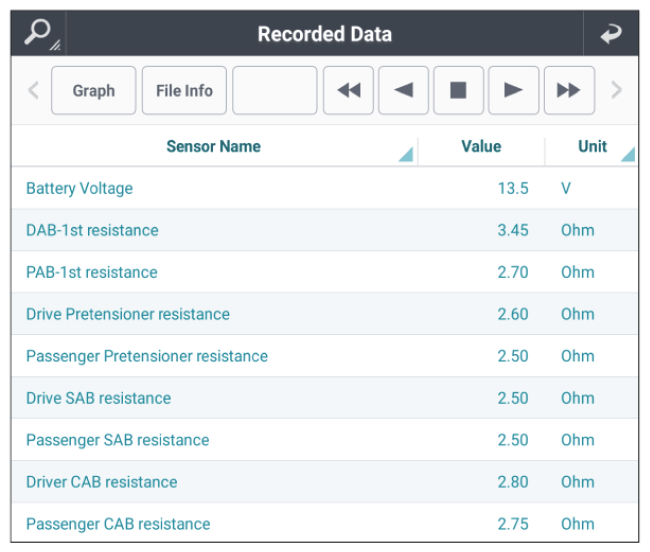

Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: If you strike or spin the SRSCM at the ignition "ON" state, the BPT, CAB or SAB could be unfolded and bring on danger. Handle it with care.

Good

Fault is intermittent caused by poor contact in the sensor's and/or SRSCM's connector or was repaired and SRSCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Repair " procedure.

No Good

Check for short between ignition circuits of DAB, PAB, BPT, CAB, SAB, APT If the condition of harness and component is OK, this fault is caused by SRSCM internal error so replace a known-good SRSCM and then go to "Verification of Repair " procedure.
