Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

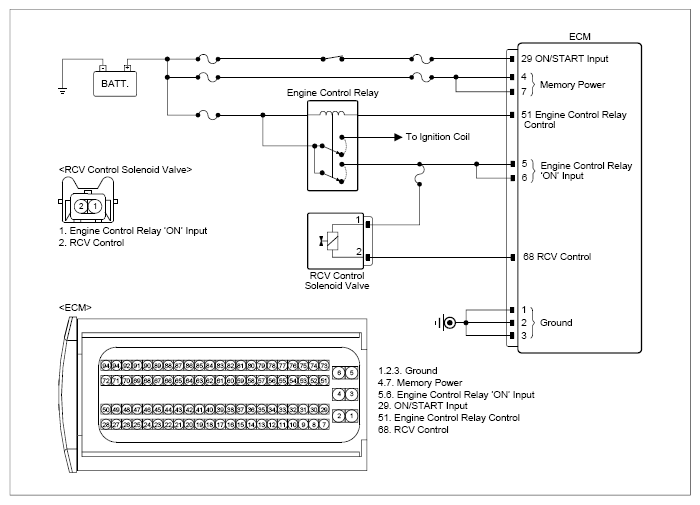

G13485472

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	RCV control solenoid valve connector	1 (power)	Chassis ground	-	Approx. 12V
	RCV control solenoid valve connector	2 (control)	Chassis ground	-	Approx. 0V
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	RCV control solenoid valve connector	1 (power)	RCV control solenoid valve connector	2 (control)	∞ (infinity)Ω
	RCV control solenoid valve connector	2 (control)	Chassis ground	-	∞ (infinity)Ω
	RCV control solenoid valve connector	2 (control)	ECM connector	68 (control)	Approx. below 1Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
