Component Inspection
WARNING: This page is about a different variant/trim than selected.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

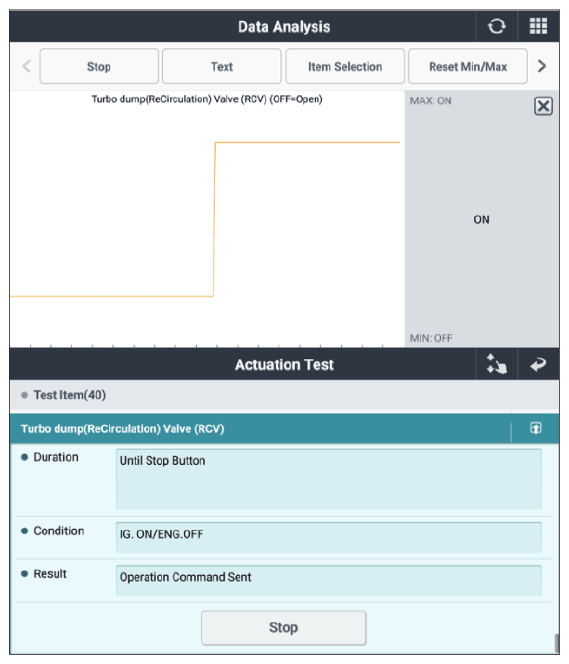

Fig.1 |
Good
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Go to "INSPECT RCV CONTROL SOLENOID VALVE " procedure below.
RCV CONTROL SOLENOID VALVE INSPECTION CONDITION
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
RCV control solenoid valve (component side) | 1 (power) | RCV control solenoid valve (component side) | 2 (control) | Approx. 28.3 to 31.1Ω (20°C (68° F)) |
Good
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the RCV control solenoid valve and go to "VERIFICATION OF REPAIR " procedure.
