Repair Procedures: Installation
WARNING: This page is about a different variant/trim than selected.
- Install in the reverse order of removal.NOTE:
- If clutch actuator & TCM assembly needs replacement, measure the pull rod length of the old clutch actuator & TCM assembly to determine if clutch wear compensation reset is needed.
(Refer to Clutch Actuator & Assembly - "ADJUSTMENT ")
- If needed, perform clutch actuator clutch wear compensation reset.
(Refer to Clutch Actuator & Assembly - "ADJUSTMENT ")

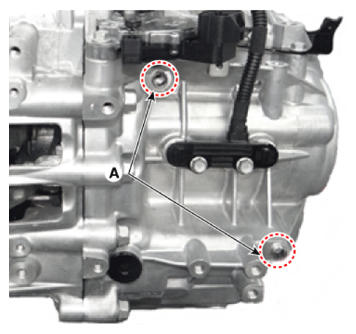

- Check the assembled state of the dowel pins (A) before installing the clutch actuator & TCM assembly.
- If clutch actuator & TCM assembly needs replacement, measure the pull rod length of the old clutch actuator & TCM assembly to determine if clutch wear compensation reset is needed.

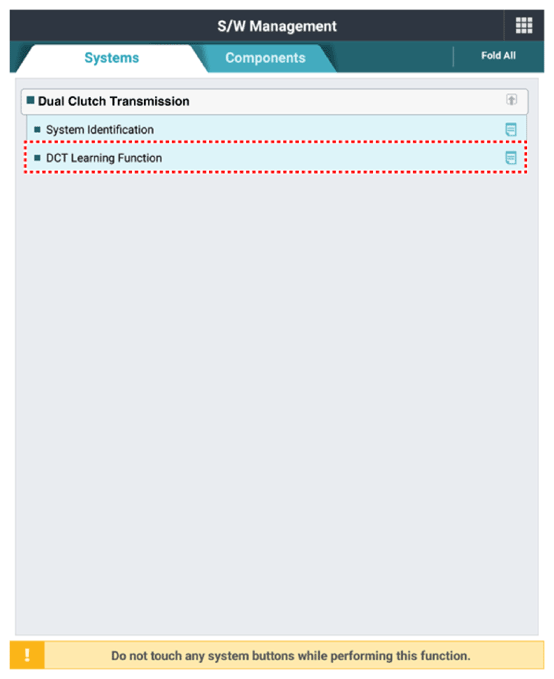

- Perform the DCT learning procedure using the KDS after replacing the clutch actuator & TCM assembly.NOTE:
- Before performing the DCT learning procedure using KDS, perform the learning process after leaving for 5 minutes in the idle state. Because there may be a problem with operation of wear compensation device when entering the DCT learning function with battery low voltage condition.
- When performing the DCT learning function, Perform the DCT learning function twice for ensure accuracy and reliability of the clutch touch point.
