Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")

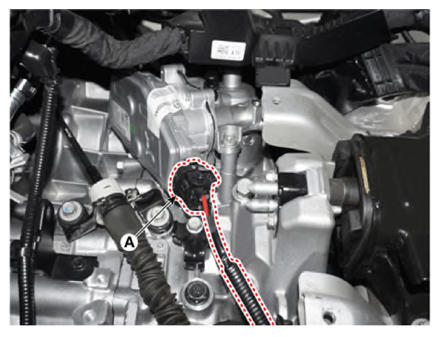

Disconnect the gear actuator motor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

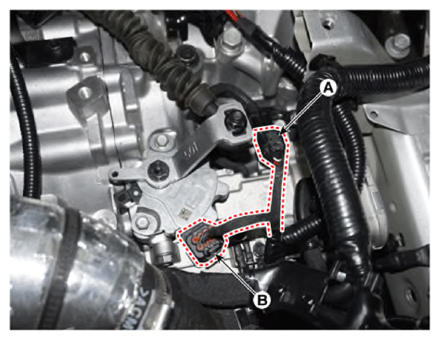

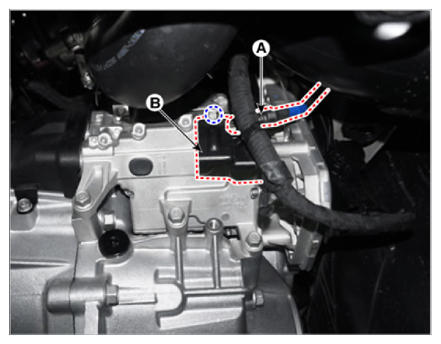

Disconnect the speed sensor connector (A) and inhibitor switch connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

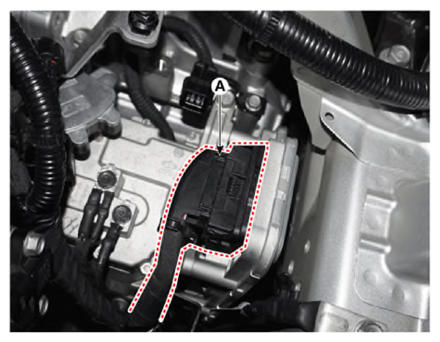

Disconnect the TCM connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

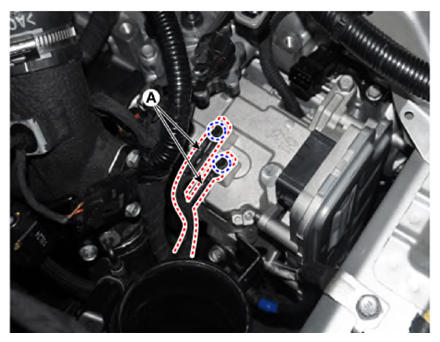

Remove the ground (A) by loosening the bolts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

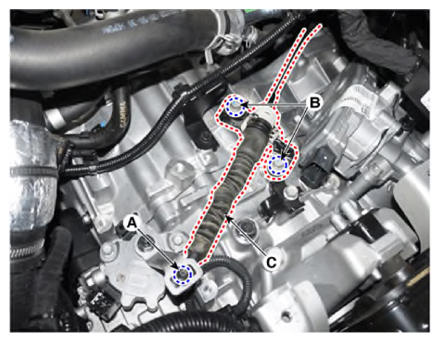

Remove the shift cable (C) after removing the nut (A) and bolts (B).
Tightening torque:
1. 9.8 - 13.7 N.m (1.0 - 1.4 kgf.m, 7.2 - 10.1 lb.ft)
2. 19.6 - 26.5 N.m (2.0 - 2.7 kgf.m, 14.5 - 19.5 lb.ft)
Courtesy of KIA MOTORS AMERICA, INC.

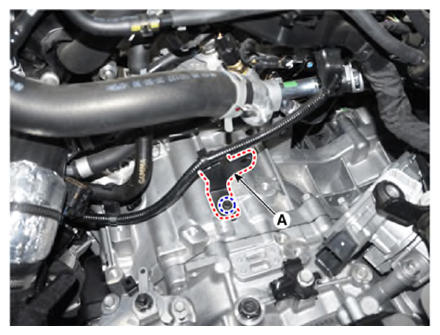

Remove the wiring bracket (A) by loosening the bolt.
Tightening torque:

19.6 - 26.5 N.m (2.0 - 2.7 kgf.m, 14.5 - 19.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

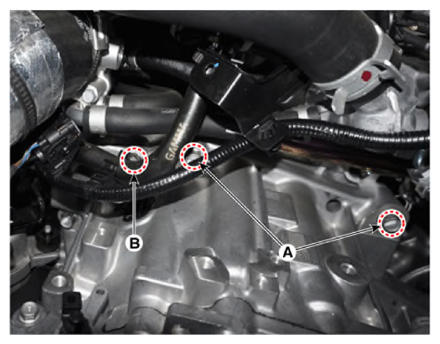

Loosen the transmission upper mounting bolts (A) and starter mounting bolt (B).
Tightening torque:
1. 42.2 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb.ft)
2. 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)
Courtesy of KIA MOTORS AMERICA, INC.

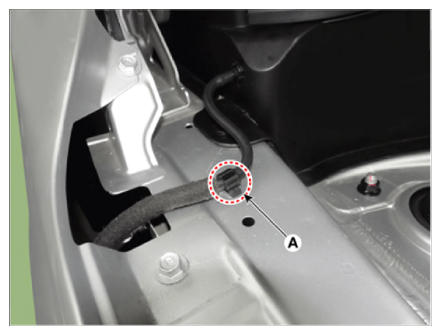

Remove the washer hose fixing clip (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the cowl top cover.
(Refer to Body - "COWL TOP COVER ")

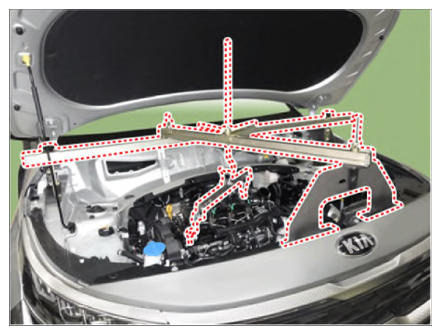

Assemble the engine support fixture on the engine room.
(Refer to "SPECIAL SERVICE TOOLS ").

Courtesy of KIA MOTORS AMERICA, INC.
Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Remove the front wheel guard.
(Refer to Body - "FRONT WHEEL GUARD ")

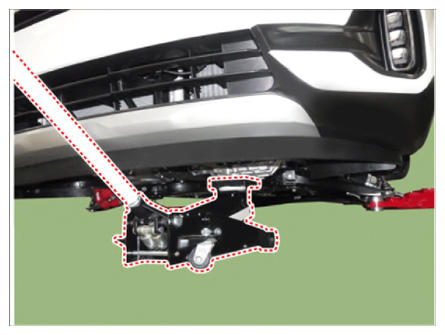

Support the transmission safely on a jack.

Courtesy of KIA MOTORS AMERICA, INC.

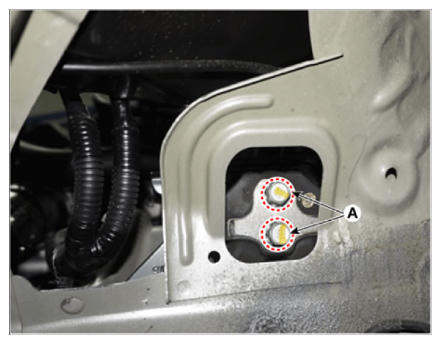

Loosen the transmission mounting bracket bolts (A).
Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

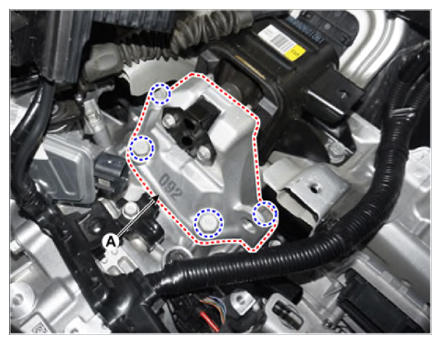

Remove the transmission support bracket (A).
Tightening torque:

58.8 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the ground (A) and bracket (B) by loosening the bolt.
Tightening torque:

19.6 - 26.5 N.m (2.0 - 2.7 kgf.m, 14.5 - 19.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the sub frame.
(Refer to Suspension System - "SUB FRAME ")
Remove the drive shaft assembly.
(Refer to Driveshaft and Axle - "FRONT DRIVESHAFT ")
Remove the transfer assembly.[4WD only]
(Refer to 4 Wheel Drive System - "FRONT WHEEL TRANSFER ASSEMBLY ")
Remove the vacuum pump.
(Refer to Brake System - "VACUUM PUMP ")

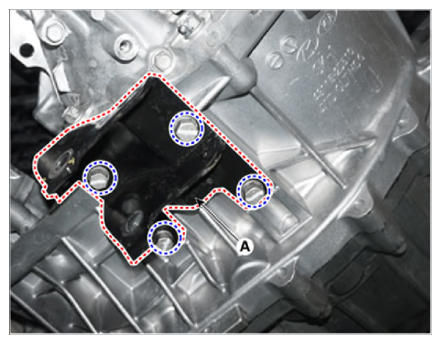

Remove the roll rod support bracket (A).
Tightening torque:

49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Support the transmission safely on a jack.

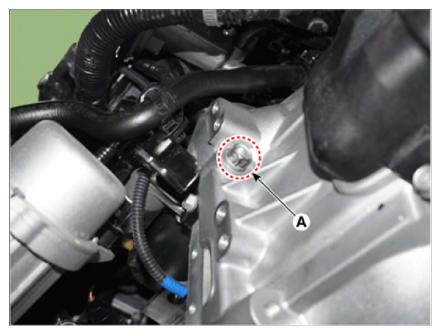

Loosen the starter mounting bolt (A).
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

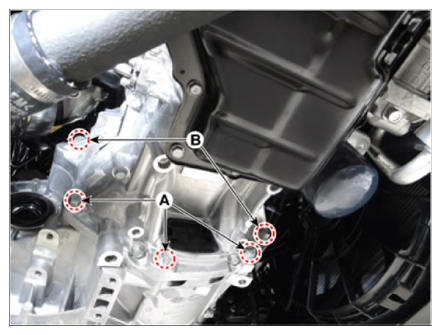

Loosen the transmission lower mounting bolts (A, B).
Tightening torque
1. 42.2 - 48.1 N.m (4.3 - 4.9 kgf.m, 31.1 - 35.4 lb.ft)
2. 42.2 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb.ft)
Courtesy of KIA MOTORS AMERICA, INC.
After separating the transmission from the engine, remove the transmission by lowering the jack slowly.
NOTE: Be careful not to damage other nearby systems or parts when removing the transmission assembly.
Remove the dual clutch assembly from the transmission.
(Refer to Dual Clutch System - "DUAL CLUTCH ASSEMBLY ")
