Special Service Tools
WARNING: This page is about a different variant/trim than selected.
| Tool Name/Number | Illustration | Description |
|---|---|---|
| Engine support fixture (bar) 09200-3N000 |
Used for holding engine assembly when removing/installing transaxle Used with the adapter (09200-4X000) and supporter (09200-2S000) *Refer to the engine support fixture assembly drawing below. |
|
Engine support fixture (supporter)
|
Used for holding engine assembly when removing/installing transaxle Used with the bar (09200-3N000) and adapter (09200-4X000) *Refer to the engine support fixture assembly drawing below. |
|
| Engine support fixture (adapter) 09200-4X000 |
Used for holding engine assembly when removing/installing transaxle Used with the bar (09200-3N000) and supporter (09200-2S000) *Refer to the engine support fixture assembly drawing below. |
|
| Oil seal installer 09453-3L240 |
Used for installing differential oil seal Used with the handle (09231-H1100) |
|
| Oil seal installer 09473-D3500 |
Used for installing driven gear oil seal [4WD only] Used with the handle (09231-H1100) |
|
| Handle 09231-H1100 |
Used for installing differential oil seal Used with the installer (09453-3L240) |
|
| Inhibitor switch guide pin 09480-A3800 |
Used for fixing "N" range when installing inhibitor switch | |
| Dual clutch remover 09430-C1180 |
Used for removing dual clutch assembly | |
| Dual clutch installer 09430-2A240 |
Used for installing dual clutch assembly | |
| Clutch actuator remover 0K430-Q5100 |
Used for removing clutch actuator assembly | |
| Clutch actuator adjuster 0K430-Q5300 |
Used for adjusting clutch actuator Used with the clutch actuator adjustment jig (09430-C1302) |

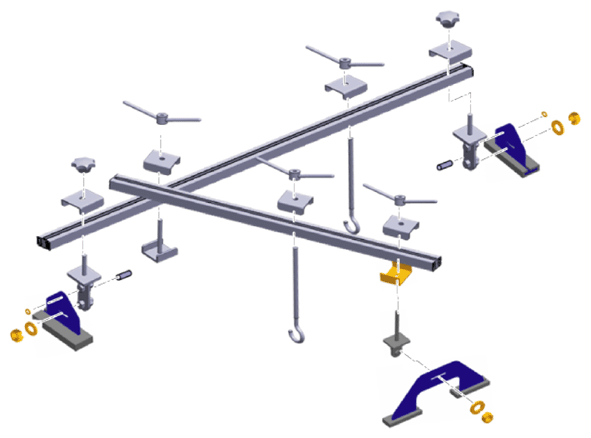

* Engine support fixture special tool assembly drawing
