Air Cleaner Assembly

Disconnect the battery negative terminal.

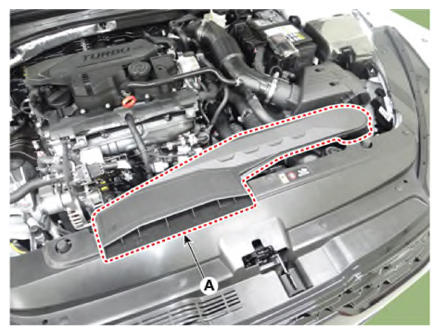

Remove the air duct (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the engine cover.
(Refer to " Removal And Installation ")

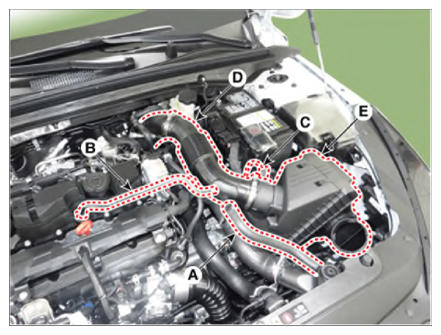

Remove the air cleaner assembly.
1. Disconnect the RCV hose and pipe (A).
2. Disconnect the breather hose (B).
3. Disconnect the MAFS connector (C).
4. Remove the air intake hose (D).
  Tightening torque:

  Hose clamp: 2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb.ft, 26.0 - 43.4 lb.in)
5. Remove the air cleaner assembly (E).
  Tightening torque:

  7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
