Removal And Installation

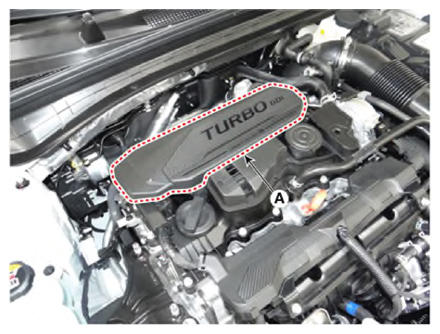

  1. Remove the engine cover (A).
    G13833474Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Remove the engine cover on room temperature.
    • Do not disengage both front and rear mounting point at the same time.
  2. Install in the reverse order of removal.
