Repair Procedures: Replacement
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Take care not to bend or scratch the trim and panels.
- Put on gloves to prevent hand injuries.
- Lower the steering wheel.
- Remove the crash pad lower panel.
(Refer to " Replacement ")
- Remove the audio/AVN head unit.
(Refer to " Removal ")

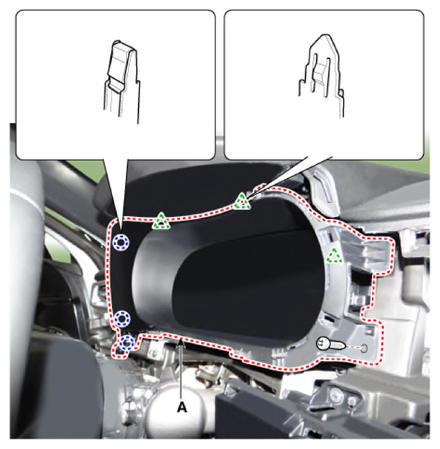

- Loosen the mounting screws and remove the cluster fascia panel (A).
- To install, reverse removal procedure.
Information
Replace any damaged clips (or pin-type retainers).
