Repair Procedures: Removal

NOTE: When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  1. Disconnect the negative battery terminal.
  2. Remove the cluster fascia panel.

    (Refer to " Replacement  ")

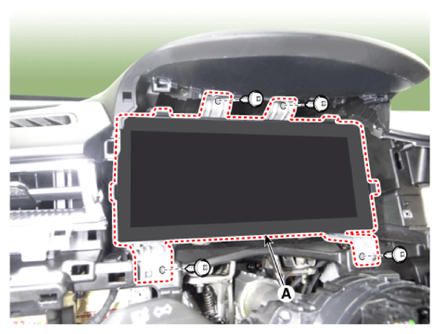

  3. Remove the instrument cluster (A) by loosening the mounting screws.
    G13836008Courtesy of KIA MOTORS AMERICA, INC.

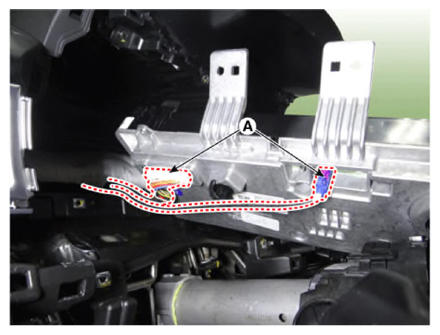

  4. Disconnect the instrument cluster connectors (A).
    G13836009Courtesy of KIA MOTORS AMERICA, INC.
