Monitor GDS Data
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Connect GDS to Data Link Connector (DLC).
- Lift vehicle with suitable lift and Engine "ON".
- Leave the selector lever in manual mode, after Operate vehicle or system in accordance with Enable Condition in DTC Detecting Condition.

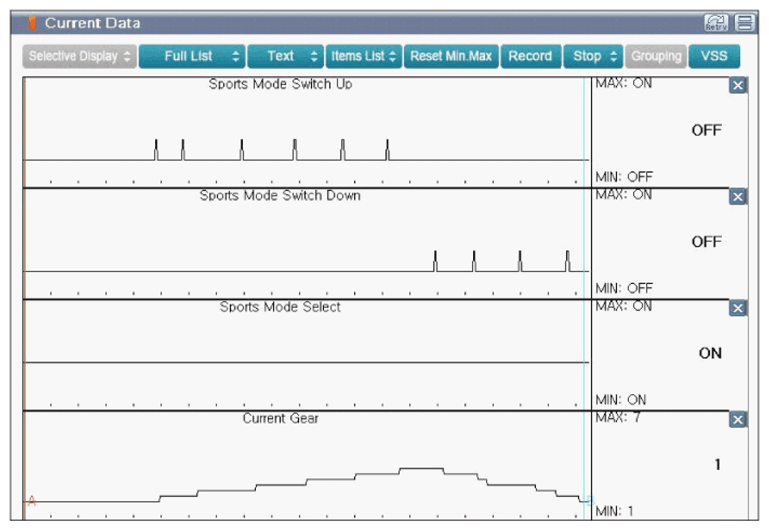

- Monitor selected parameters displayed in image below in "Current Data" with GDS.
Specification: Refer to image Below
- Is the value within specification?
YES
- This can be an intermittent fault caused by poor contact in the sensor's and/or control module's connector. Or, control module's memory was not cleared after repair. Thoroughly check connectors for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage.
- Repair or replace the relevant component(s) as necessary, and go to "VERIFICATION OF VEHICLE REPAIR ".
NO
- Go to next procedure.
