Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: In case of replacing TCM or Clutch pack perform following procedures
  1. Perform "DCT Learning" in "Vehicle S/W Management" with GDS.
G12602110Courtesy of HYUNDAI MOTOR AMERICA

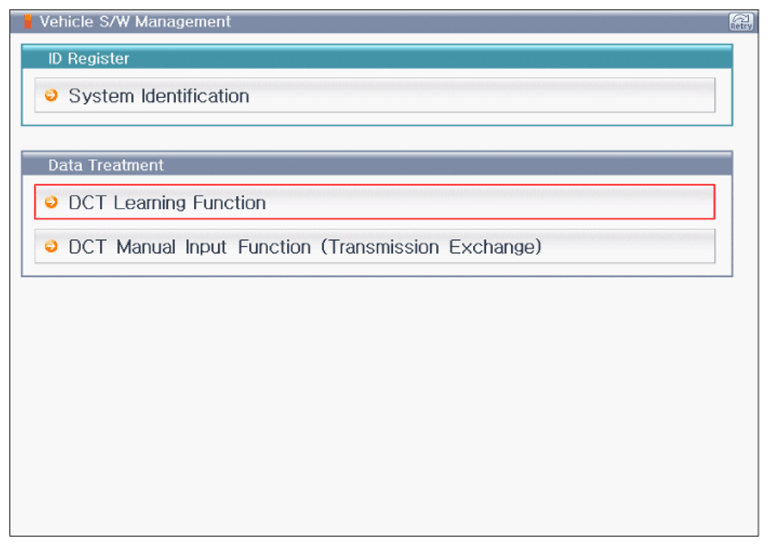

G12602111Courtesy of HYUNDAI MOTOR AMERICA

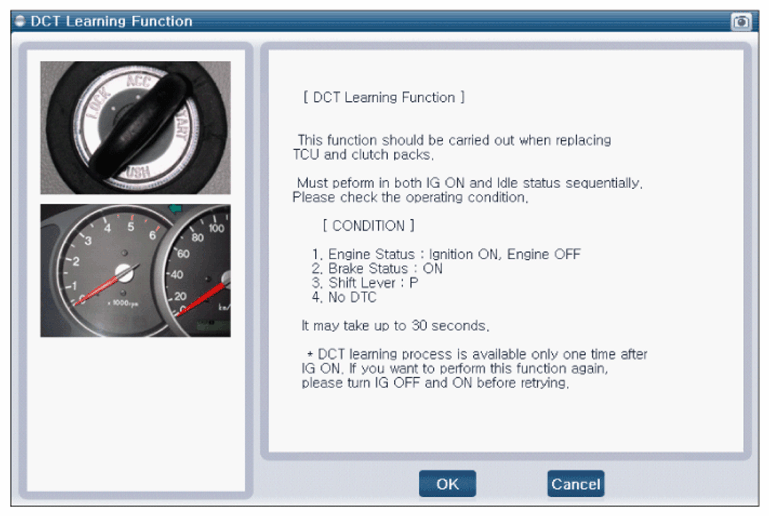

G12602112Courtesy of HYUNDAI MOTOR AMERICA

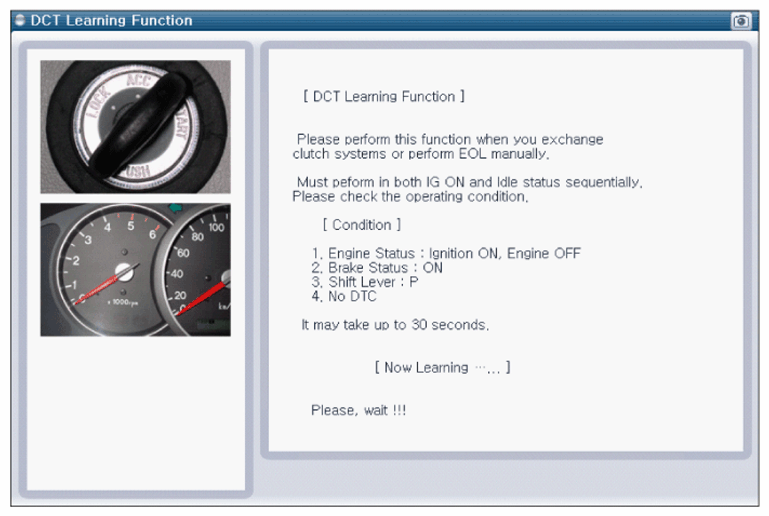

G12602113Courtesy of HYUNDAI MOTOR AMERICA

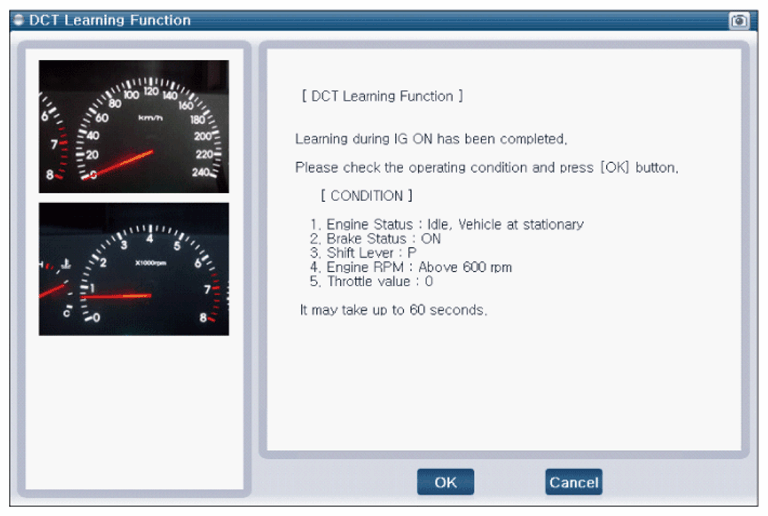

G12602114Courtesy of HYUNDAI MOTOR AMERICA

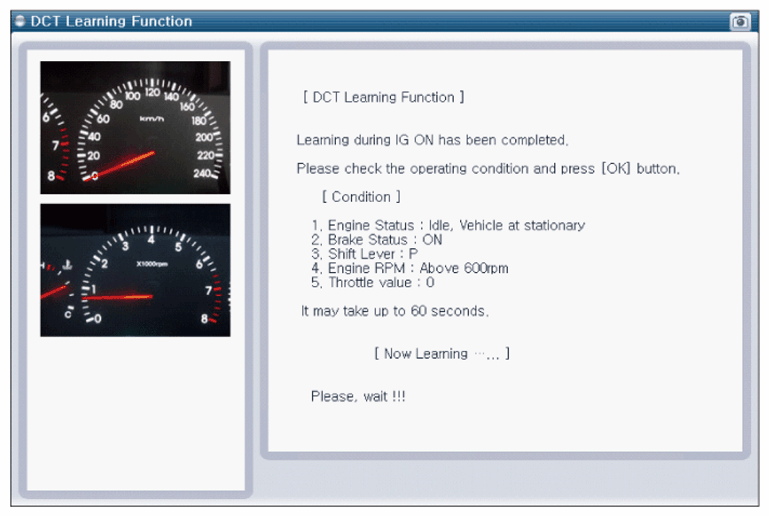

G12602115Courtesy of HYUNDAI MOTOR AMERICA

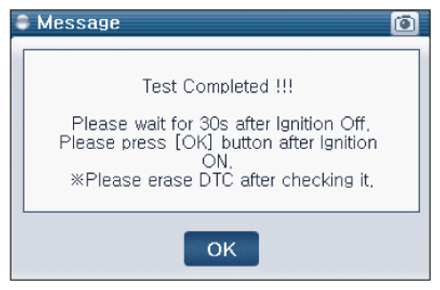

G12602116Courtesy of HYUNDAI MOTOR AMERICA
CAUTION: In case of replacing DCT perform following procedures;
  1. Perform "DCT Manual Input Function (Transmission Exchange)" in "Vehicle S/W Management" with GDS.

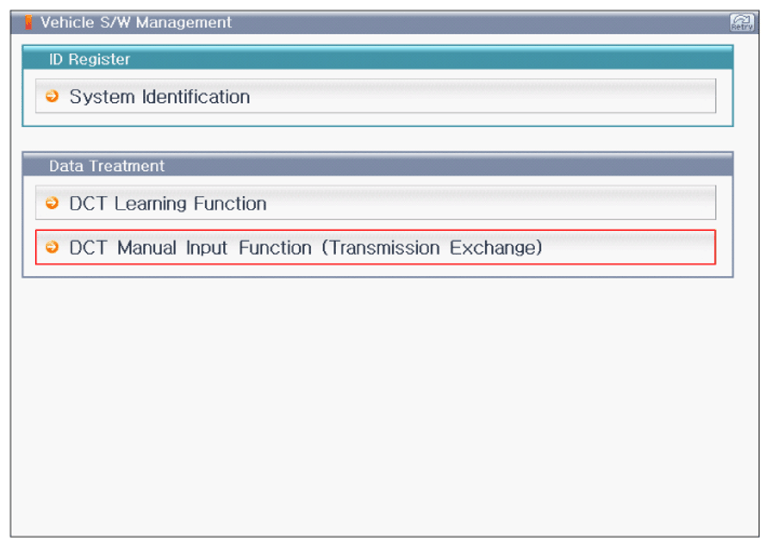

G12602117Courtesy of HYUNDAI MOTOR AMERICA

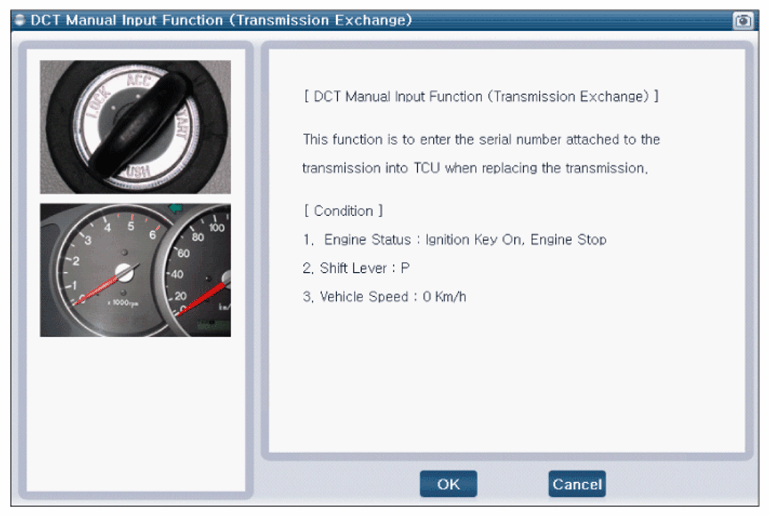

G12602118Courtesy of HYUNDAI MOTOR AMERICA

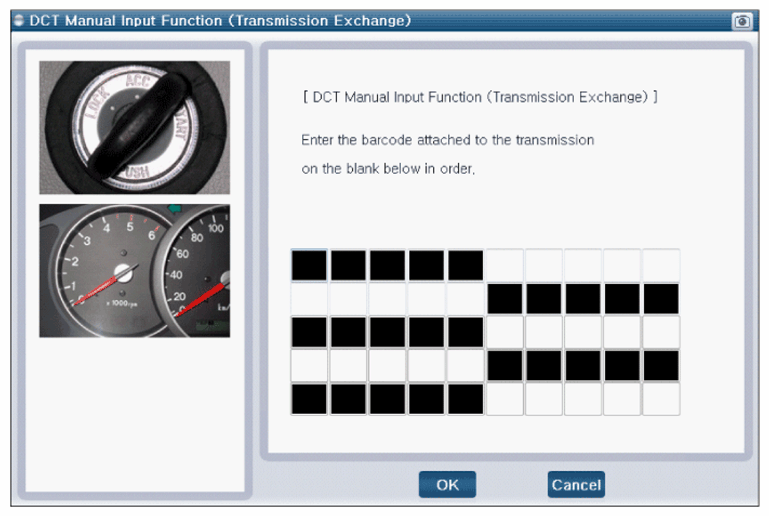

G12602119Courtesy of HYUNDAI MOTOR AMERICA
G12602120Courtesy of HYUNDAI MOTOR AMERICA
