Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: In case of replacing TCM or Clutch pack perform following procedures
  1. Perform "DCT Learning" in "Vehicle S/W Management" with GDS.
G12602068Courtesy of HYUNDAI MOTOR AMERICA

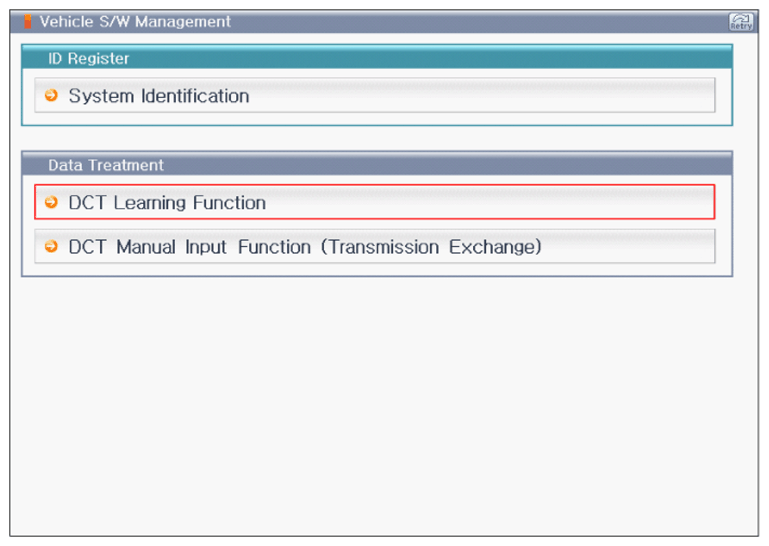

G12602069Courtesy of HYUNDAI MOTOR AMERICA

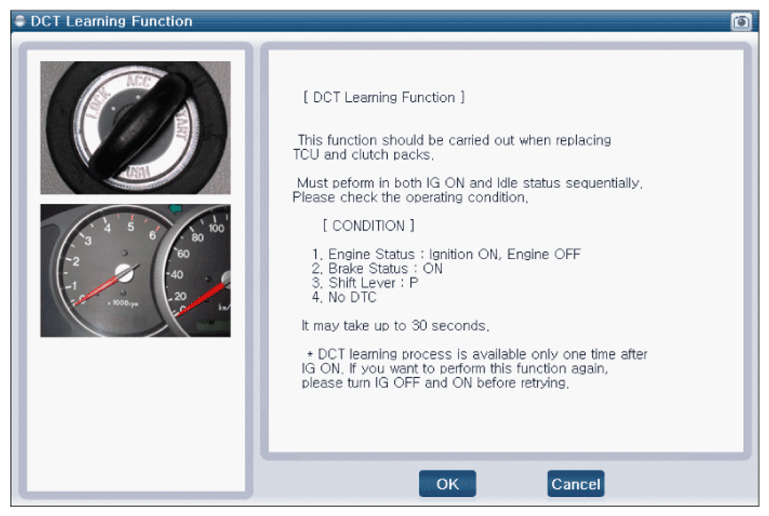

G12602070Courtesy of HYUNDAI MOTOR AMERICA

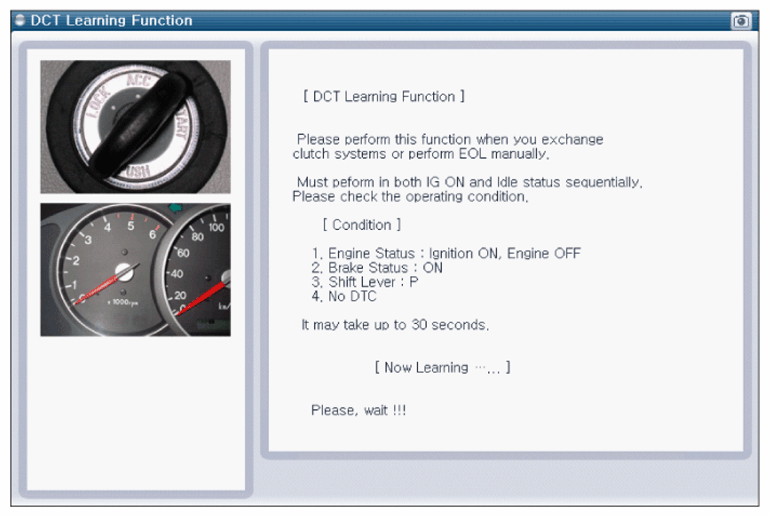

G12602071Courtesy of HYUNDAI MOTOR AMERICA

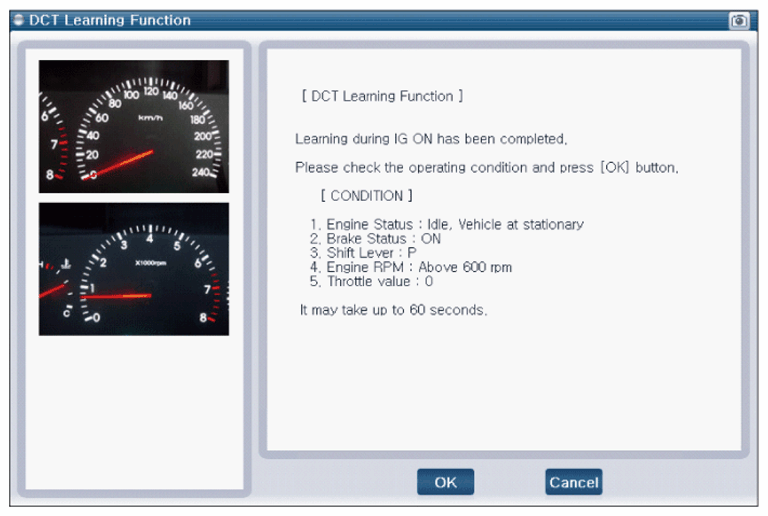

G12602072Courtesy of HYUNDAI MOTOR AMERICA

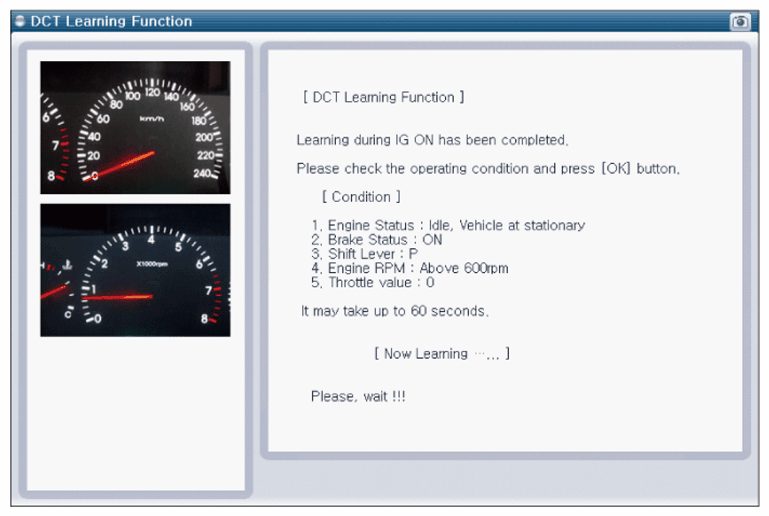

G12602073Courtesy of HYUNDAI MOTOR AMERICA

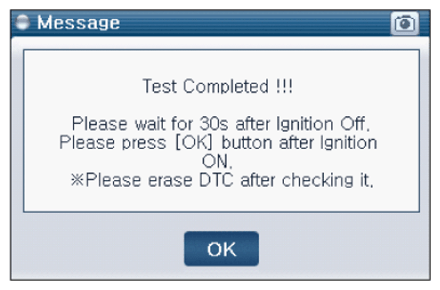

G12602074Courtesy of HYUNDAI MOTOR AMERICA
CAUTION: In case of replacing DCT perform following procedures;
  1. Perform "DCT Manual Input Function (Transmission Exchange)" in "Vehicle S/W Management" with GDS.

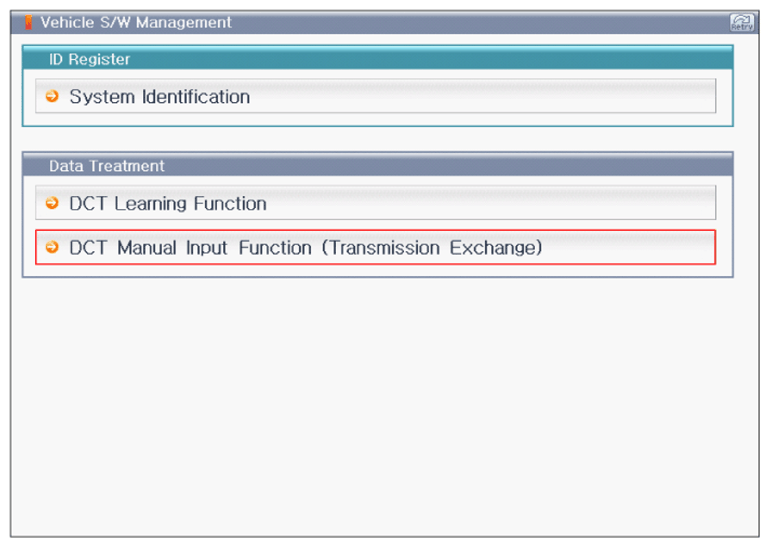

G12602075Courtesy of HYUNDAI MOTOR AMERICA

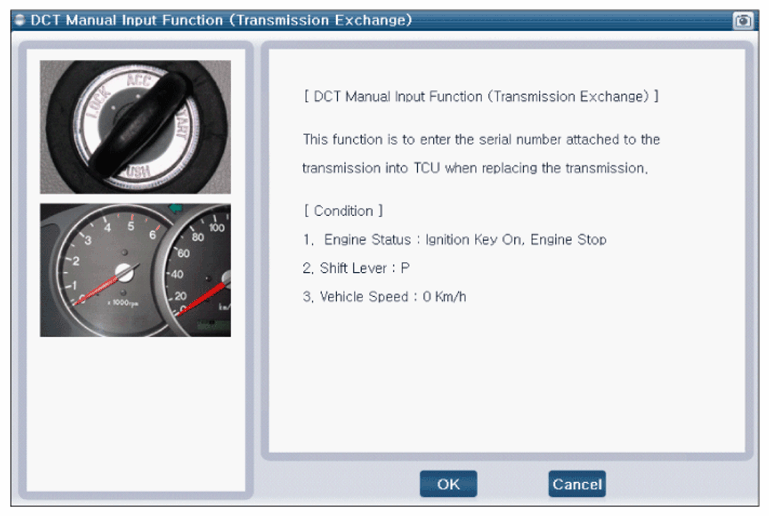

G12602076Courtesy of HYUNDAI MOTOR AMERICA

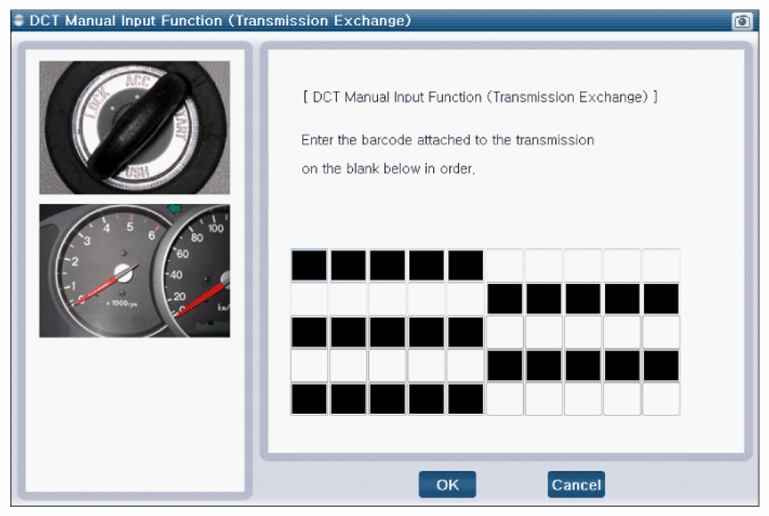

G12602077Courtesy of HYUNDAI MOTOR AMERICA

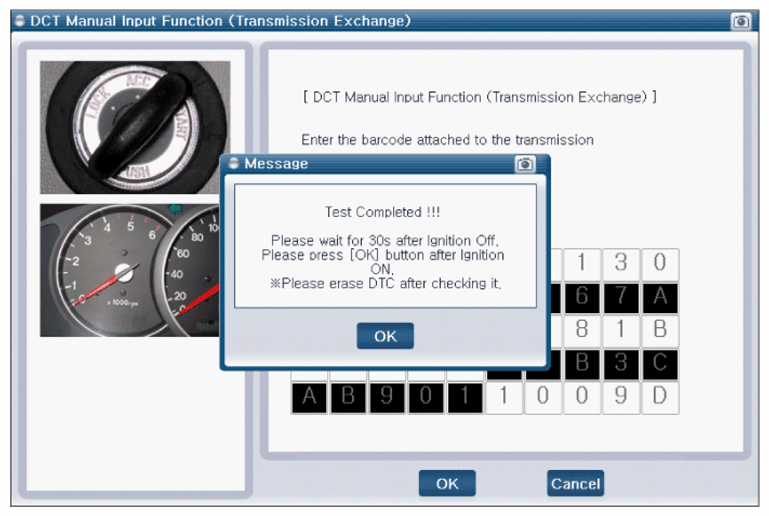

G12602078Courtesy of HYUNDAI MOTOR AMERICA
