Low Pressure Fuel Line [High Pressure Fuel Pump↔Fuel Tank]

WARNING: This page is about a different variant/trim than selected.

Release the residual pressure in fuel line.
(Refer to the Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Turn the ignition switch OFF, and then remove battery (-) terminal.
Remove the battery.
(Refer to Engine Electrical System - "BATTERY ")
Remove the air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")

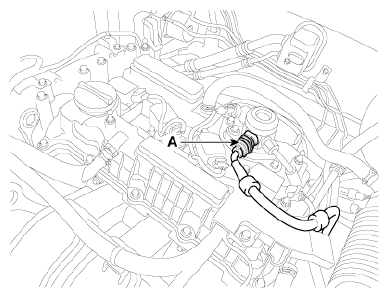

Disconnect the fuel feed tube quick-connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

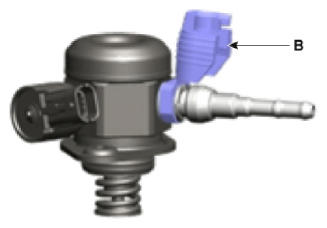

NOTE: Open the clamp cover (B) before disconnect the quick connector. (If the clip is applied)

Courtesy of KIA MOTORS AMERICA, INC.

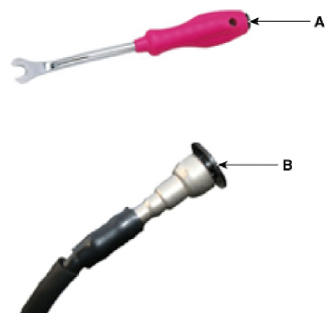

CAUTION: When removing the quick-connector with the clip removing tool (A), be careful not to damage the plastic clip (B).

If the clip is damaged, fuel line leak can be occurred due to a bad connection.

Courtesy of KIA MOTORS AMERICA, INC.

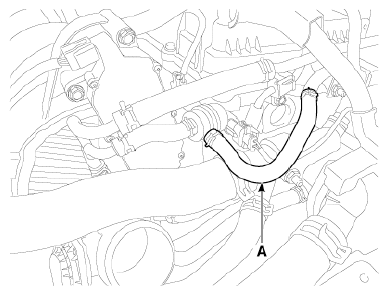

Disconnect the vapor hose (A) which is connected from the PCSV.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the center muffler assembly.
(Refer to Engine Mechanical System - "MUFFLER ")
Remove the fuel tank.
(Refer to Fuel Delivery System - "REMOVAL ")
Remove the front sub frame.
(Refer to Suspension System - "SUB FRAME ")

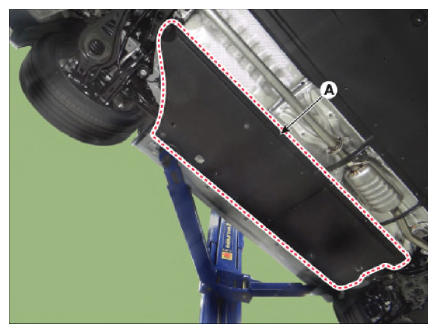

Remove the under cover [LH] (A) after loosening the mounting nuts.

Courtesy of KIA MOTORS AMERICA, INC.

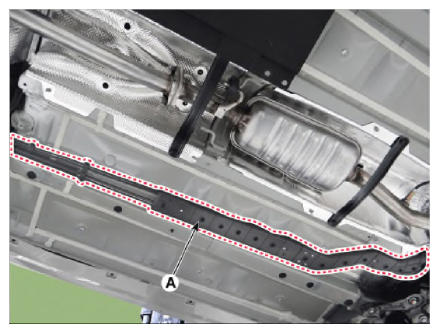

Remove the fuel line (A) after loosening the mounting bolts and bracket.

Courtesy of KIA MOTORS AMERICA, INC.
