Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Release the residual pressure in fuel line.

    (Refer to the Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
  3. Remove the rear seat cushion. (Refer to Body- "REAR SEAT ASSEMBLY ")

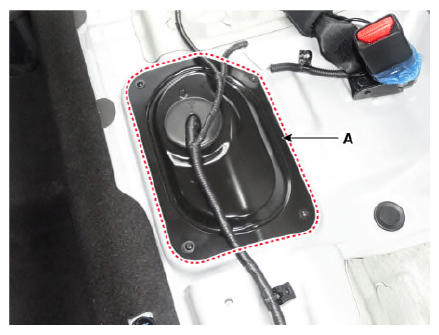

  4. Remove the fuel pump service cover (A) after loosening the mounting screws.
    G12932874Courtesy of KIA MOTORS AMERICA, INC.

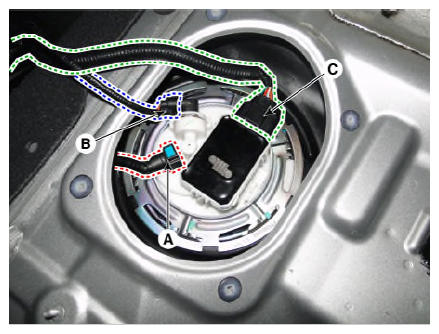

  5. Disconnect the fuel feed tube quick-connector (A), fuel pressure sensor connector (B) and fuel pump control module connector (C).
    G12932875Courtesy of KIA MOTORS AMERICA, INC.
  6. Lift the vehicle.
  7. Remove the center muffler assembly.

    (Refer to Engine Mechanical System - "MUFFLER ")

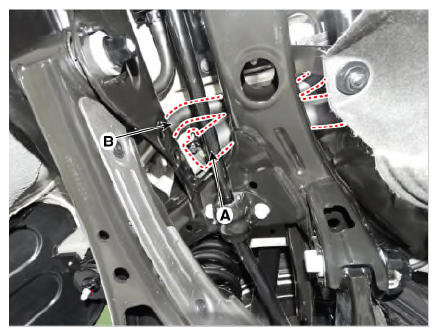

  8. Disconnect the fuel feed hose (A) and leveling hose (B).
    G12932876Courtesy of KIA MOTORS AMERICA, INC.

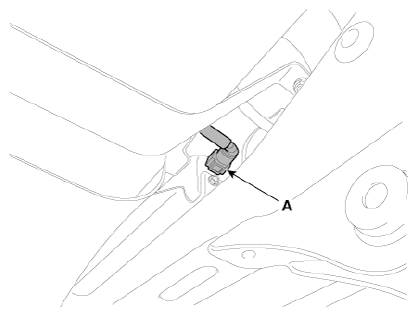

  9. Disconnect the vapor tube quick-connector (A).
    G12932877Courtesy of KIA MOTORS AMERICA, INC.

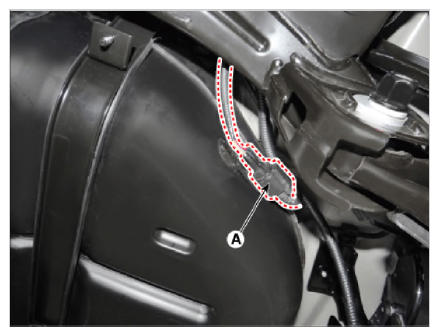

  10. Disconnect the fuel tank pressure sensor extension connector (A).
    G12932878Courtesy of KIA MOTORS AMERICA, INC.
  11. Support the fuel tank with a jack.

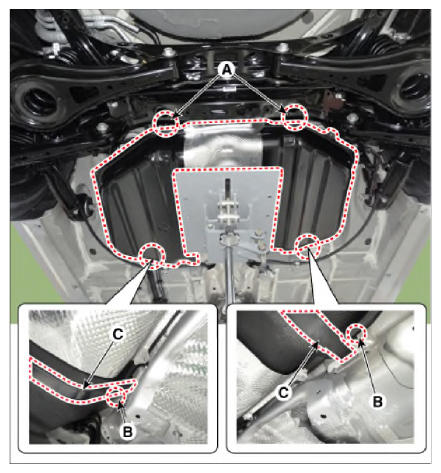

  12. After loosening the rear side fuel tank band mounting nut (A), remove the fuel tank band (C) from the gap (B) between front side fuel tank and body.

    Fuel tank band mounting nut:

    39.2 - 54.0 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb.ft)

    G12932879Courtesy of KIA MOTORS AMERICA, INC.

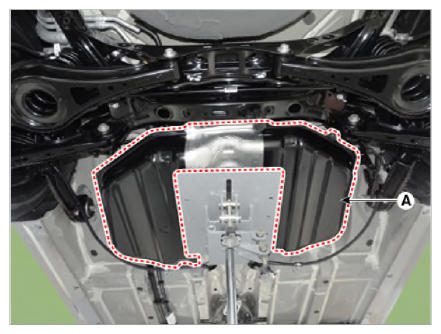

  13. Remove the fuel tank (A).
G12932880Courtesy of KIA MOTORS AMERICA, INC.
