Monitor KDS Data

  1. Ignition "OFF", connect KDS.
  2. Ignition "ON", select "Current Data" mode.
  3. Monitor the "Read Class Status" parameter on the KDS.

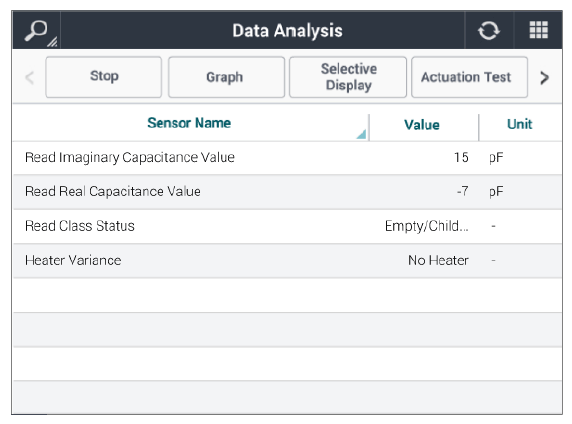

    G12905228Courtesy of KIA MOTORS AMERICA, INC.

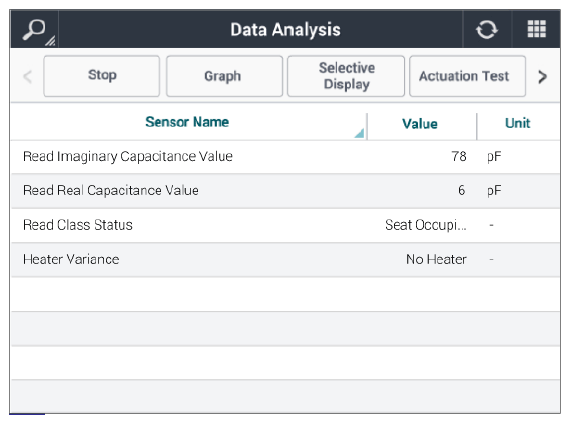

    G12905229Courtesy of KIA MOTORS AMERICA, INC.
  4. Has a problem been found?

    YES

    NO

    • Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
