Body Sensor Reset

  1. Ignition "OFF", connect KDS.
  2. Ignition "ON", select Passenger Occupant Detecting System and select "Body Sensor Reset" mode.
  3. And then press "ENTER"

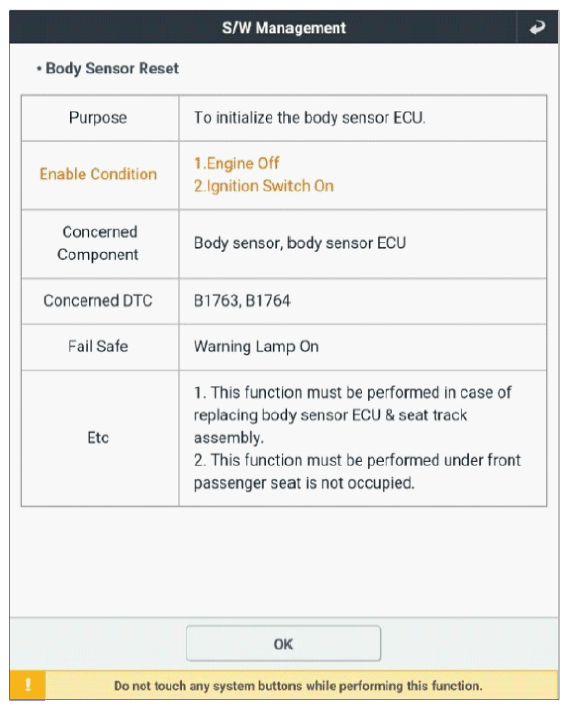

    G12905230Courtesy of KIA MOTORS AMERICA, INC.

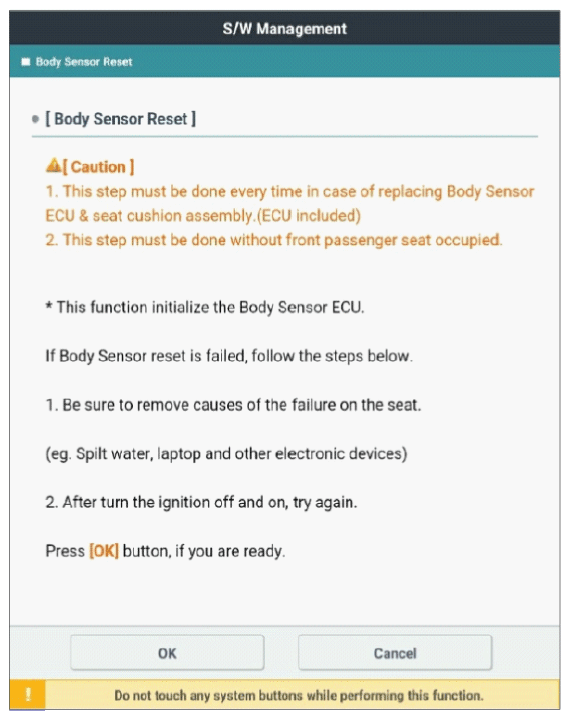

    G12905231Courtesy of KIA MOTORS AMERICA, INC.

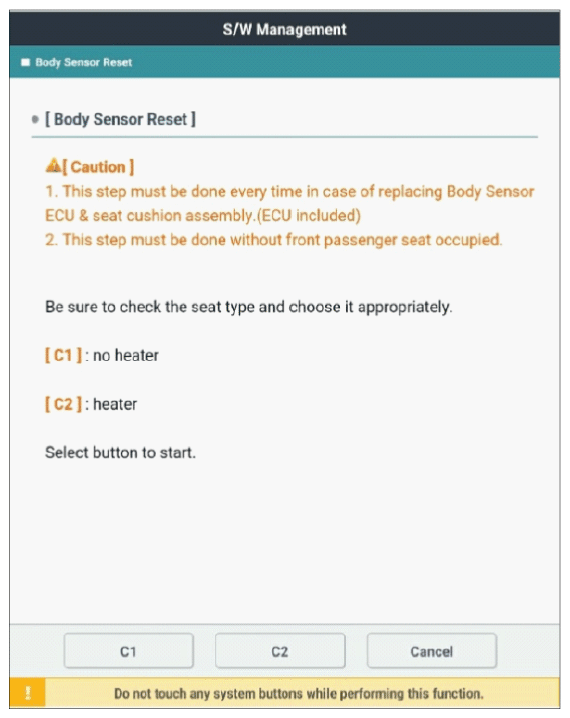

    G12905232Courtesy of KIA MOTORS AMERICA, INC.

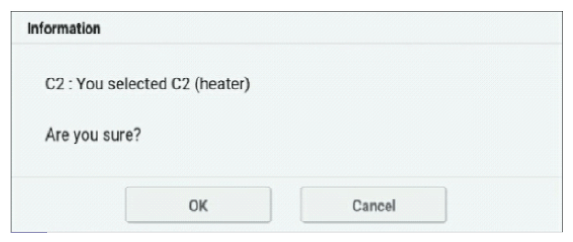

    G12905233Courtesy of KIA MOTORS AMERICA, INC.

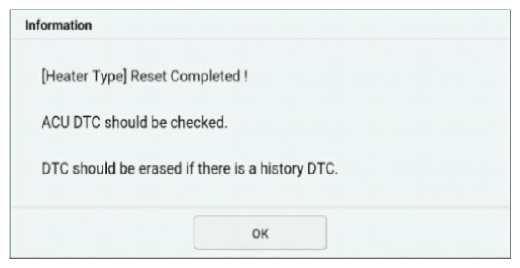

    G12491491Courtesy of KIA MOTORS AMERICA, INC.
  4. Turn Ignition "OFF" and then "ON"
  5. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.
  6. Clear all DTCs in the system with KDS.
  7. Re-check DTC in the system with KDS.
  8. Is DTC stored in the system?

    YES

    NO

    • Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
