Component Inspection

■ Perform Injector Actuation Test

1. Connect KDS/GDS to Data Link Connector (DLC).
2. Ignition "ON" & ENG "OFF"
3. Perform "ACTUATION TEST " for Injector.

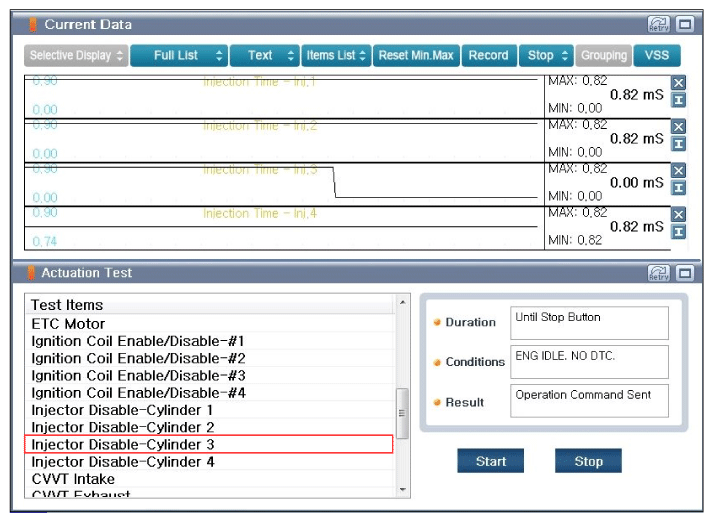

Fig 1: Screen Display - Injector Disable - Cylinder 3 Actuation Test

Courtesy of KIA MOTORS AMERICA, INC.

■ Check Injector performance

1. Ignition "OFF"
2. Connect VMI to KDS/GDS and select "Oscilloscope".
3. Connect Channel A positive probe to Pin No. 2 (High side) and Channel A negative probe to Pin No. 1 (Low side).
4. Connect CH AUX probe to control wire of Injector.
5. Warm up the engine to normal operating temperature.

   Specification:  Refer to Signal Waveform & Data below.

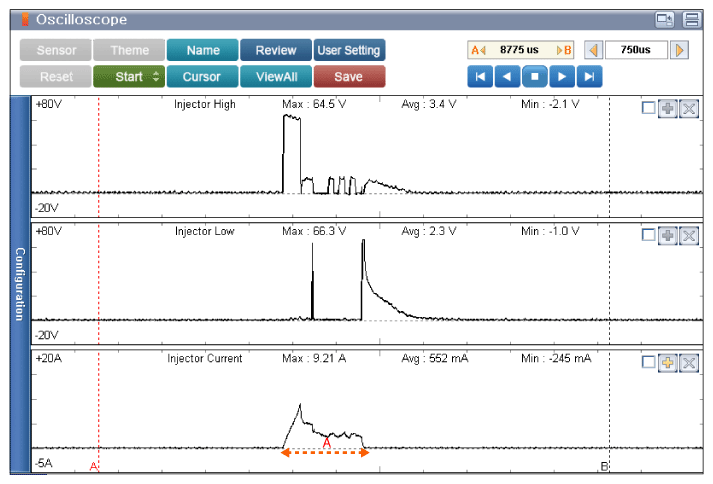

   Fig 2: Screen Display - Engine Idle After Warm Up

   Courtesy of KIA MOTORS AMERICA, INC.
   1. Fuel injection time - Approx. 1450μs

      CH. A - Injector Max 64.5V

      CH. AUX - Injector Current MAX 9.21A

   Fig 3: Screen Display - Fuel Injection (Approx. 2500RPM)

   Courtesy of KIA MOTORS AMERICA, INC.
   1. Fuel injection time - Approx. 900μs

      CH. A - Injector Max 64.9V

      CH. AUX - Injector Current MAX 9.15A

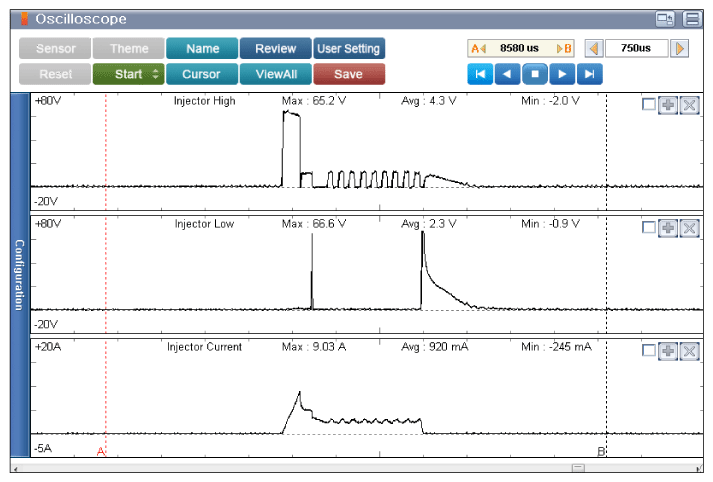

   Fig 4: Screen Display - Injector (Acceleration)

   Courtesy of KIA MOTORS AMERICA, INC.

   CH. A - Injector Max 65.2V

   CH. AUX - Injector Current MAX 9.09A

■ Check Injector performance

1. Ignition "OFF"
2. Disconnect Injector connector.
3. Measure resistance between Pin No. 2 (High side) terminal and Pin No. 1 (Low side) terminal of the Injector. (Component Side)

   Specification:  Approx. 1.40 Ω [25°C (77°F)]

   Fig 5: Screen Display - Resistance Of Injector

   Courtesy of KIA MOTORS AMERICA, INC.

■ Confirm Part Inspection

1. Does the Injector operate properly? (Check variation)

   YES

   • Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Carefully re-do this troubleshooting guide steps.
   • If problem still occurs, replace Injector and then go to "Confirm Part Inspection" procedure above.
