Actuation Test

  1. Using a KDS/GDS, Clear DTC.
  2. Ignition "ON" & Engine "ON".
  3. Confirm the Headlamp movement through the "Actuation Test" & "Current Data".
  4. Check for "Success" result of "Actuation Test".

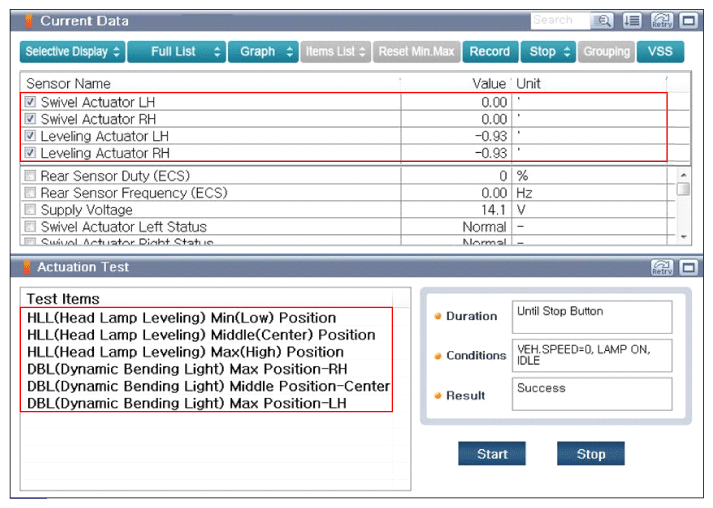

Fig 1: Display - Leveling Actuator LH Actuation Test
G11830260Courtesy of KIA MOTORS AMERICA, INC.
