Component Inspection

■ Perform High Pressure Fuel Pump Actuation Test

1. Connect KDS/GDS to Data Link Connector (DLC).
2. Ignition "ON" & ENG "OFF"
3. Perform "ACTUATION TEST " for High Pressure Fuel Pump.

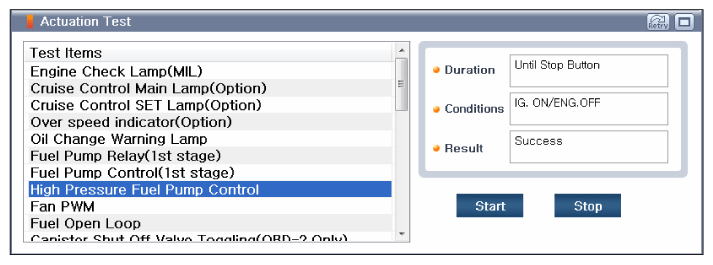

Fig 1: Screen Display - High Pressure Fuel Pump Control Actuation Test

Courtesy of KIA MOTORS AMERICA, INC.

■ Inspect High Pressure Fuel Pump

1. Ignition "OFF"
2. Disconnect High Pressure Fuel Pump connector.
3. Measure resistance between power and control terminal of the High Pressure Fuel Pump. (Component Side)

   Specification:  Approx. 0.6Ω at 30°C (86 °F)

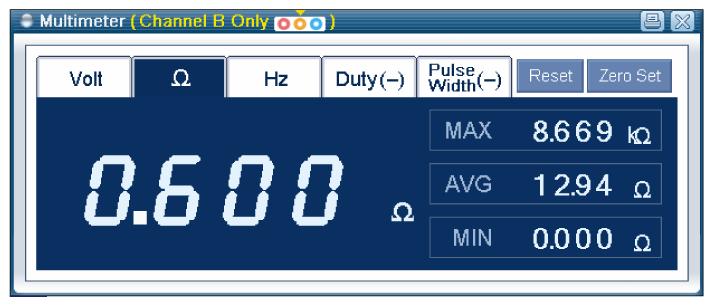

   Fig 2: Screen Display - Resistance Of FPR

   Courtesy of KIA MOTORS AMERICA, INC.

■ Check Fuel Pressure Regulator

Fuel Pressure Regulator performance check by measuring voltage and current.

1. Back probe and measure voltage by using and connecting channel A (+) voltage probe to High side and channel A (-) voltage prove to Low side.
2. Measure operation current by using Low Current Sensor Module.

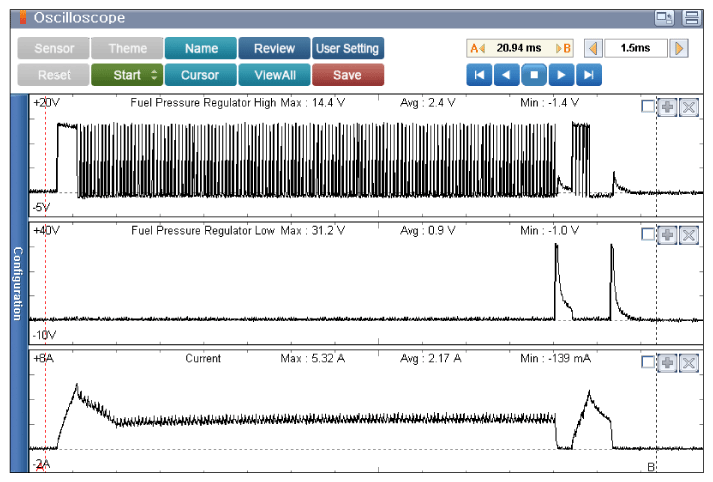

   Fig 3: Screen Display - Engine Idle After Warm Up

   Courtesy of KIA MOTORS AMERICA, INC.

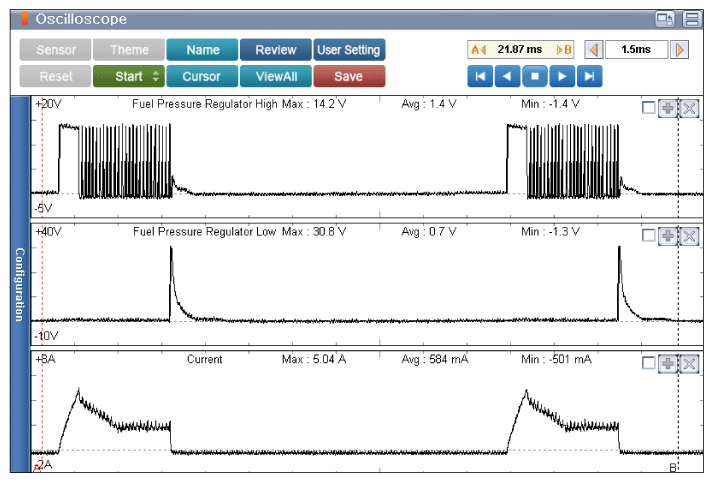

   Fig 4: Screen Display - Fuel Rail Pressure Sensor (Approx. 2000RPM)

   Courtesy of KIA MOTORS AMERICA, INC.

■ Confirm Part Inspection

1. Does the High Pressure Fuel Pump operate properly or is the measured value within specification? (Check variation)

   YES

   • Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
   • Carefully re-do this troubleshooting guide steps.

   NO

   • If problem still occurs, replace FPR and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
