Component Inspection

■ Perform RCVS Actuation Test

1. Connect KDS/GDS to Data Link Connector (DLC).
2. Ignition "ON" & ENG "OFF"
3. Perform "ACTUATION TEST " for RCVS.

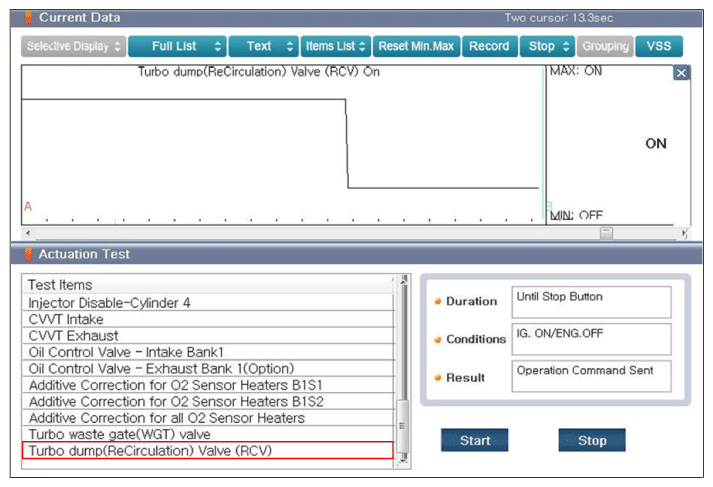

Fig 1: Screen Display - Actuation Test Of RCVS

Courtesy of KIA MOTORS AMERICA, INC.

■ RCVS Resistance Check

1. Ignition "OFF"
2. Disconnect RCVS connector.
3. Measure resistance between Pin No. 1 (Power) terminal and Pin No. 2 (Control) terminal of the RCVS. (Component Side)

   Specification:  Approx. 28.3 ~ 31.1 Ω (20°C (68°F)

4. Is the measured value within specification?

   YES

   • Go to next procedure.

   NO

   • If no problems were found with the circuits or connectors, replace RCVS and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

■ Turbo Charger Boost Sensor (PUT) Inspection

1. Ignition "OFF"
2. Connect KDS/GDS to Data Link Connector (DLC).
3. Ignition "ON" & Engine "ON"
4. Monitor following parameters in "Current Data  " with KDS/GDS.

   Specification:  Refer to Figure below

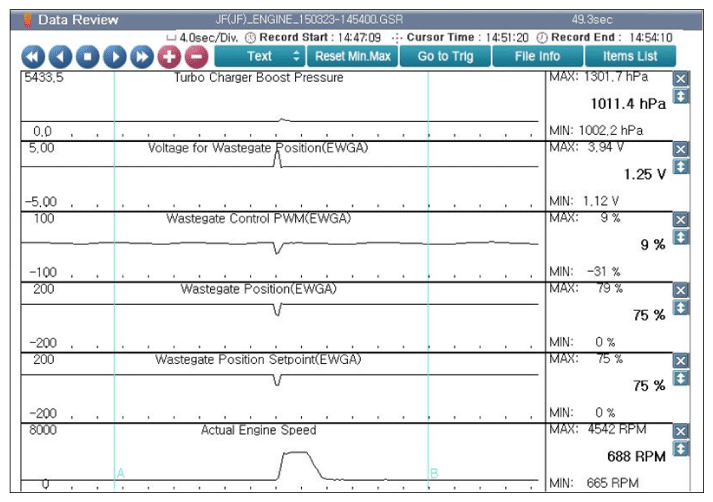

   Fig 2: Screen Display - Current Data Of EWGA Actuation At Acceleration

   Courtesy of KIA MOTORS AMERICA, INC.
5. Is the measured value within specification?

   YES

   • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
   • Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • If no problems were found with the circuits or connectors, replace boost pressure sensor and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
