Component Inspection

WARNING: This page is about a different variant/trim than selected.

■ Check Fuel Pressure Regulator

Connect KDS/GDS to Data Link Connector (DLC).
Ignition "ON" & ENG "OFF"
Perform "ACTUATION TEST " for FPR.

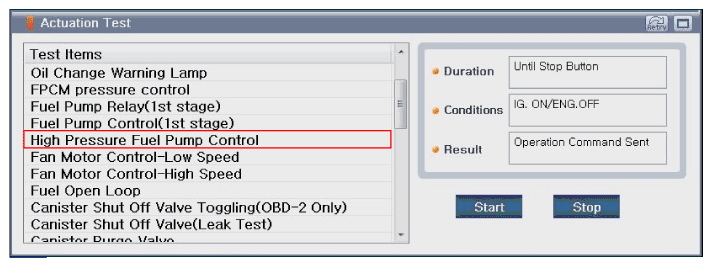

Fig 1: Screen Display - High Pressure Fuel Pump Control Actuation Test
Courtesy of KIA MOTORS AMERICA, INC.
Does the High Pressure Fuel Pump operate properly? (Check variation)
YES
- Replace High Pressure Fuel Pump, and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
