Component Inspection

■ Check PCSV

1. Connect KDS/GDS to Data Link Connector (DLC).
2. Ignition "ON" & ENG "OFF"
3. Perform "ACTUATION TEST " for PCSV.

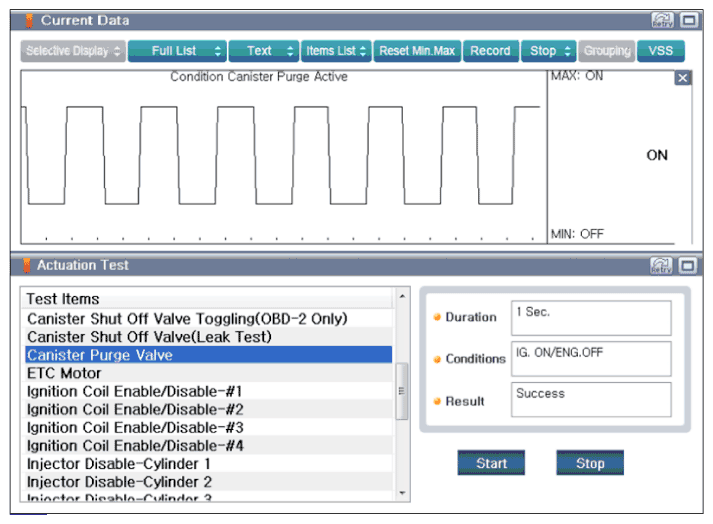

   Fig 1: Screen Display - Canister Purge Valve Actuation Test

   Courtesy of KIA MOTORS AMERICA, INC.
4. Ignition "OFF"
5. Disconnect PCSV connector.
6. Measure resistance between power and control terminal of the PCSV. (Component Side)

   Specification:  Approx. 2.0kΩ [20°C (68°F)]

   Fig 2: Screen Display - Resistance Of PCSV

   Courtesy of KIA MOTORS AMERICA, INC.

   YES

   • Go to "Check injector for normal operation" as follows.

   NO

   • Replace it, and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

■ Check injector for normal operation

1. Connect KDS/GDS to Data Link Connector (DLC).
2. Perform "ACTUATION TEST " for Injector.

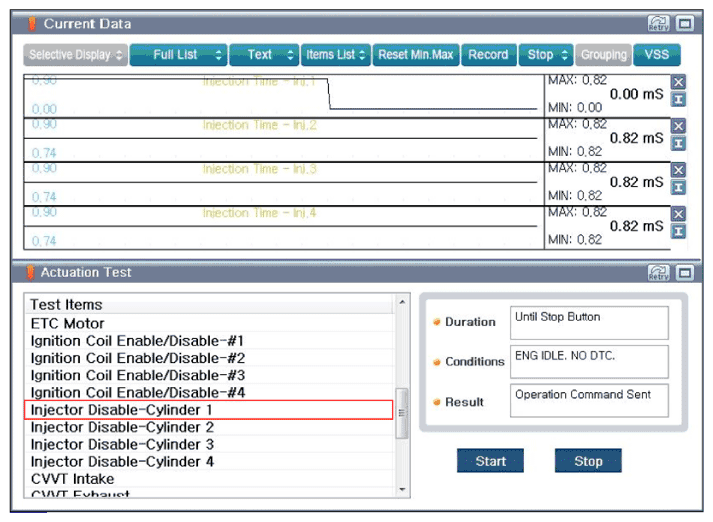

   Fig 3: Screen Display - Injector Disable (Cylinder 1, 2, 3, 4 Actuation Test)

   Courtesy of KIA MOTORS AMERICA, INC.
3. Check its RPM decrease when doing the injector's actuation test.
4. Is there any cylinder with no change in RPM or only a small change in RPM?

   YES

   • Replace injector, and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
