Component Inspection

■ Perform ETC Motor Actuation Test

1. Connect KDS/GDS to Data Link Connector (DLC).
2. Ignition "ON" & ENG "OFF"
3. Perform "ACTUATION TEST " for ETC Motor.

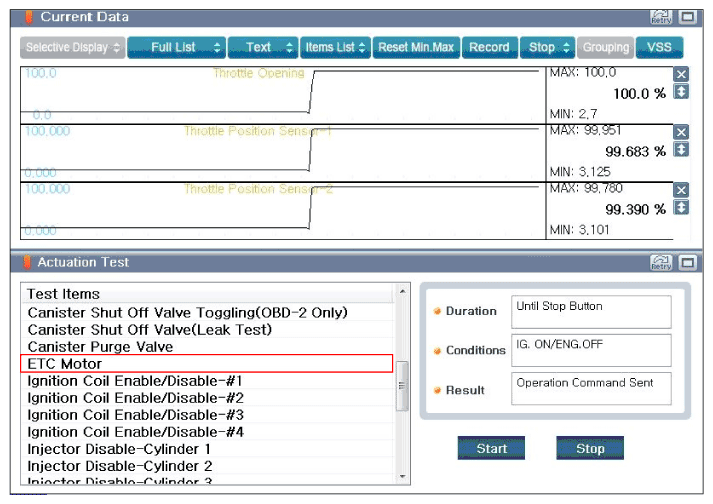

   Fig 1: Screen Display - Actuation Test (ETC Motor)

   Courtesy of KIA MOTORS AMERICA, INC.

■ Inspection ETC Motor

1. Ignition "OFF"
2. Disconnect ETC Motor connector.
3. Measure resistance between power and control terminal of the ETC Motor. (Component Side)

   Specification:  Approx. 2 ~ 3Ω [20°C (68 °F)]

   Fig 2: Screen Display - Resistance Value

   Courtesy of KIA MOTORS AMERICA, INC.

■ Confirm Part Inspection

1. Does the ETC Motor operate properly? (Check variation)

   YES

   • Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Carefully re-do this troubleshooting guide steps.
   • If problem still occurs, replace ETC Motor and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
