Component Inspection

■ Perform OCV Actuation Test

1. Connect KDS/GDS to Data Link Connector (DLC).
2. Ignition "ON" & ENG "OFF"
3. Perform "ACTUATION TEST " for OCV.

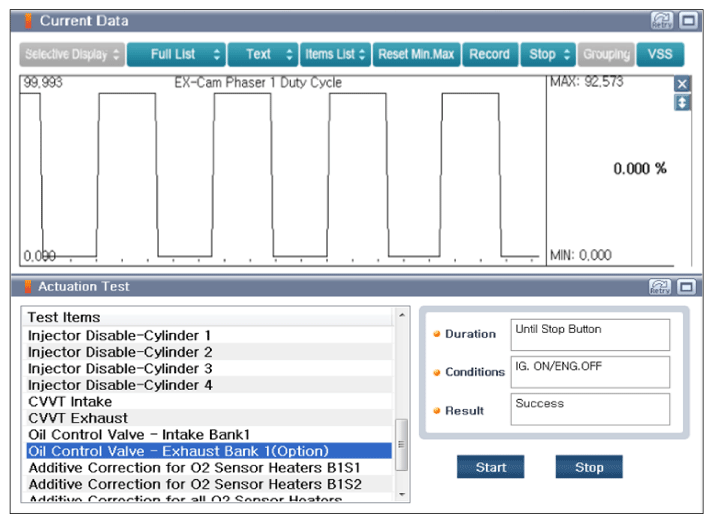

   Fig 1: Display - Oil Control Valve Actuation Test Screen (Exhaust Bank 1)

   Courtesy of KIA MOTORS AMERICA, INC.

■ Inspect OCV

1. Ignition "OFF"
2. Disconnect OCV connector.
3. Measure resistance between Pin No. 2 (Power) terminal and Pin No. 1 (Control) terminal of the OCV#2. (Component Side)

   Specification:  Approx. 10Ω at 30°C (86 °F)

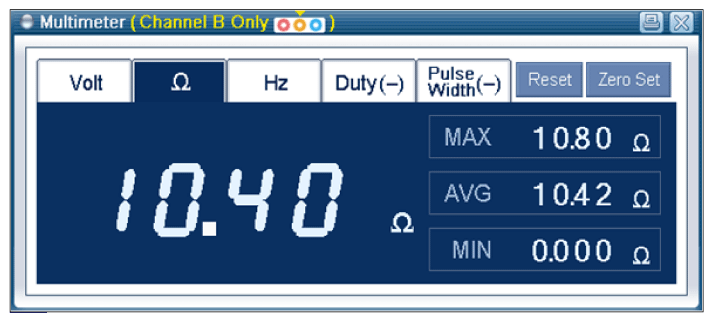

   Fig 2: Display - OCV-EX Resistance Screen

   Courtesy of KIA MOTORS AMERICA, INC.

■ Confirm Part Inspection

1. Does the OCV operate properly and is the measured resistance within specification? (Check variation)

   YES

   • Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Carefully re-do this troubleshooting guide steps.
   • If problem still occurs, replace OCV and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
