Main Crash Pad Replacement

CAUTION:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Put on gloves to protect your hands.
  1. Remove the following items.
    1. Front seat

      Refer to FRONT SEAT .

    2. Front pillar trim

      Refer to Front Pillar Trim Replacement .

    3. Floor console assembly

      Refer to CONSOLE .

    4. Front door scuff trim

      Refer to Door Scuff Trim Replacement .

    5. Cowl side trim

      Refer to Cowl Side Trim Replacement .

    6. Crash pad side cover
    7. Crash pad lower panel
    8. Crash pad garnish (LH, RH)
    9. Cluster fascia panel & Cluster assembly
    10. Heater control unit
    11. Center fascia upper panel
    12. Audio assembly
    13. Glove box & Glove box housing
    14. Steering column

    Refer to STEERING COLUMN AND SHAFT .

  2. After loosening the mounting screws, then remove the center fascia lower panel (A).
    Fig 1: Center Fascia Lower Panel
    G07380362Courtesy of KIA MOTORS AMERICA, INC.
  3. Using a screwdriver or remover, remove the center speaker grille (A).
    Fig 2: Center Speaker Grille
    G07380363Courtesy of KIA MOTORS AMERICA, INC.
  4. After loosening the mounting screws, then remove the center speaker (A).
  5. Disconnect the center speaker connector (B).
    Fig 3: Center Speaker & Connector
    G07380364Courtesy of KIA MOTORS AMERICA, INC.
  6. Disconnect the passenger's airbag connector (A).
  7. Loosen the mounting bolts.
    Fig 4: Passenger's Airbag Connector
    G07380365Courtesy of KIA MOTORS AMERICA, INC.
  8. Using a screwdriver or remover, remove the photo sensor (A).
  9. Disconnect the photo sensor connector (B).
    Fig 5: Photo Sensor & Connector
    G07380366Courtesy of KIA MOTORS AMERICA, INC.
  10. Disconnect the side speaker connector (A).

    (LH)

    Fig 6: Side Speaker Connector (LH)
    G07380367Courtesy of KIA MOTORS AMERICA, INC.

    (RH)

    Fig 7: Side Speaker Connector (RH)
    G07380368Courtesy of KIA MOTORS AMERICA, INC.

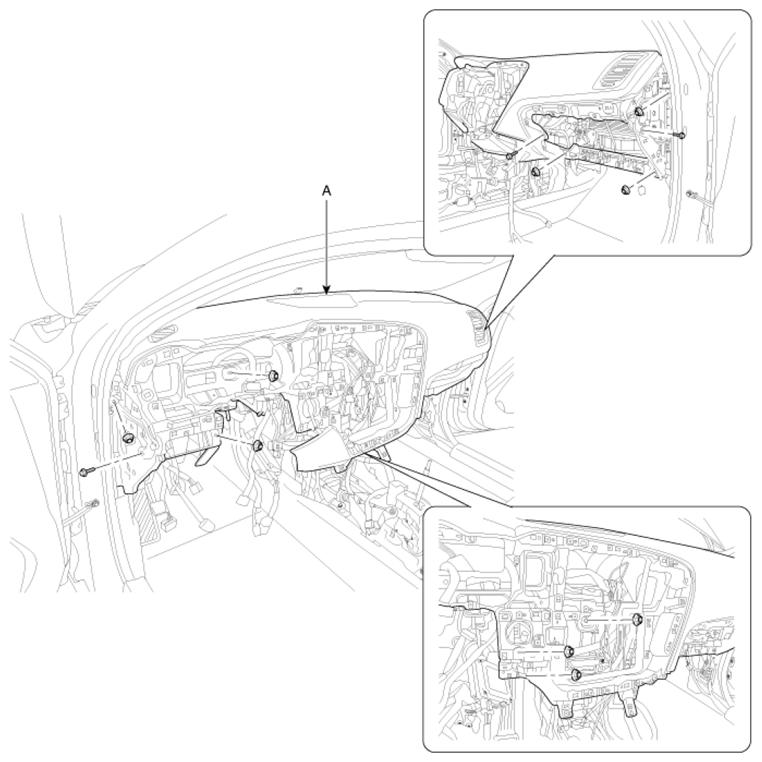

  11. After loosening the mounting bolts and nuts, then remove the main crash pad assembly (A).
    Fig 8: Main Crash Pad Assembly
    G07380369Courtesy of KIA MOTORS AMERICA, INC.
  12. Installation is the reverse of removal.
NOTE:
  • Make sure the crash pad fits onto the guide pins correctly.
  • Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
  • Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
  • Enter the anti-theft code for the radio, then enter the customer's radio station presets.
