Brake Booster: Removal

  1. Disconnect the vacuum hose (B) from the brake booster (A).
  2. Remove the master cylinder (C). Refer to MASTER CYLINDER REMOVAL .

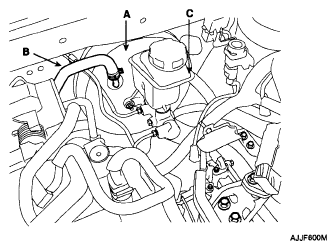

    Fig 1: Identifying Vacuum Hose, Brake Booster And Master Cylinder
    G04863161Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the clevis pin (A) and snap pin (B).
    Fig 2: Clevis Pin, Snap Pin And Nuts With Torque Specifications
    G04863162Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the four booster mounting nuts (C).
  5. Remove the brake booster (A) from the engine compartment.
    Fig 3: Identifying Brake Booster
    G04805820Courtesy of KIA MOTORS AMERICA, INC.
