Disc Plate: Installation

Install the anti-squeak caps.
Position the caliper on the steering knuckle and install the caliper bolts and tighten.
Tightening torque: 39~49 N.m (4.0~5.0 kg/cm, 29~36 lb-ft)

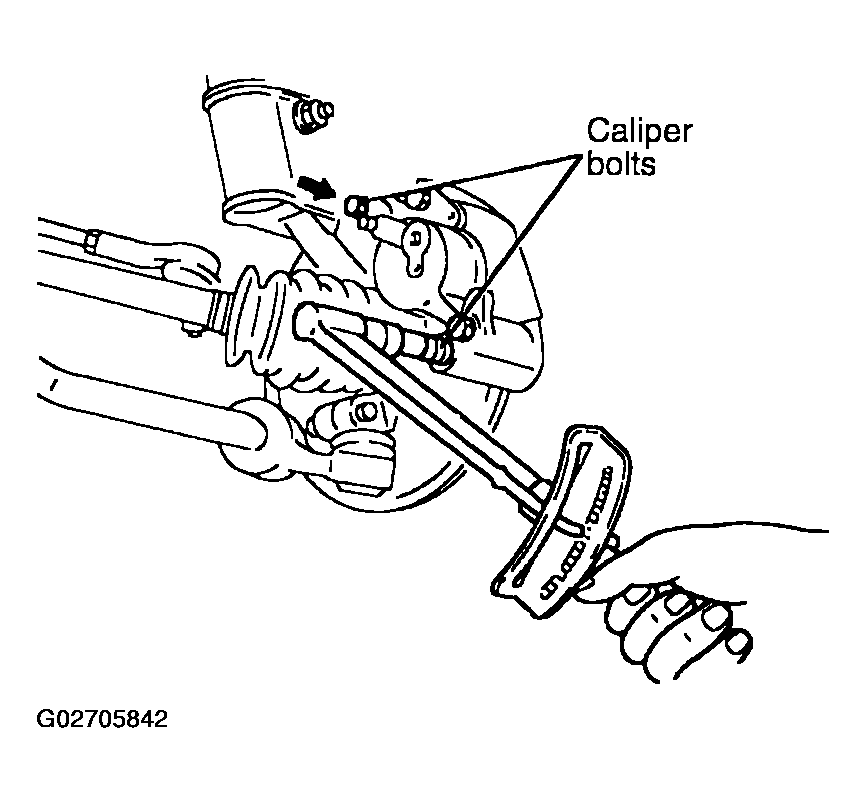

Fig 1: Tightening Caliper Bolts
Connect the caliper brake hose. Be sure to use new seal washers. Tighten the caliper brake hose bolt.
Tightening torque: 22~29 N.m (2.2~3.0 kg/cm, 16~22 lb-ft)

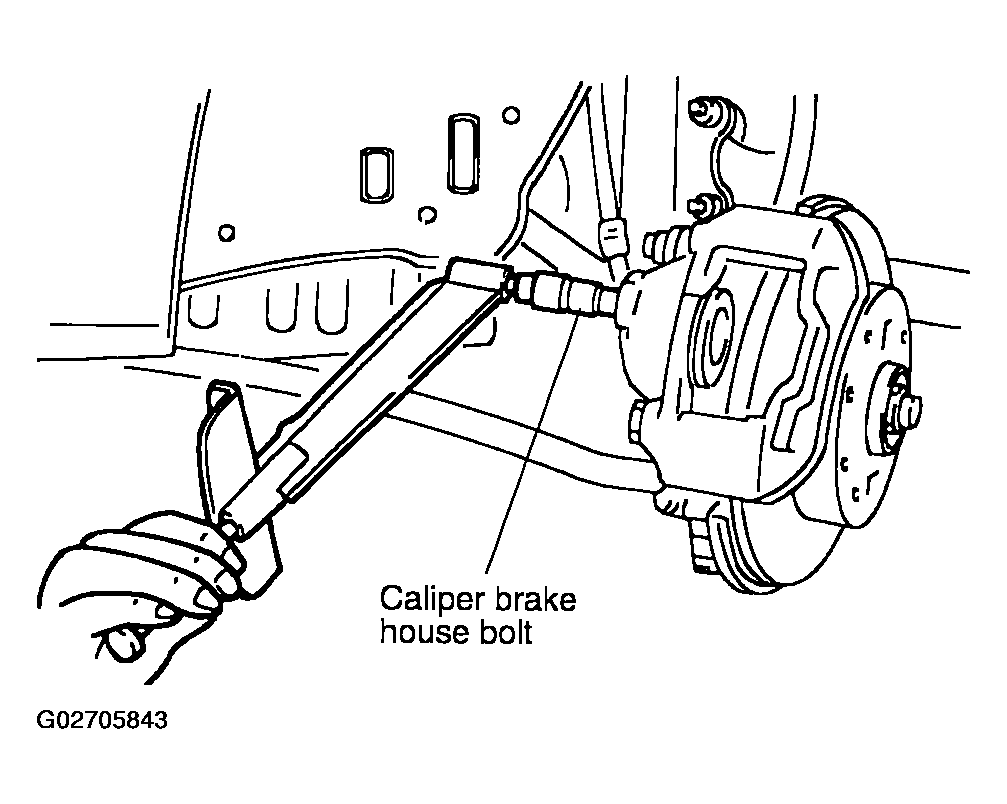

Fig 2: Connecting Caliper Brake Hose
Install the brake pads.
Bleed the brakes. Refer to AIR BLEEDING .
