Air Bleeding

  1. Jack up the vehicle and support it with a safety stands.
    CAUTION: The brake fluid reservoir must be kept 3/4 full during air bleeding.
  2. Remove the bleeder cap and attach a vinyl hose to the bleeder plug.
  3. Place the other end of the vinyl tube in a clear container.
  4. One person should depress the brake pedal a few times, and then hold it in the depressed position.
  5. A second person should loosen the bleeder screw, drain out the fluid, and retighten the screw with the SST  .

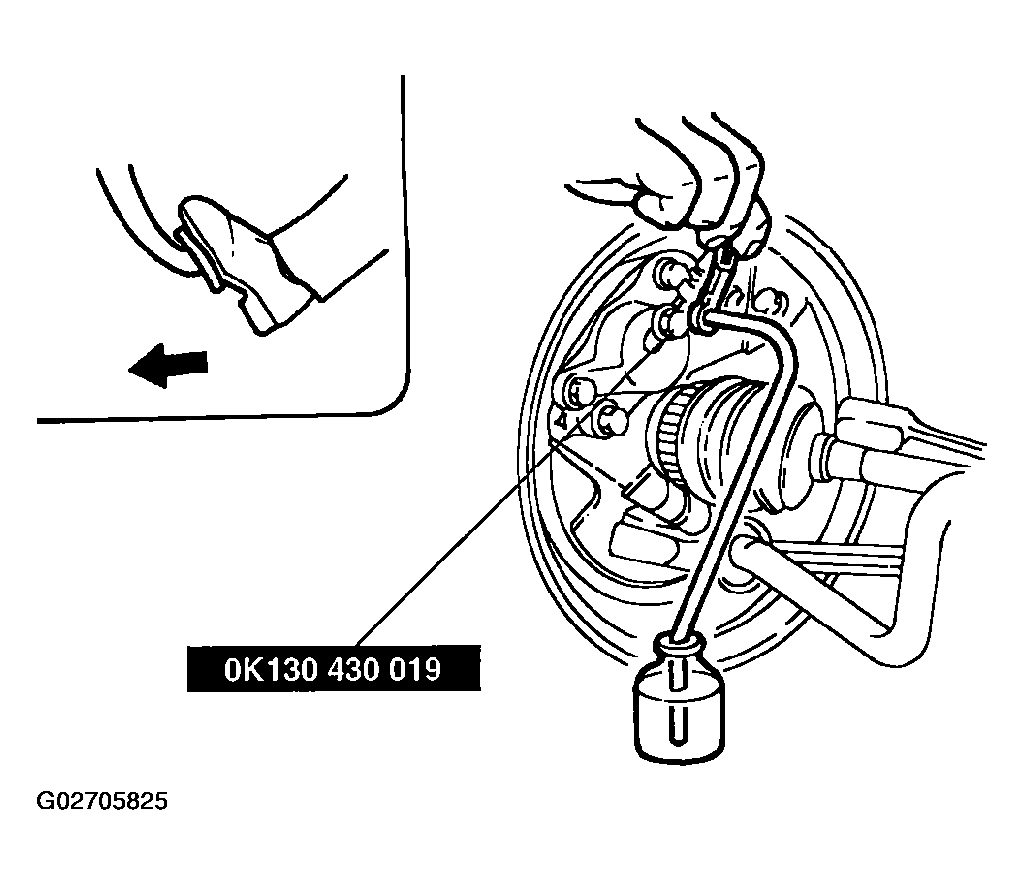

    Fig 1: Bleeding Brake Lines (1 Of 2)
    G02705825
    CAUTION: Be sure the pedal remains depressed until the bleed screw is tightened.
  6. Repeat steps  4 and  5 until no air bubbles are seen.

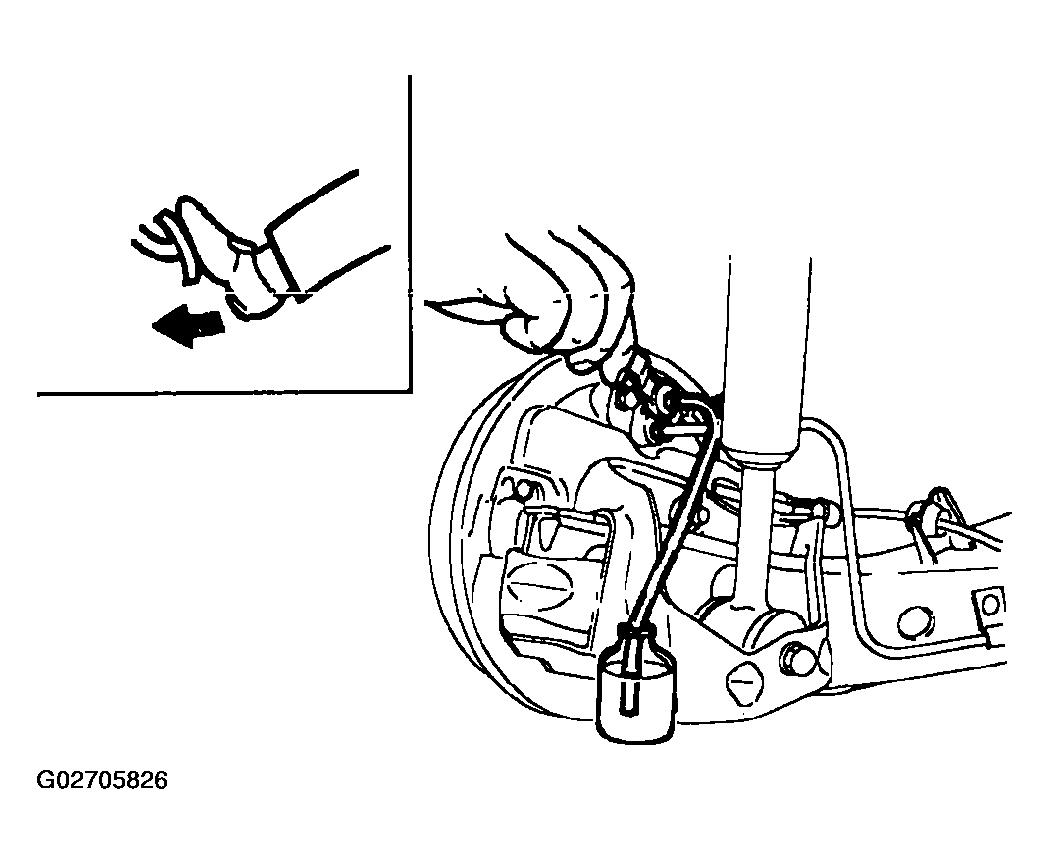

    Fig 2: Bleeding Brake Lines (2 Of 2)
    G02705826
  7. Check for the correct brake operation.
  8. Verify that there is no fluid leakage. Clean away any spilled fluid with rags.
  9. After bleeding the air, add a brake fluid to the reservoir up to the specified level.

    Tightening torque: 5.9~8.8 N.m (60~90 kg-cm, 52~78 lb-in)

    NOTE: Air bleeding must be started from the bleeder screw furthest from the master cylinder.
