Engine Assembly: Removal

WARNING: This page is about a different car, the 2023 Jeep Grand Wagoneer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

If the original engine has experienced a catastrophic failure or an individual failure with the piston, cylinder bore, engine block, valve or valve seat, the intake manifold MUST be replaced with a new manifold.

  1. Drain the engine oil. Refer to ENGINE OIL CHANGE .
  2. Remove the starter. Refer to STARTER, REMOVAL AND INSTALLATION .
  3. Remove the transmission inspection and structural dust covers. Refer to COVER, STRUCTURAL DUST, REMOVAL AND INSTALLATION .
    GC0185866Courtesy of CHRYSLER GROUP, LLC
    1 - Flexplate to Torque Converter Bolt
  4. Remove the flexplate to torque converter bolts.

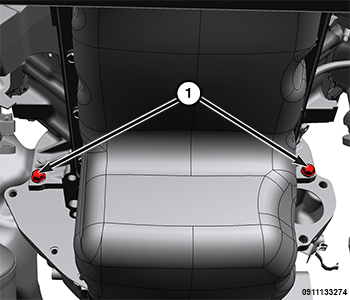

    GC0185621Courtesy of CHRYSLER GROUP, LLC
    1 - Oil Pan to Transmission Bolts
  5. Remove both the left and right side oil pan to transmission bolts.
  6. Remove the body. Refer to BODY, REMOVAL AND INSTALLATION .
  7. Remove the front bumper reinforcement. Refer to REINFORCEMENT, BUMPER, FRONT, REMOVAL AND INSTALLATION .
  8. Remove the generator. Refer to GENERATOR, REMOVAL AND INSTALLATION .
  9. Remove the intake manifold. Refer to MANIFOLD, INTAKE, REMOVAL AND INSTALLATION .
  10. Disconnect the oil cooler coolant hose from the left side of oil cooler.

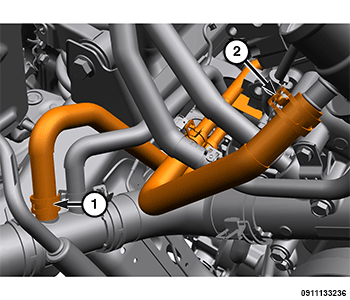

    GC0187586Courtesy of CHRYSLER GROUP, LLC
    1 - Transmission Heater Hose to Lower Radiator Hose
    2 - Transmission Heater Hose to Thermostat Housing
  11. Disconnect the transmission heater hoses from the thermostat housing, lower radiator hose, and right side engine mount.
  12. Disconnect the upper radiator hose from the thermostat housing.

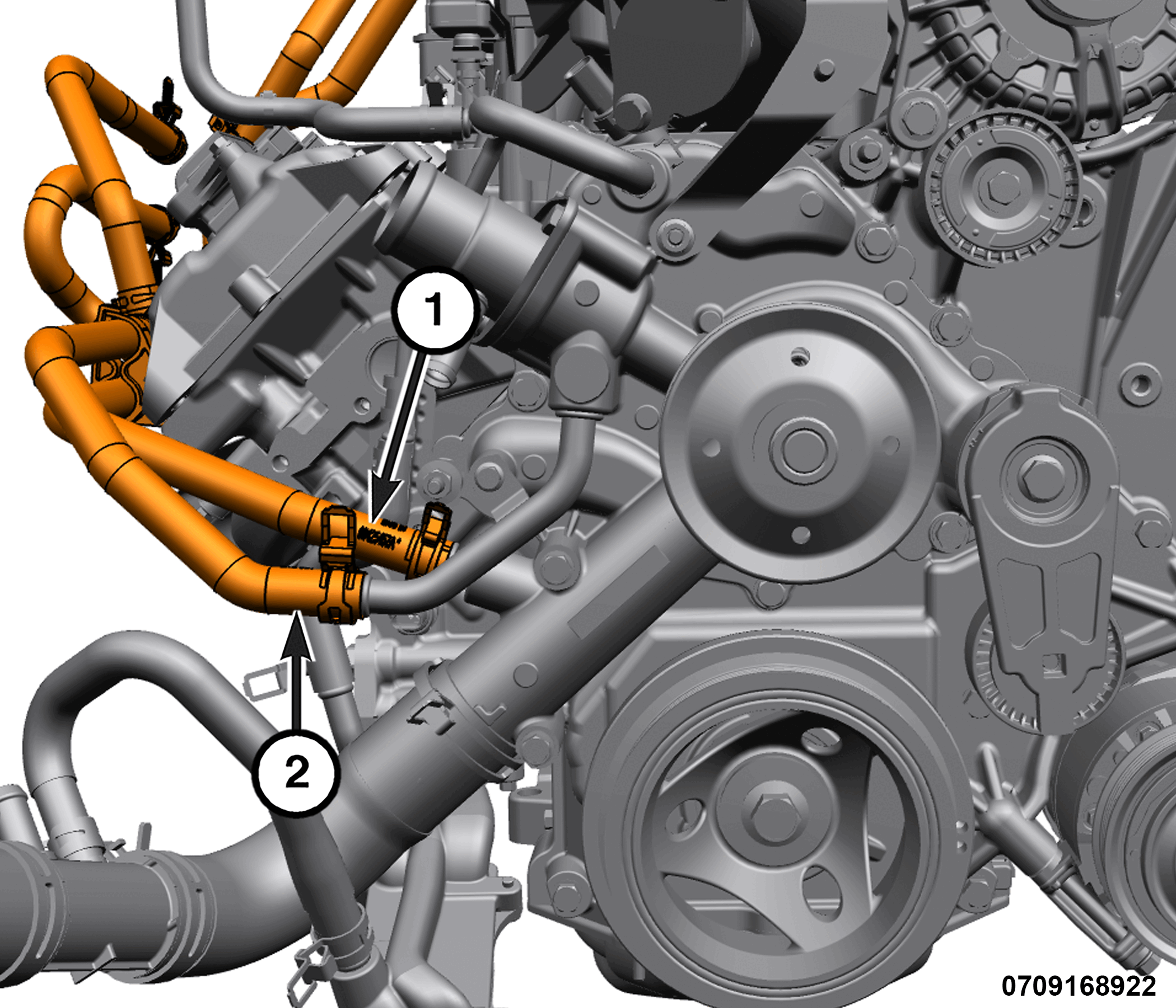

    GC0204144Courtesy of CHRYSLER GROUP, LLC
    1 - Heater Return Hose
    2 - Heater Supply Hose
  13. Disconnect the heater hoses from the water pump and the right side cylinder head cover.

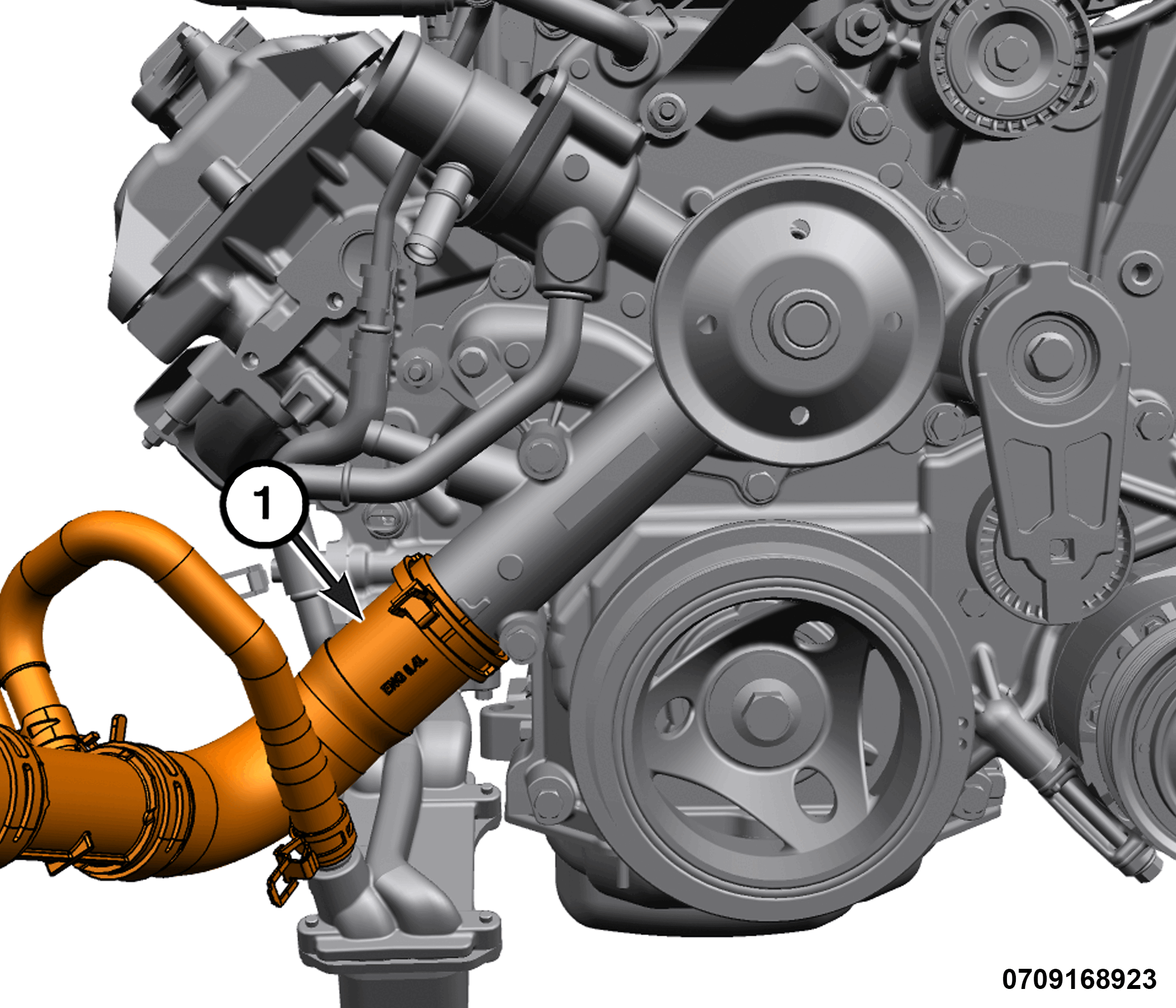

    GC0205165Courtesy of CHRYSLER GROUP, LLC
    1 - Lower Radiator Hose
  14. Disconnect the lower radiator hose from the water pump and engine oil cooler and remove the coolant hose assembly.
  15. Detach the degasser hose retainer from right side wire harness on cylinder head cover.

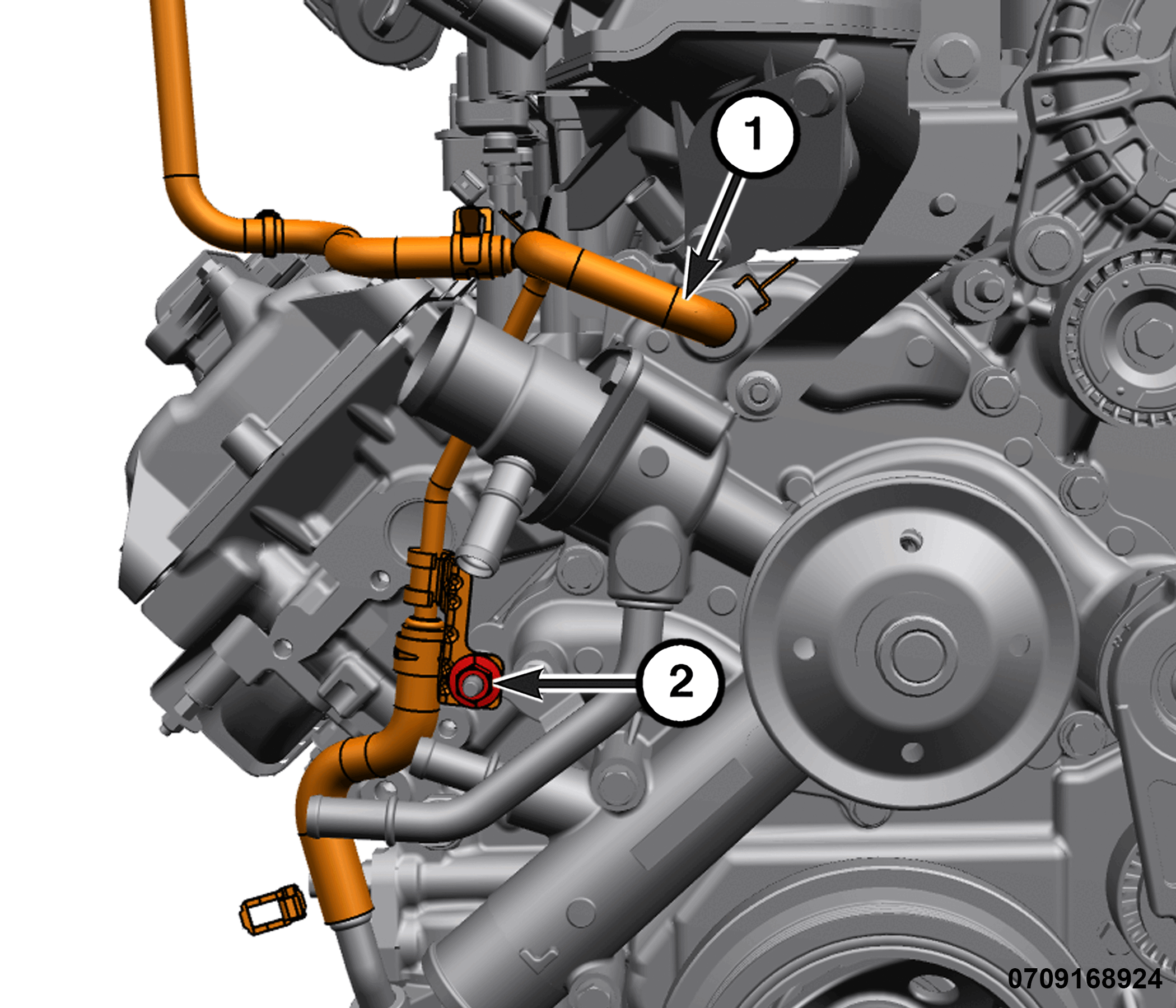

    GC0204844Courtesy of CHRYSLER GROUP, LLC
    1 - Coolant Hose
    2 - Oil Cooler Coolant Tube Nut
  16. Disconnect the coolant hose.
  17. Remove the oil cooler coolant tube nut and the oil cooler coolant tube.
  18. Disconnect the left upstream Oxygen (O2) sensor wire harness connector and detach wire harness retainer.
  19. Disconnect the left downstream O2 sensor wire harness connector.

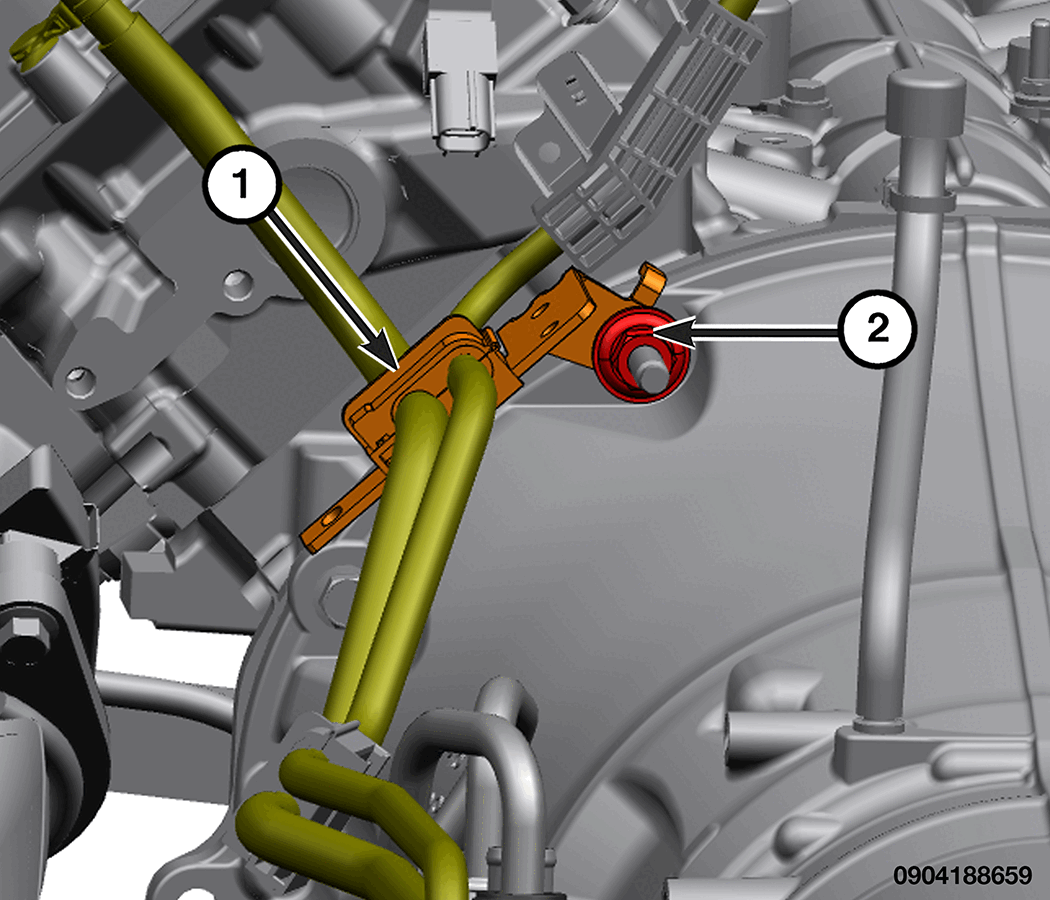

    GC0204970Courtesy of CHRYSLER GROUP, LLC
    1 - Fuel Line/Fuel Vapor Line Bracket M10 Nut
    2 - Fuel Line/Fuel Vapor Line Bracket
  20. Remove the fuel line/fuel vapor line bracket M10 nut and position aside the fuel line/fuel vapor line bracket.

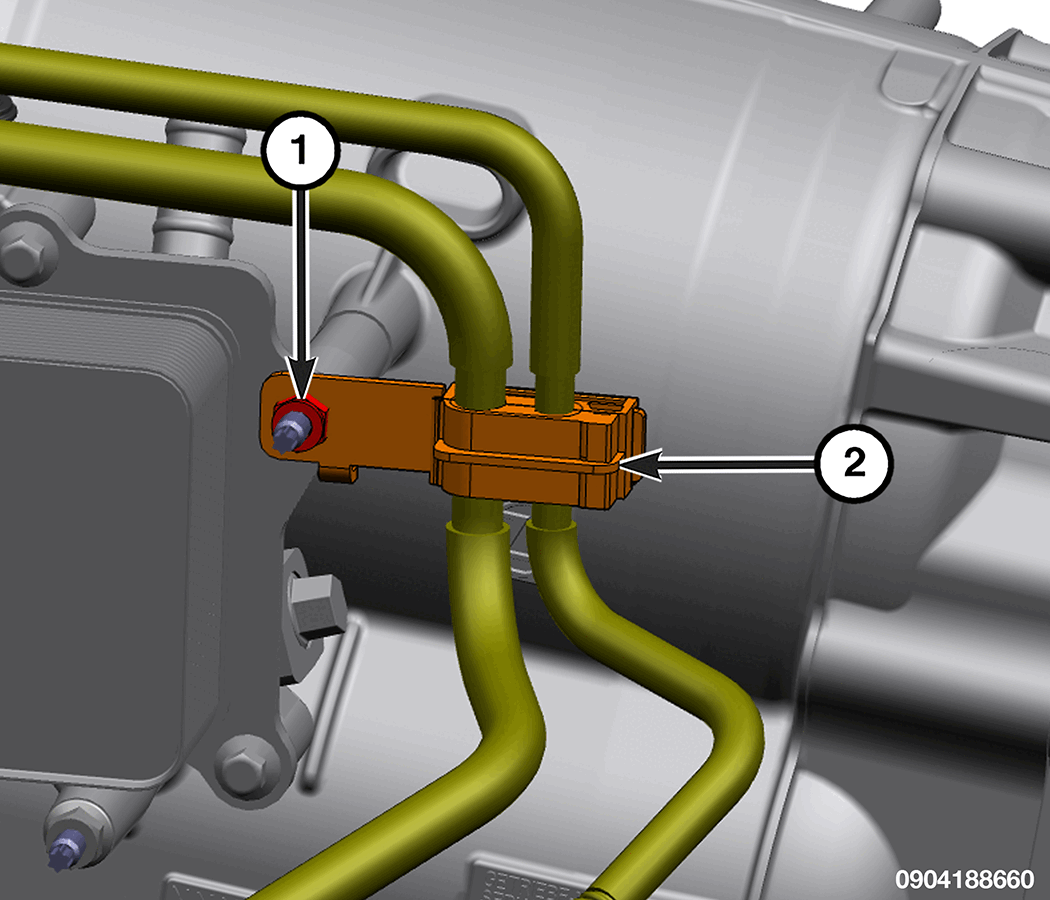

    GC0204687Courtesy of CHRYSLER GROUP, LLC
    1 - Fuel Line/Fuel Vapor Line to The Transmission Heat Exchanger M8 Nut
    2 - Fuel Line/Fuel Vapor Line Bracket
  21. Remove the fuel line/fuel vapor line to the transmission heat exchanger M8 nut and position aside the fuel line/fuel vapor line bracket.
  22. Detach the fuel and vapor line retainers (left side).

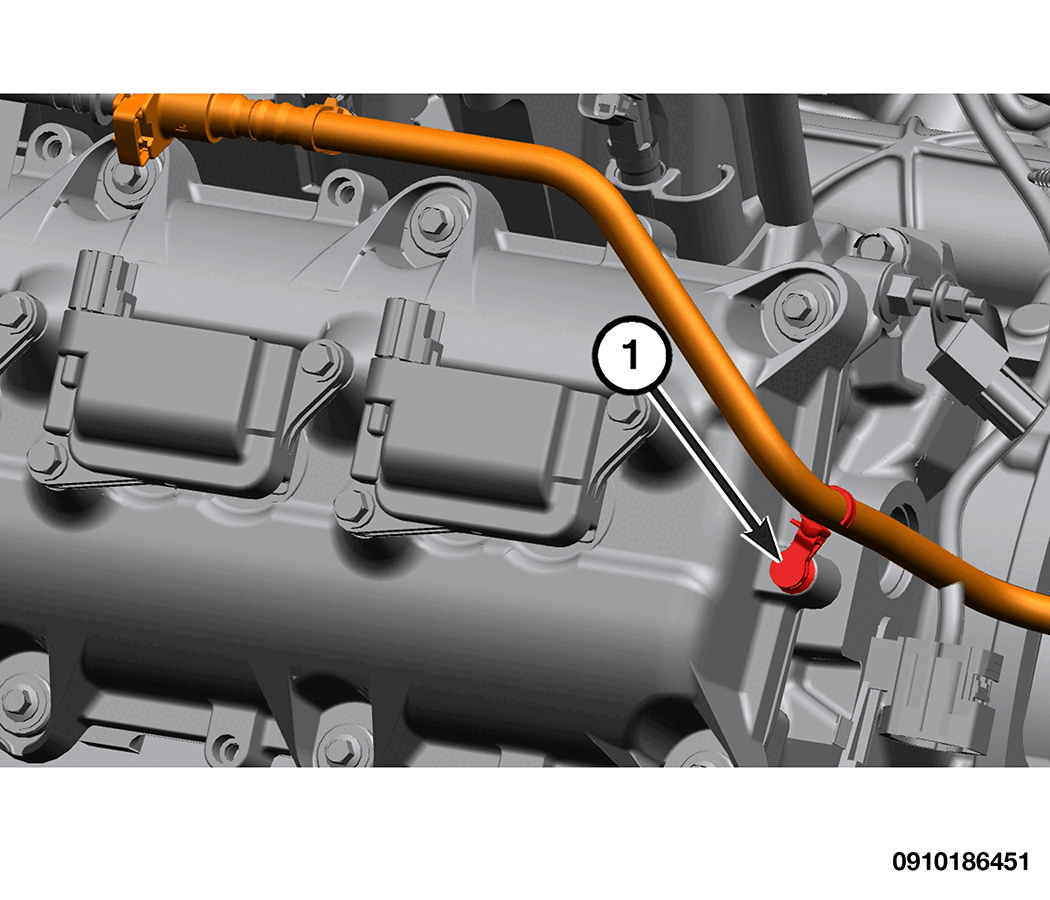

    GC0204470Courtesy of CHRYSLER GROUP, LLC
    1 - Vapor Hose Retainer
  23. Remove the vapor hose retainer from the rear of the left of the cylinder head cover and reposition the hose and fuel lines.
  24. Detach the transmission vent tube retainer from wire harness.

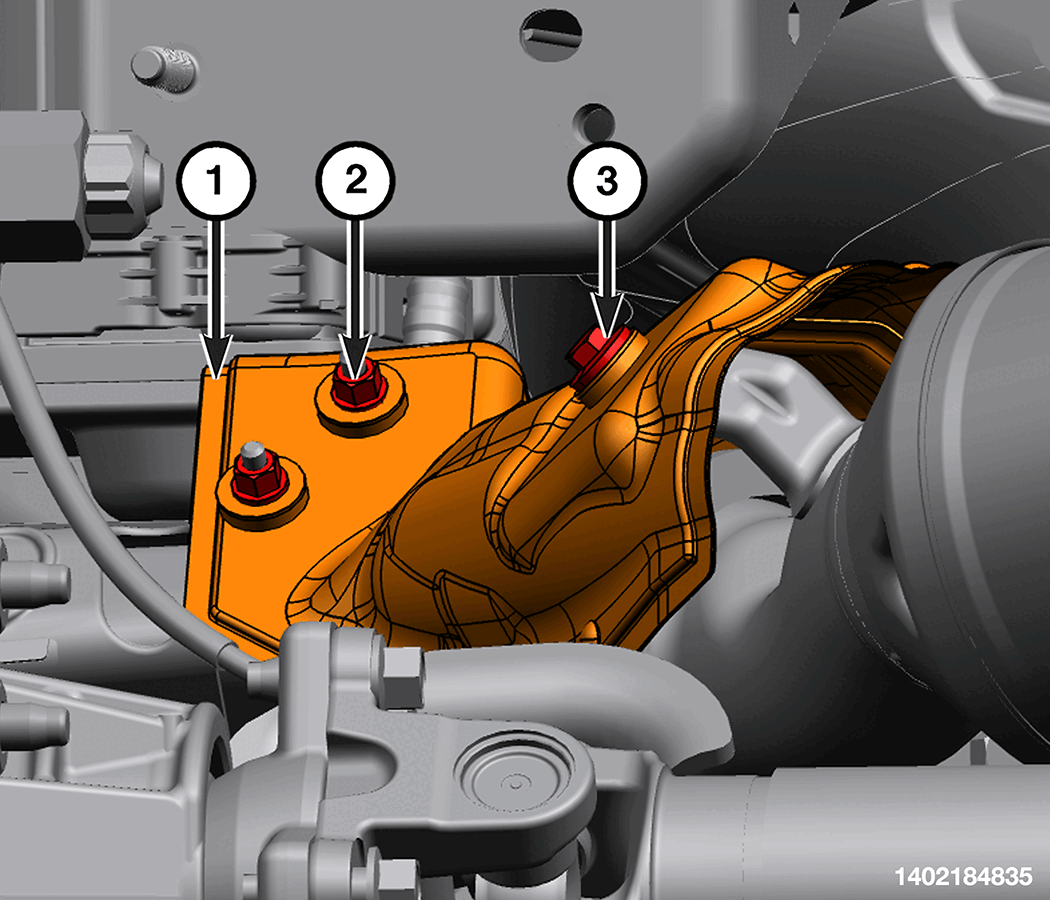

    GC0204680Courtesy of CHRYSLER GROUP, LLC
    1 - Left Front Heat Shield
    2 - Left Front Heat Shield Heat Shield Nuts
    3 - Left Front Heat Shield Heat Shield Bolt
  25. Remove the left front heat shield nuts, left front heat shield bolt, and the left front heat shield.

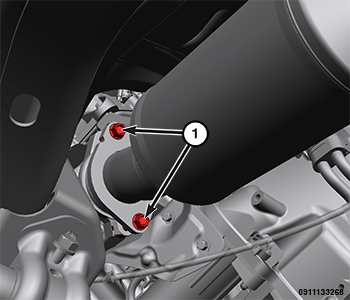

    GC0185359Courtesy of CHRYSLER GROUP, LLC
    1 - Catalytic Converter to Manifold Bolts
  26. Saturate all exhaust bolts and nuts with Mopar® Rust Penetrant. Allow 5 minutes for penetration.
  27. Remove the left catalytic converter to manifold bolts.

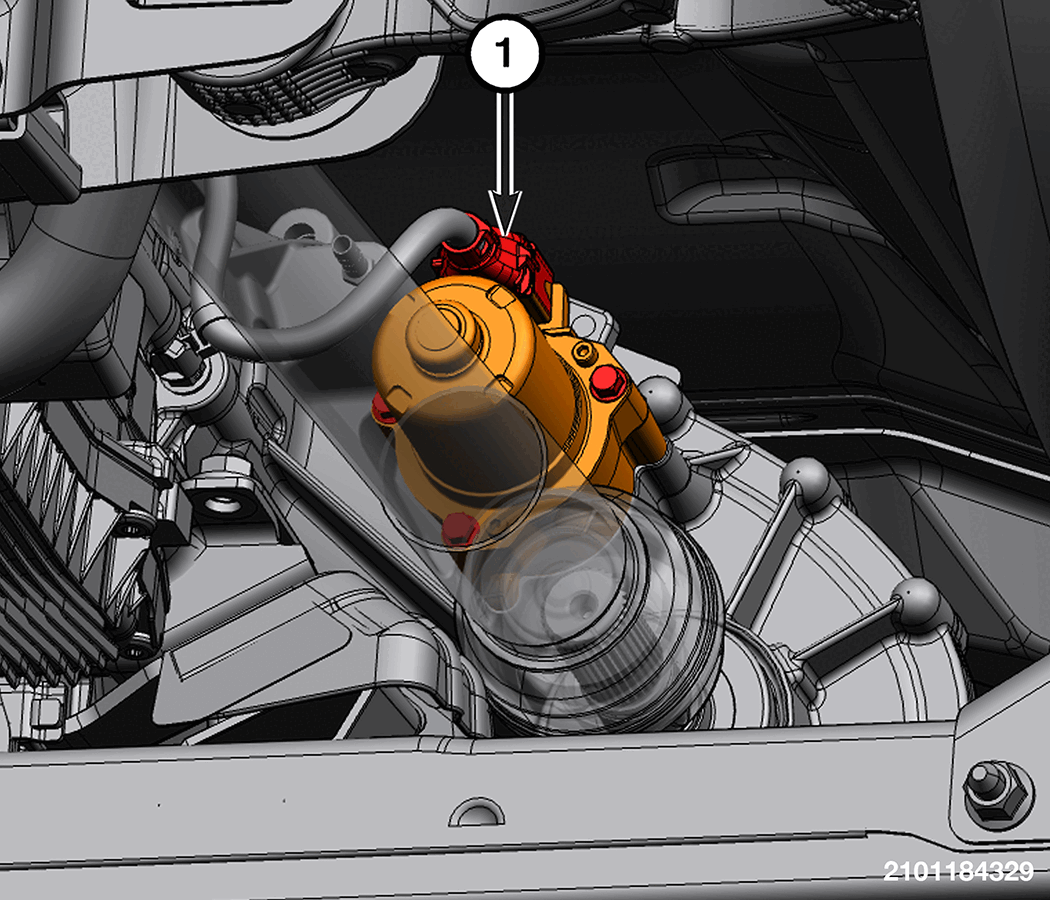

    GC0205792Courtesy of CHRYSLER GROUP, LLC
    1 - Shift Motor Wire Harness Connector
  28. Disconnect the transfer case shift motor wire harness connector.

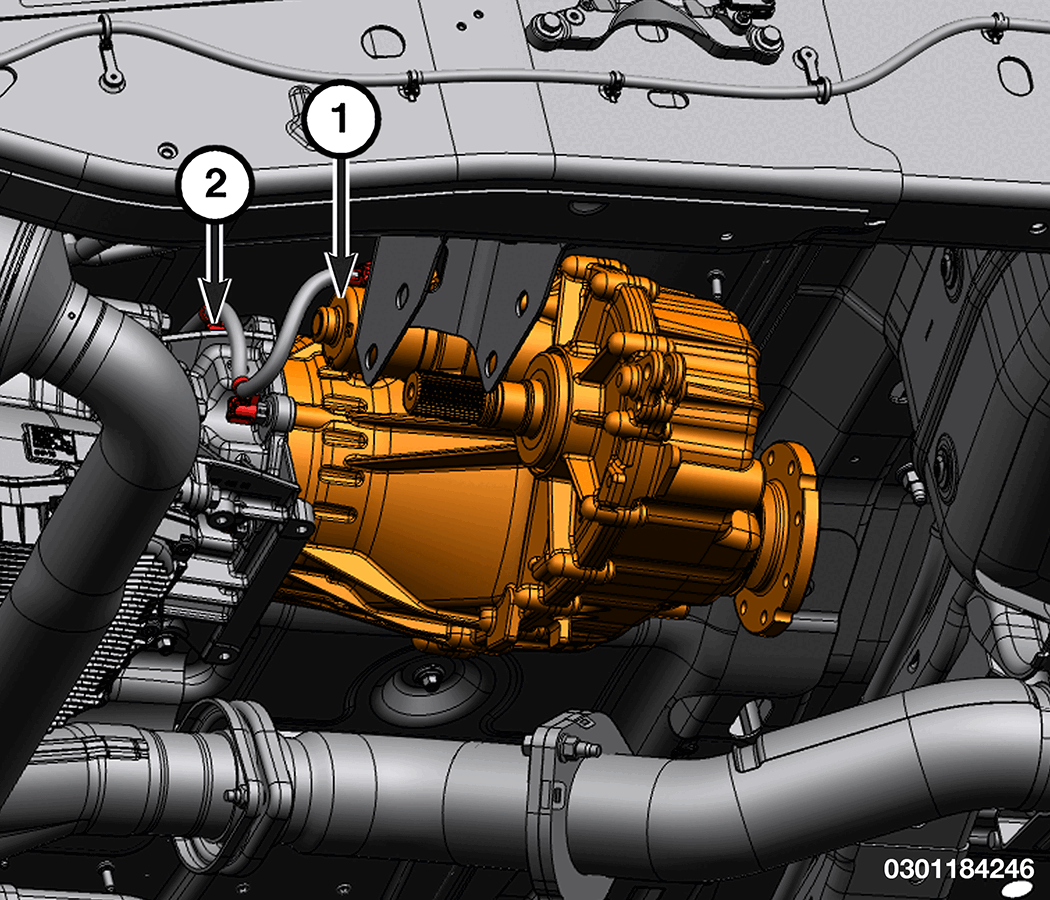

    GC0205025Courtesy of CHRYSLER GROUP, LLC
    1 - Transfer Case
    2 - Wire Harness retainers
  29. Detach the transfer case motor wire harness retainers and position aside.

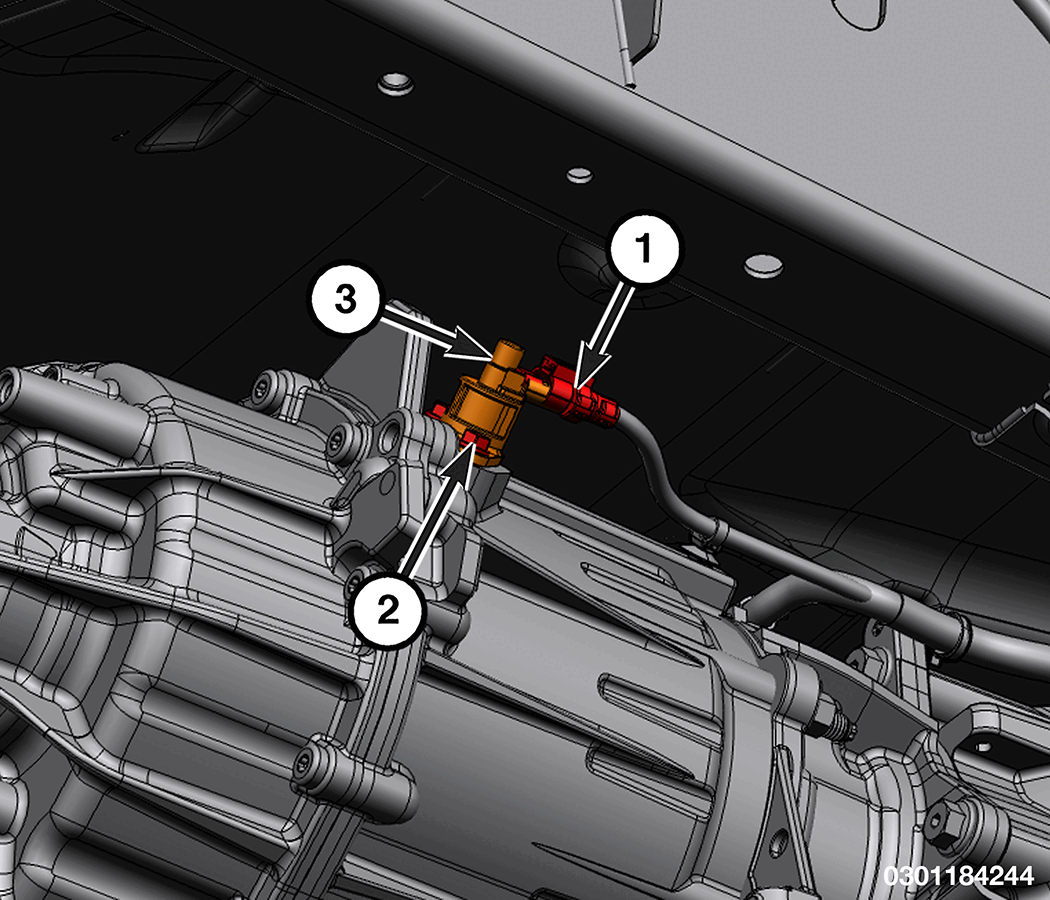

    GC0205779Courtesy of CHRYSLER GROUP, LLC
    1 - Transfer Case Position Sensor Wire Harness Connector
    2 - Transfer Case Position Sensor Mounting Bolts
    3 - Transfer Case Position Sensor
  30. Disconnect the transfer case position sensor wire harness connector.
    GC0182032Courtesy of CHRYSLER GROUP, LLC
    1 - Transmission Wire Harness Connector
  31. Turn the locking mechanism of the transmission wire harness connector counter-clockwise to release the lock and disconnect the transmission wire harness connector.
  32. Detach the retainer and disconnect the right downstream O2 wire harness connector.
  33. Detach the right upstream O2 wire harness retainers.
  34. Remove cover and disconnect the right upstream O2 wire harness connector.
  35. Detach the right downstream O2 wire harness retainers.

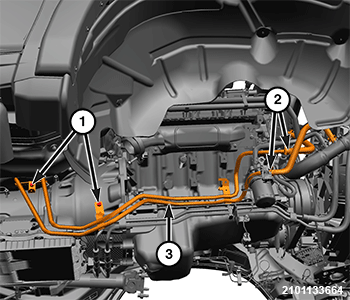

    GC0187325Courtesy of CHRYSLER GROUP, LLC
    1 - Coolant Line Bolts
    2 - Coolant Line Brackets
    3 - Coolant Lines
  36. Remove the transmission coolant line bolts.
  37. Detach the transmission wire harness retainers and position aside the transmission wire harness.

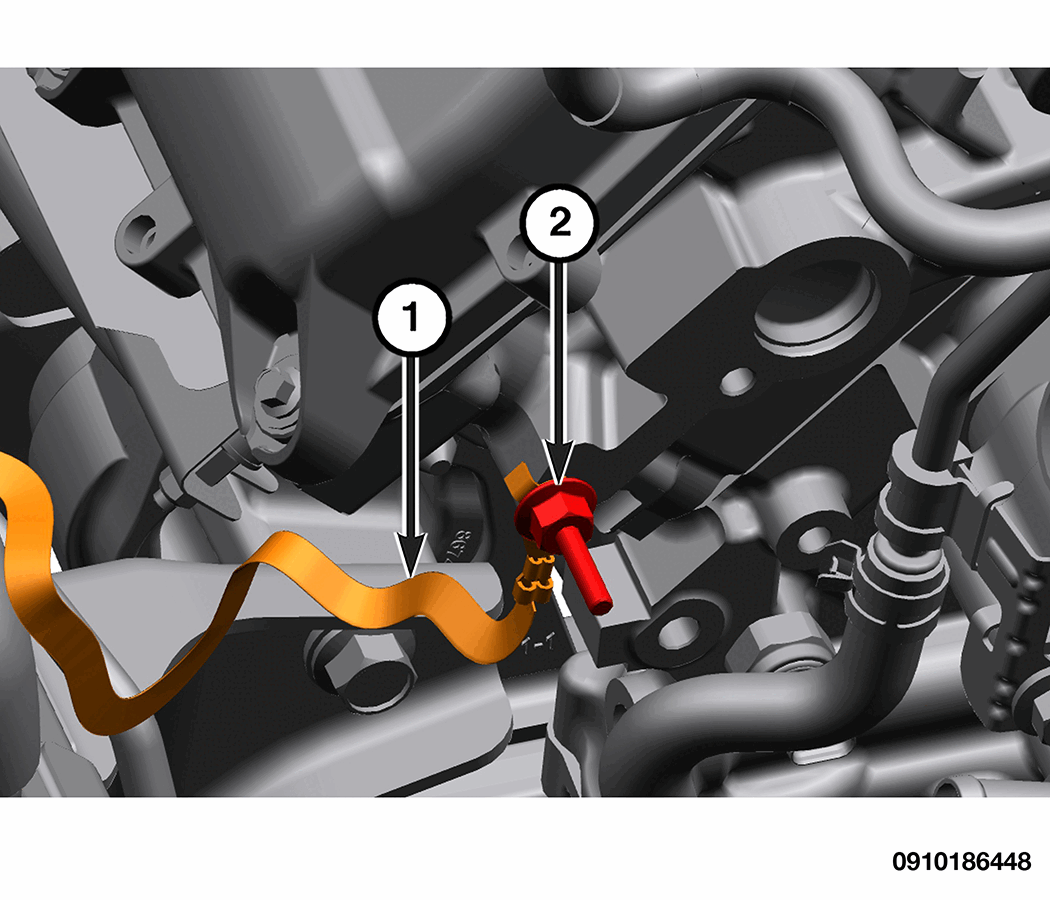

    GC0204942Courtesy of CHRYSLER GROUP, LLC
    1 - Ground Strap
    2 - Ground Strap Studbolt
  38. Remove the ground strap studbolt from the front of the right cylinder head.

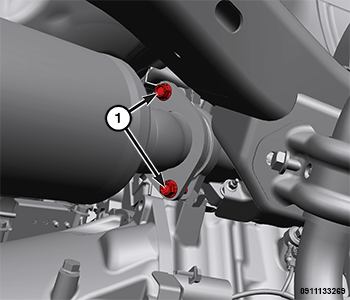

    GC0184931Courtesy of CHRYSLER GROUP, LLC
    1 - Catalytic Converter to Manifold Bolts
  39. Remove the right catalytic converter to exhaust manifold bolts and disconnect the catalytic converter assembly at the exhaust manifolds.
  40. Remove the exhaust isolator bolts attaching it to the crossmember.
  41. Remove the Variable Valve Timing Solenoid (VVTS). Refer to SOLENOID, VALVE TIMING, REMOVAL AND INSTALLATION .
    NOTE:

    Do not use air tools to install the (special tool #8984C, Fixture, Engine Lifting) and (special tool #2013800091, Adapter, Engine Lifting Bracket).

  42. Install the engine lift fixture and adapter.
  43. Detach the Manual Park Release (MPR) cable from left engine mount.
  44. Continue to step 45  for 2WD models, for 4WD models, proceed to step 49  .

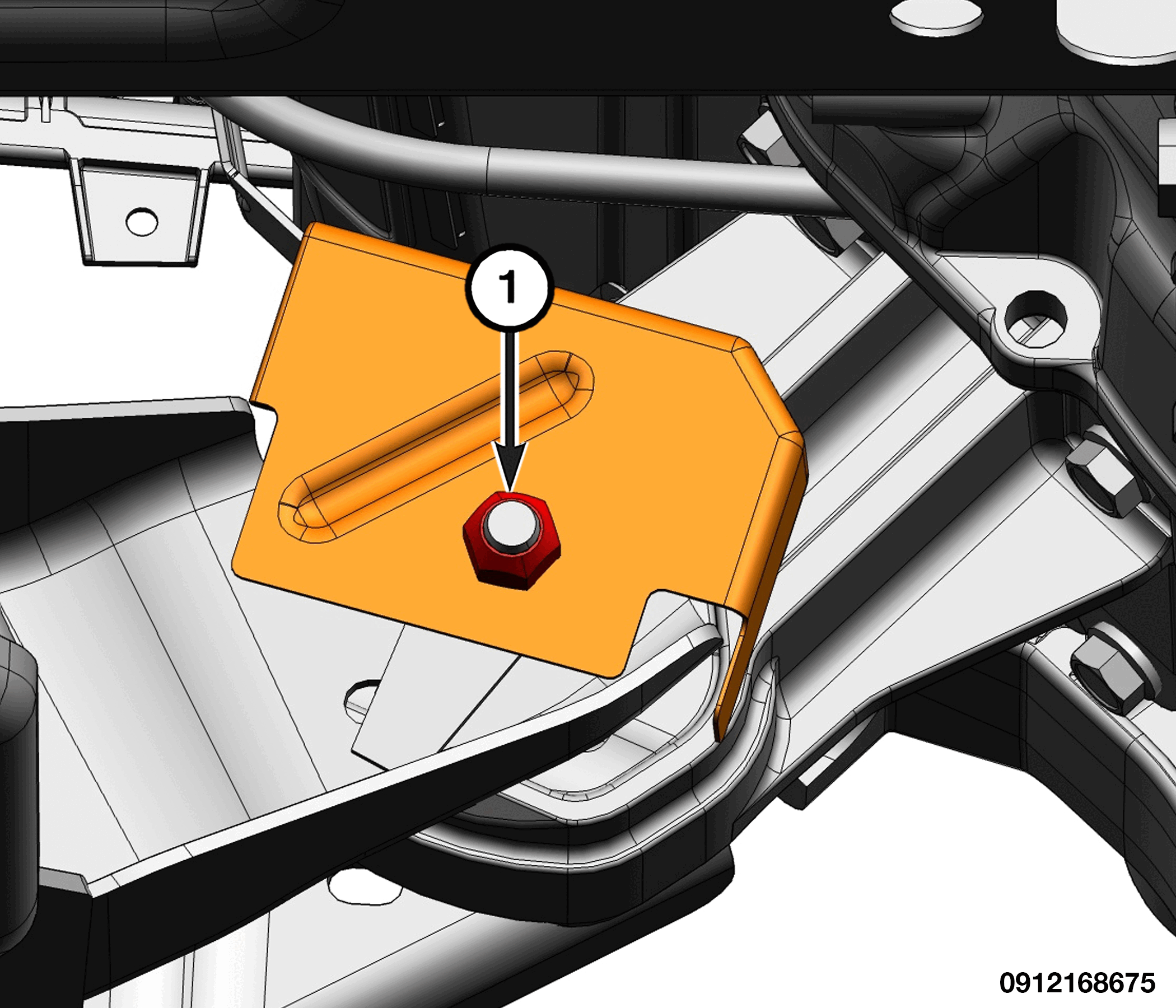

    GC0205688Courtesy of CHRYSLER GROUP, LLC
    1 - Left Heat Shield Nut
  45. Remove the left side engine mount heat shield nut.

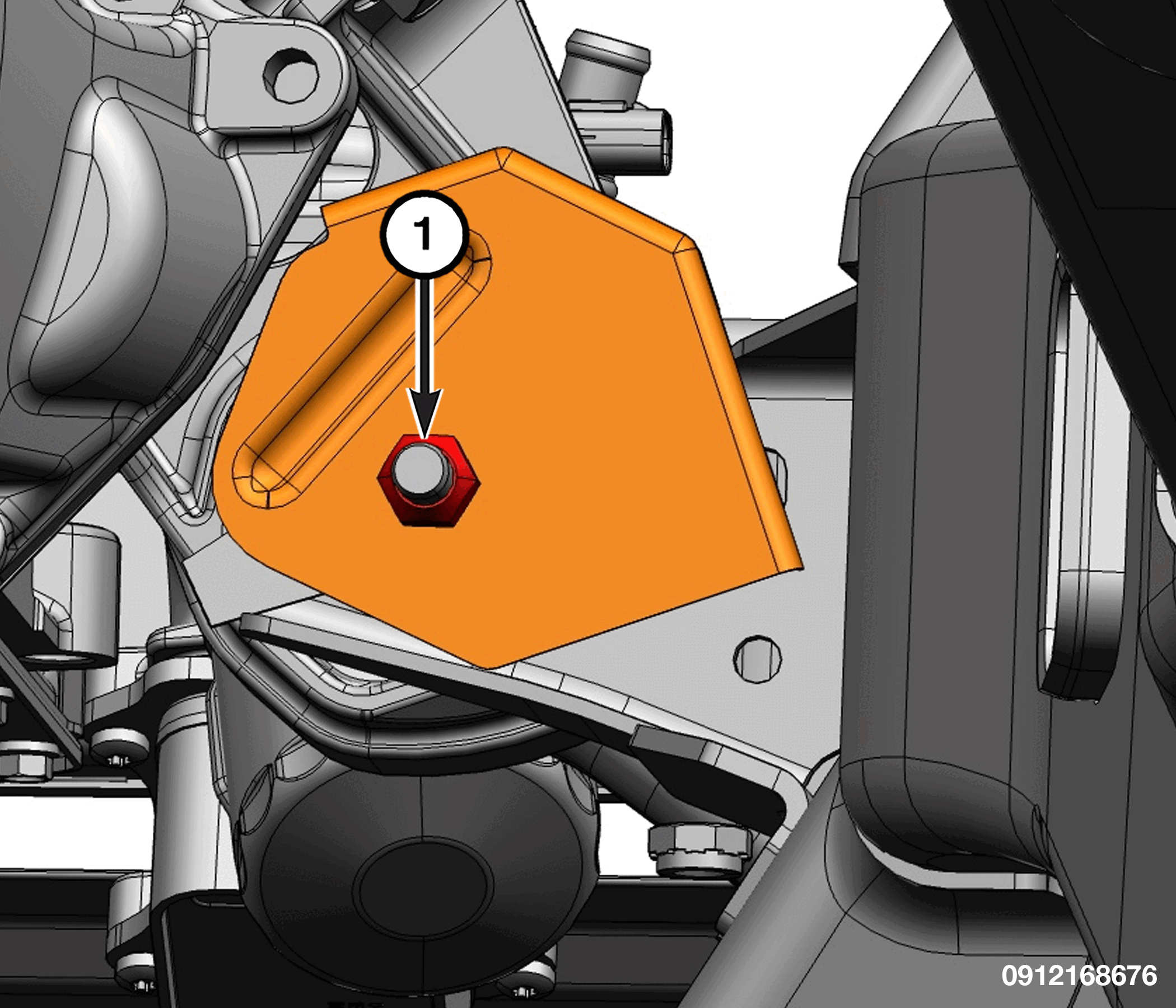

    GC0205207Courtesy of CHRYSLER GROUP, LLC
    1 - Right Heat Shield Nut
  46. Remove the right side engine mount heat shield nut.
    GC0205467Courtesy of CHRYSLER GROUP, LLC

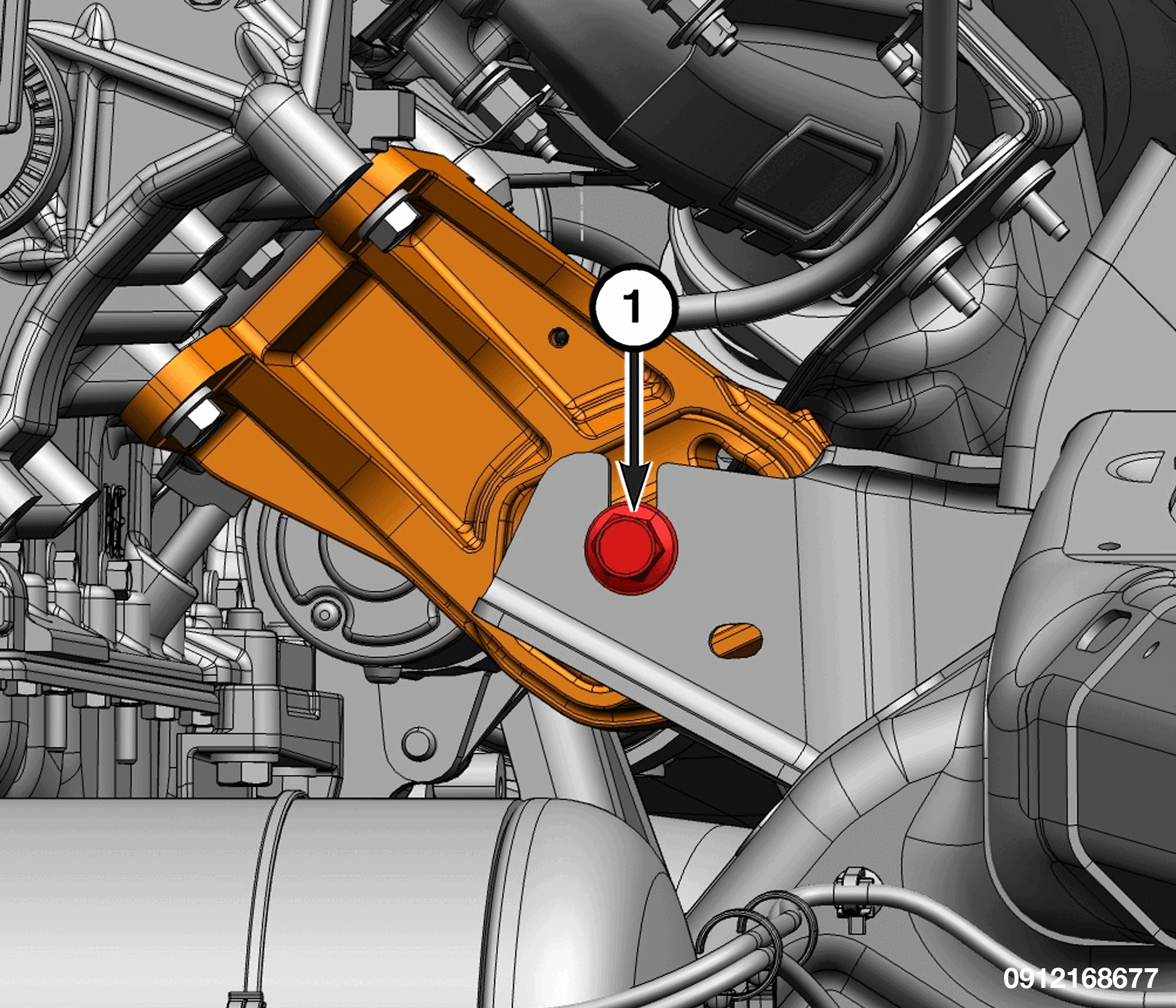

    1 - Front Engine Mount to Frame Through Bolt
  47. Loosen the nut from the left side engine mount through bolts.

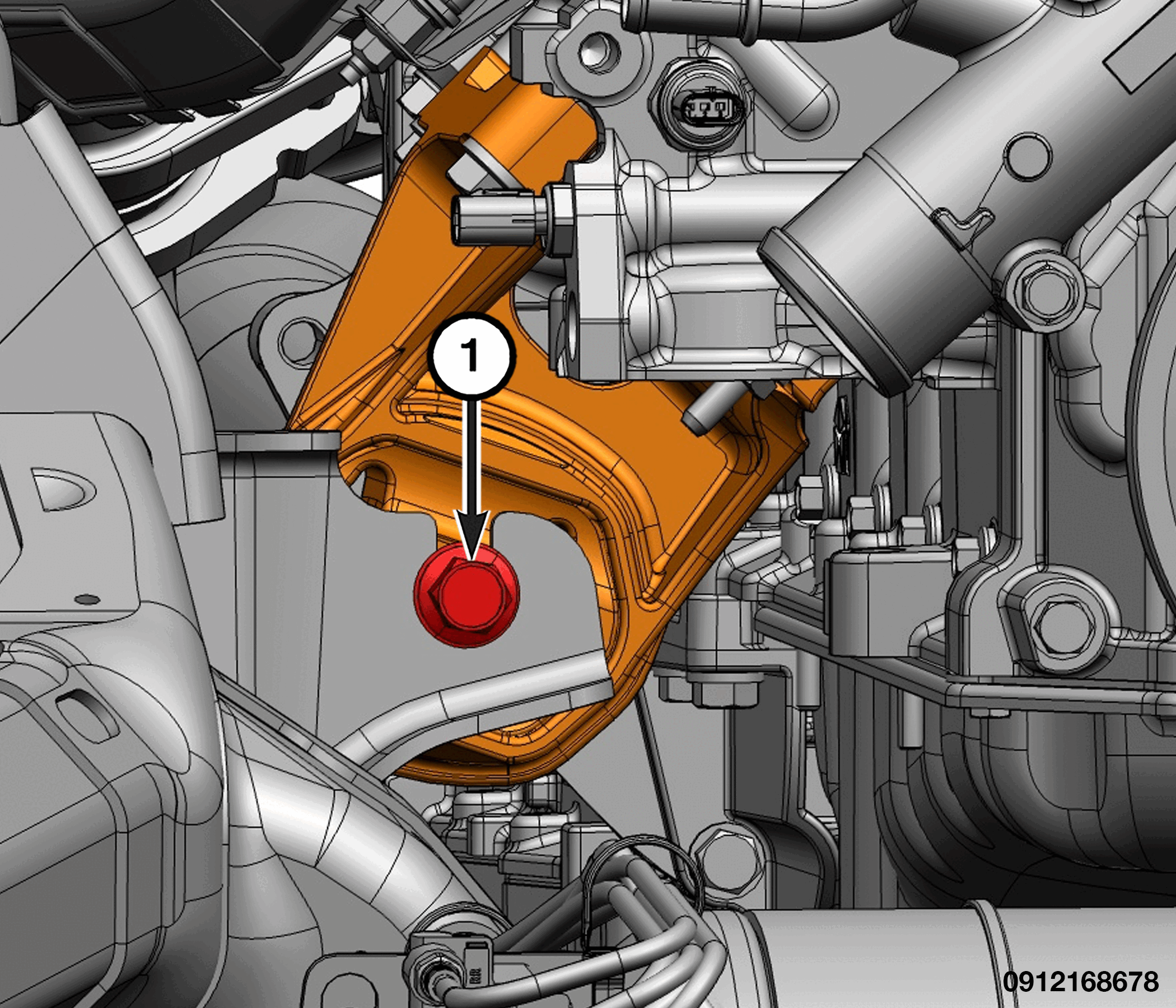

    GC0204262Courtesy of CHRYSLER GROUP, LLC
    1 - Front Engine Mount to Frame Through Bolt
  48. Loosen the nut from the right side engine mount through bolt.
  49. 4WD models start here.

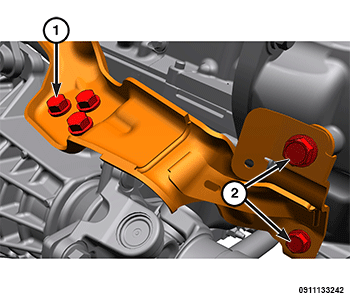

    GC0188127Courtesy of CHRYSLER GROUP, LLC
    1 - Engine Mount Bracket to Pinion Housing Bolt
    2 - Engine Mount Bracket to Transmission Bolt
  50. Remove the engine mount bracket to pinion housing retaining bolts.
  51. Remove the engine mount bracket to transmission retaining bolts.

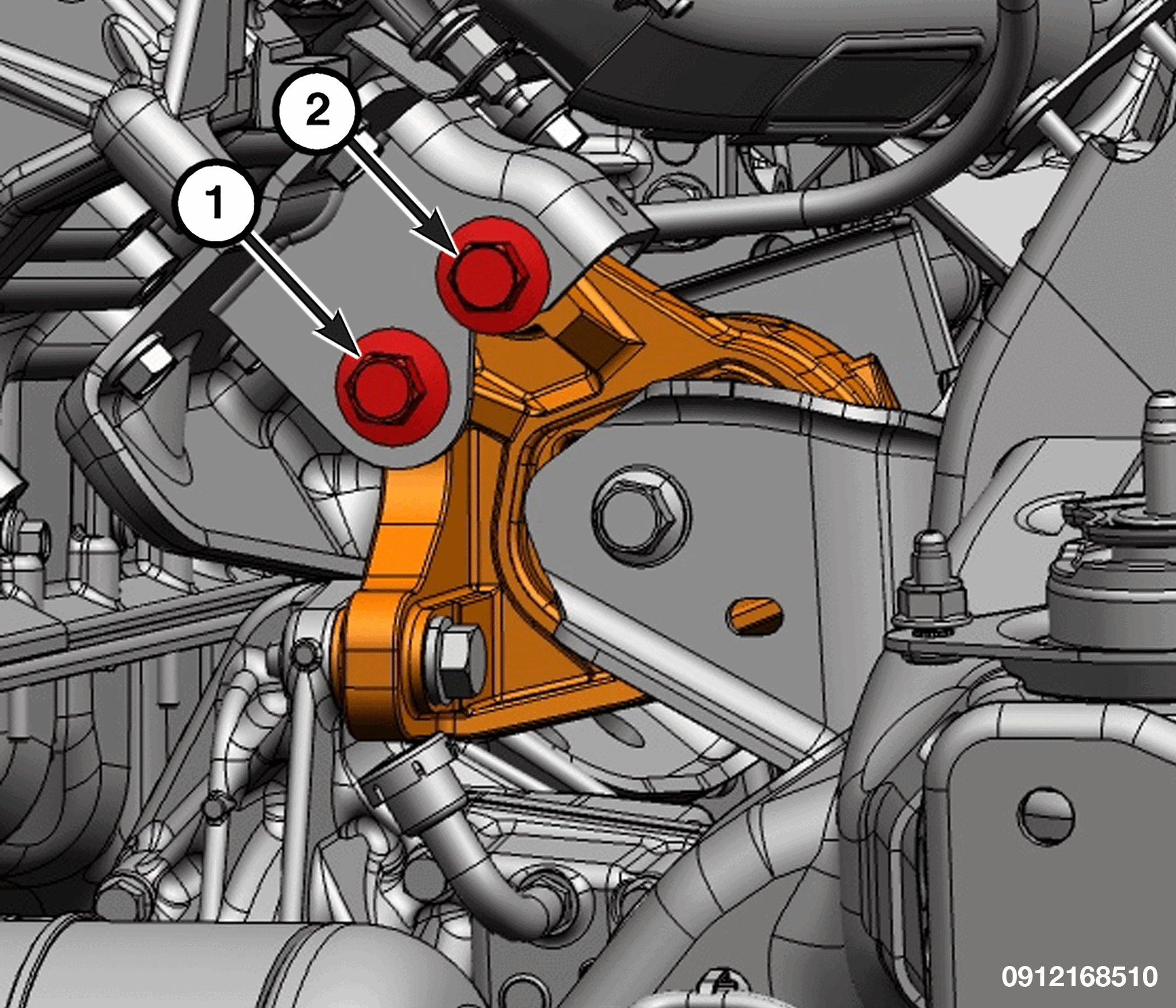

    GC0204718Courtesy of CHRYSLER GROUP, LLC
    1 - Left Engine Mount Bracket to Engine Mount Isolator Through Bolt
    2 - Left Engine Mount Bracket to Engine Mount Isolator Guide Bolt
  52. Remove the left engine mount bracket to engine mount isolator through bolt.
  53. Loosen the engine bracket to engine mount isolator guide bolt.

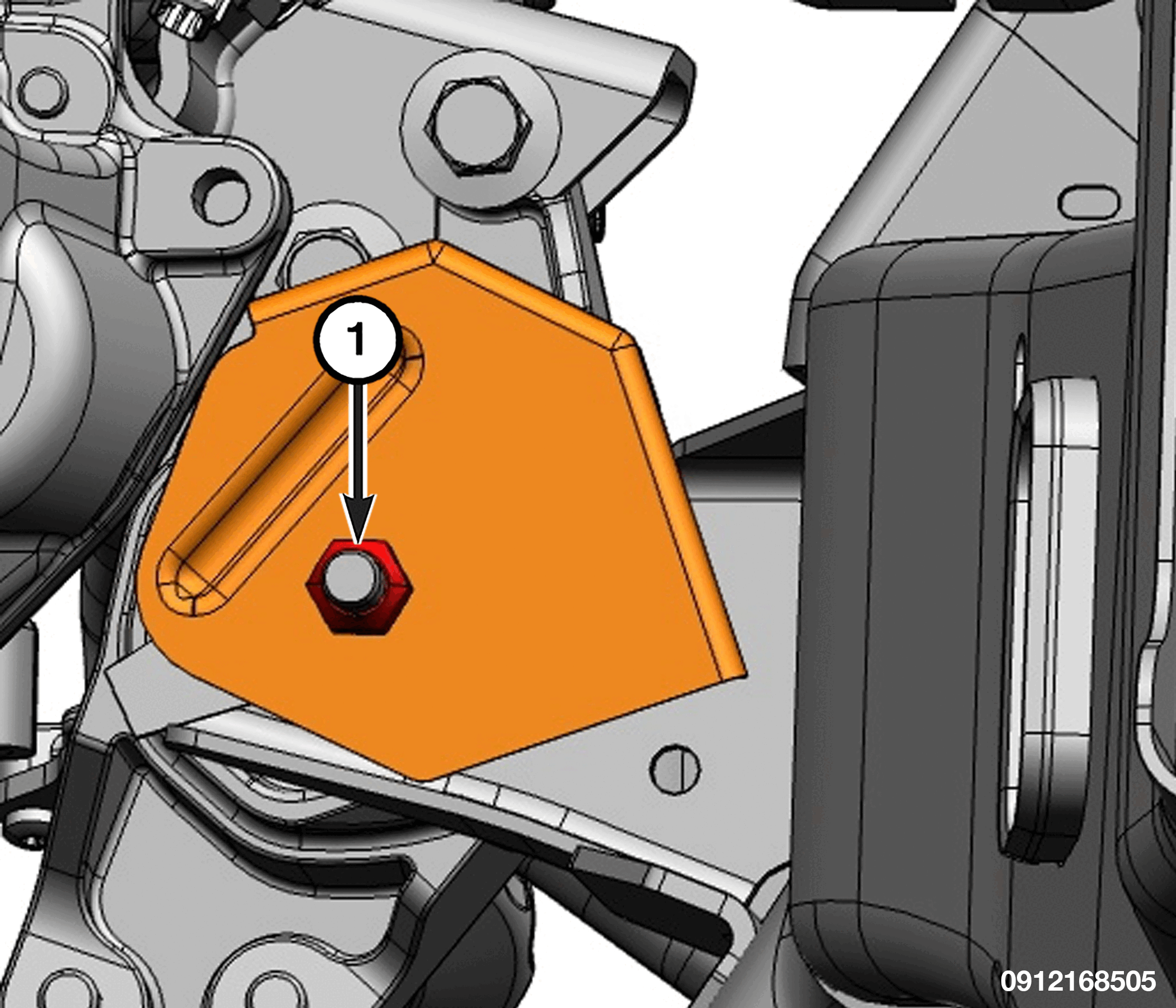

    GC0205716Courtesy of CHRYSLER GROUP, LLC
    1 - Right Engine Mount Heat Shield Nut
  54. Remove the right side engine mount heat shield nut.

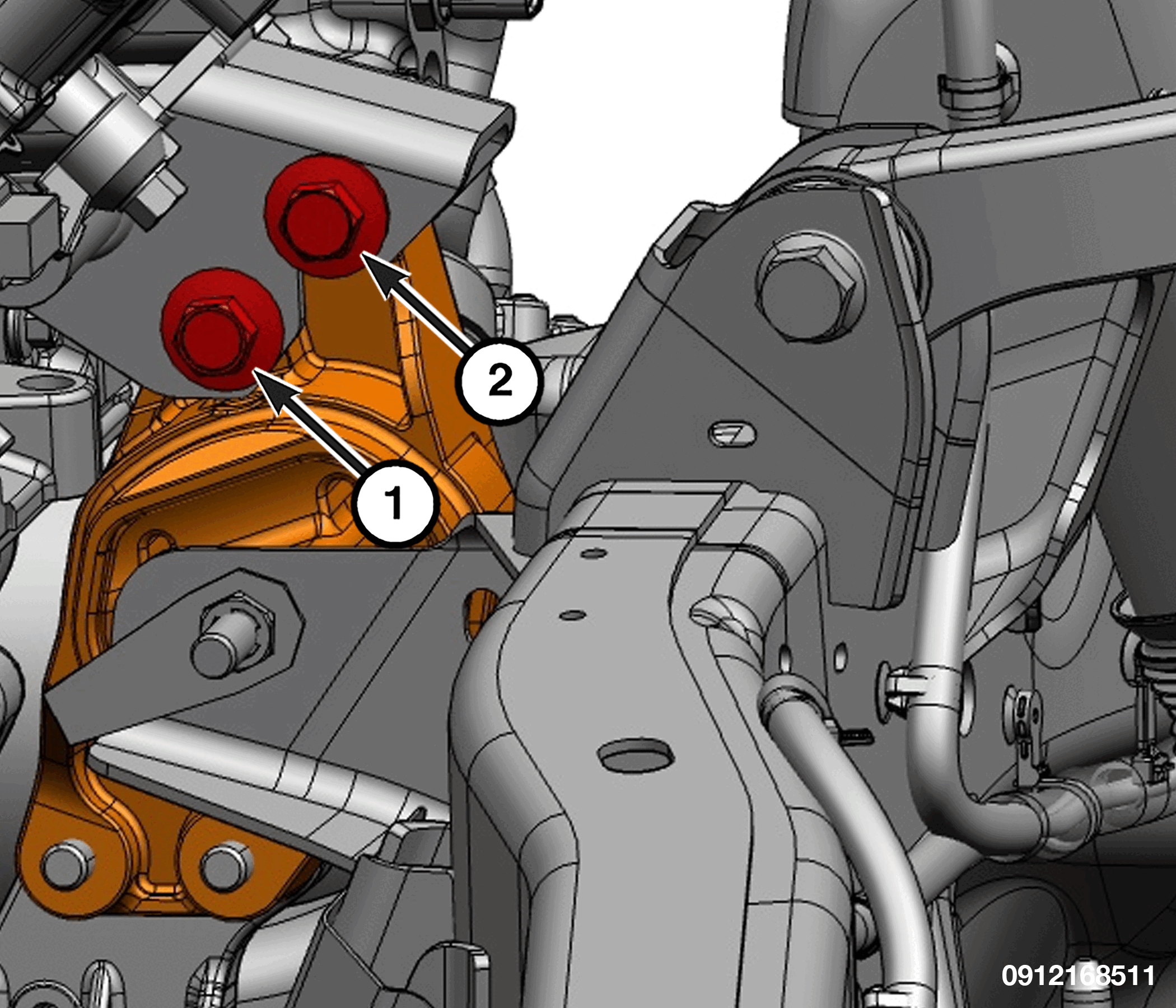

    GC0204720Courtesy of CHRYSLER GROUP, LLC
    1 - Right Engine Mount Bracket to Engine Mount Isolator Through Bolt
    2 - Right Engine Bracket to Engine Mount Isolator Guide Bolt
  55. Remove the right engine mount bracket to engine mount isolator through bolt.
  56. Loosen the engine bracket to engine mount isolator guide bolt.

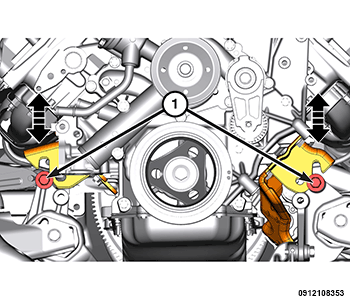

    GC0174987Courtesy of CHRYSLER GROUP, LLC
    1 - Upper Guide Bolts
  57. The upper guide bolts are left in place to support engine, the brackets are slotted to allow engine removal.
  58. Setup and install the engine lift.
  59. Support the transmission with a suitable jack.
    GC0185468Courtesy of CHRYSLER GROUP, LLC
    1 - Bell Housing to Engine Block Bolt
    2 - Bell Housing to Engine Block Stud Bolt
    NOTE:

    Stud bolt gets removed in step 69.

  60. Remove the transmission bell housing to engine block bolts.
  61. Position a suitable jack under the front axle.
  62. Raise the engine.

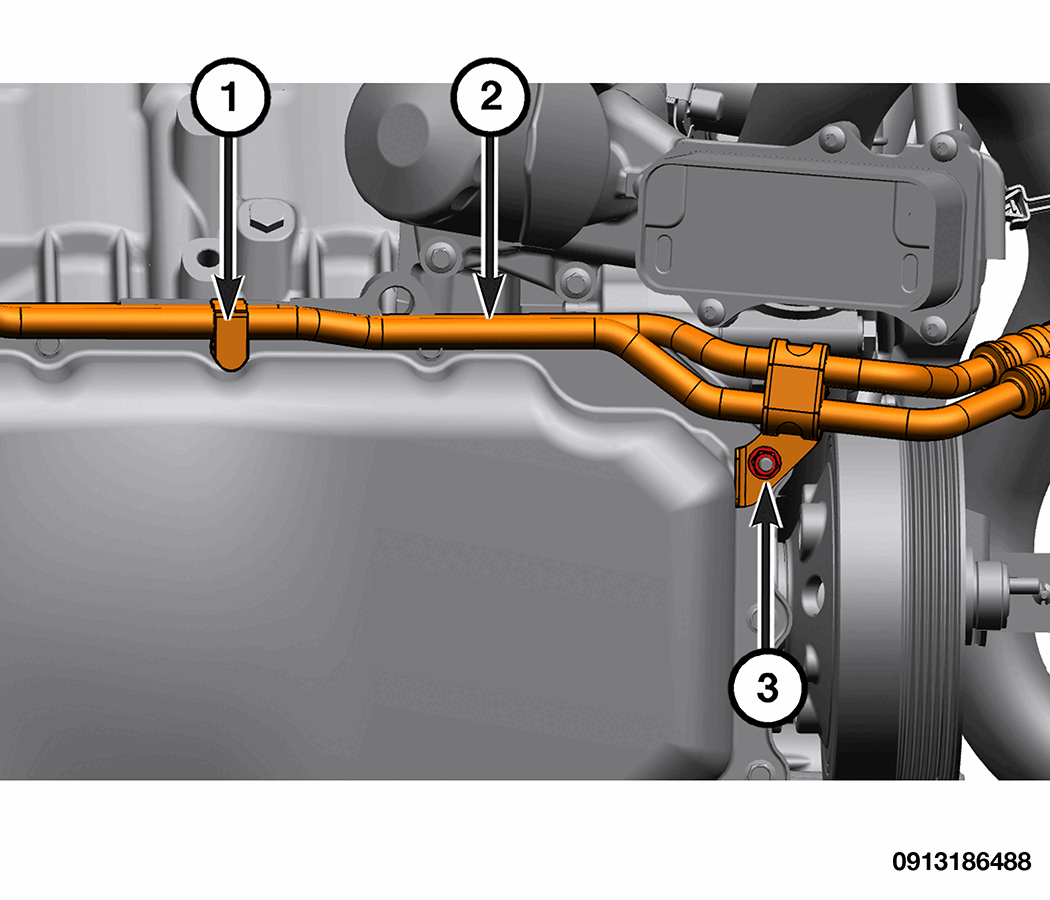

    GC0205537Courtesy of CHRYSLER GROUP, LLC
    1 - Transmission Cooler Line Retainer
    2 - Transmission Cooler Lines
    3 - Transmission Cooler Line Nut
  63. Remove the front transmission cooler lines nut.
  64. Remove the transmission cooler line retainer from the studbolt on the oil pan.

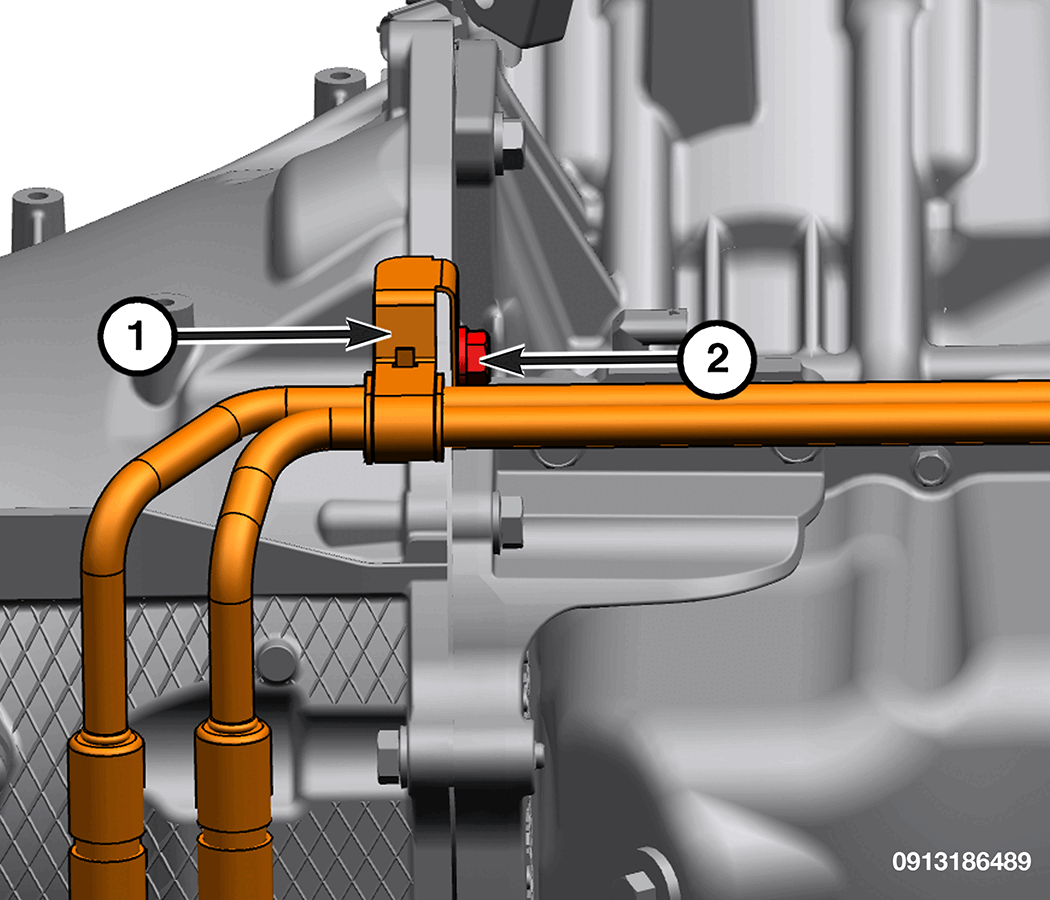

    GC0205107Courtesy of CHRYSLER GROUP, LLC
    1 - Transmission Cooler Lines
    2 - Transmission Cooler Lines Bolt
  65. Remove the rear transmission cooler lines bolt and position aside transmission cooler lines.
    GC0204465Courtesy of CHRYSLER GROUP, LLC

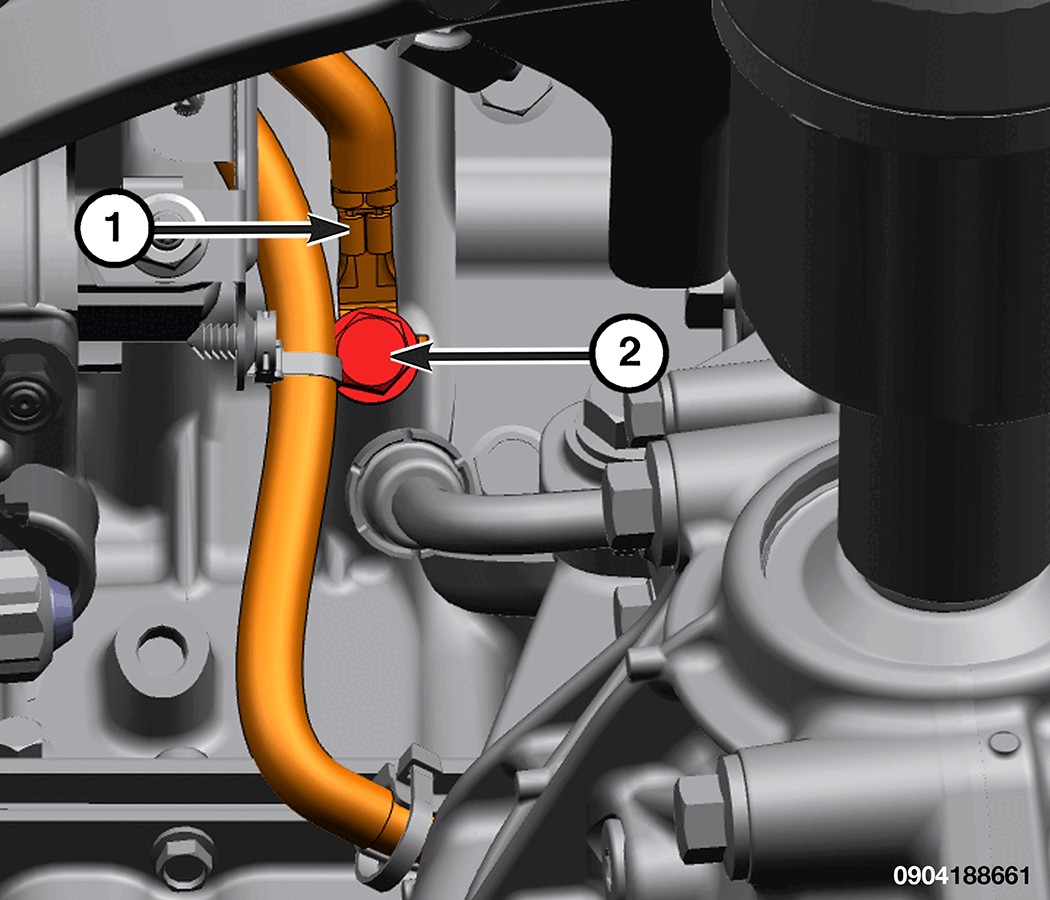

    1 - Battery Ground Cable Bolt
    2 - Battery Ground Cable
  66. Remove the battery ground cable bolt and position aside the battery ground cable (left side).
  67. Detach the two battery wire harness retainers from the left cylinder head cover.
  68. Detach the wire harness retainers along the left side of oil pan.
  69. Remove the last transmission bell housing to engine block stud bolt.
  70. Separate the engine from the transmission and remove the engine from the vehicle.
  71. If replacing the engine, transfer necessary parts as required to the replacement engine.
