Engine Oil Change
WARNING: This page is about a different car, the 2023 Jeep Grand Wagoneer. However, it is still accessible from the selected car via links, so may be relevant.
Change engine oil at mileage and time intervals described in Maintenance Schedules. Refer to 2023, MAINTENANCE SCHEDULES, DESCRIPTION .
Run engine until achieving normal operating temperature.
- Remove the oil fill cap.
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Place a suitable drain pan under the crankcase drain.

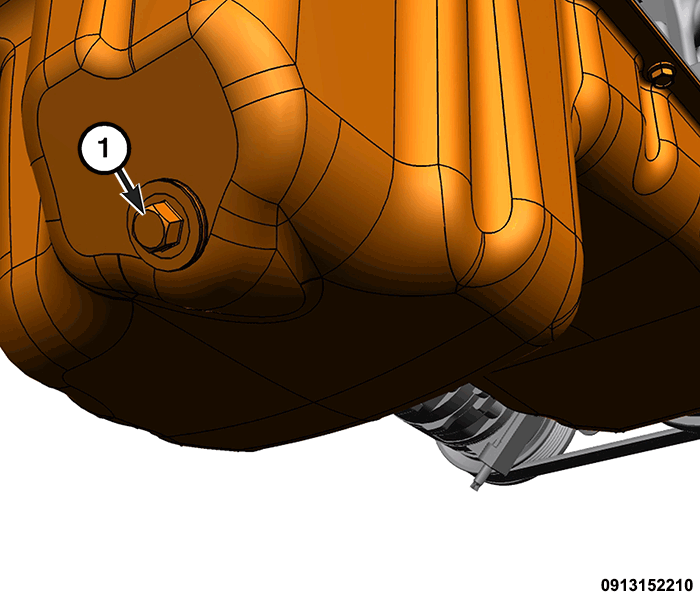

1 - Drain Plug - Remove the drain plug and allow oil to drain into pan. Inspect drain plug threads for stretching or other damage. Replace drain plug if necessary.
- Install the drain plug and tighten to 34 N.m (25 Ft. Lbs.) .
- Lower vehicle and fill crankcase with specified type and amount of engine oil. Refer to 6.4L ENGINE, CAPACITIES AND RECOMMENDED FLUIDS, SPECIFICATIONS .
- Lightly lubricate the oil fill cap O-ring seal with clean engine oil.
- Install the oil fill cap.
- Start the engine and inspect for leaks.
- Stop the engine and inspect the oil level.
NOTE:
Care should be exercised when disposing used engine oil after it has been drained from a vehicle engine. Refer to the WARNING at beginning of this information.
