Battery Pressurized Coolant Bottle: Removal
WARNING: This page is about a different variant/trim than selected.
- Partially drain the battery cooling system. Refer to: 2.0L ENGINE - DRAINING .
- Remove the intake air tube. Refer to 2.0L ENGINE - TUBE, INTAKE AIR, REMOVAL AND INSTALLATION
.

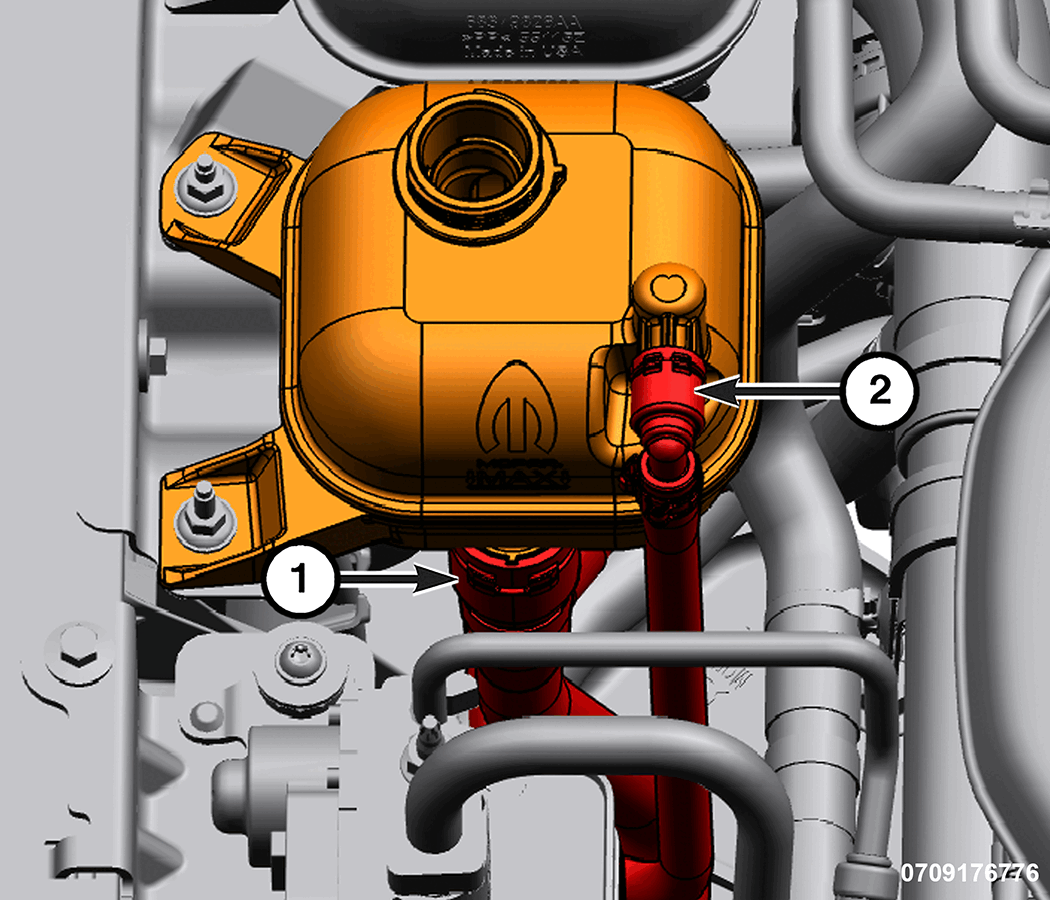

1 - Lower Coolant Hose 2 - Coolant Hose - Disconnect the coolant hose.
- Disconnect the lower coolant hose.

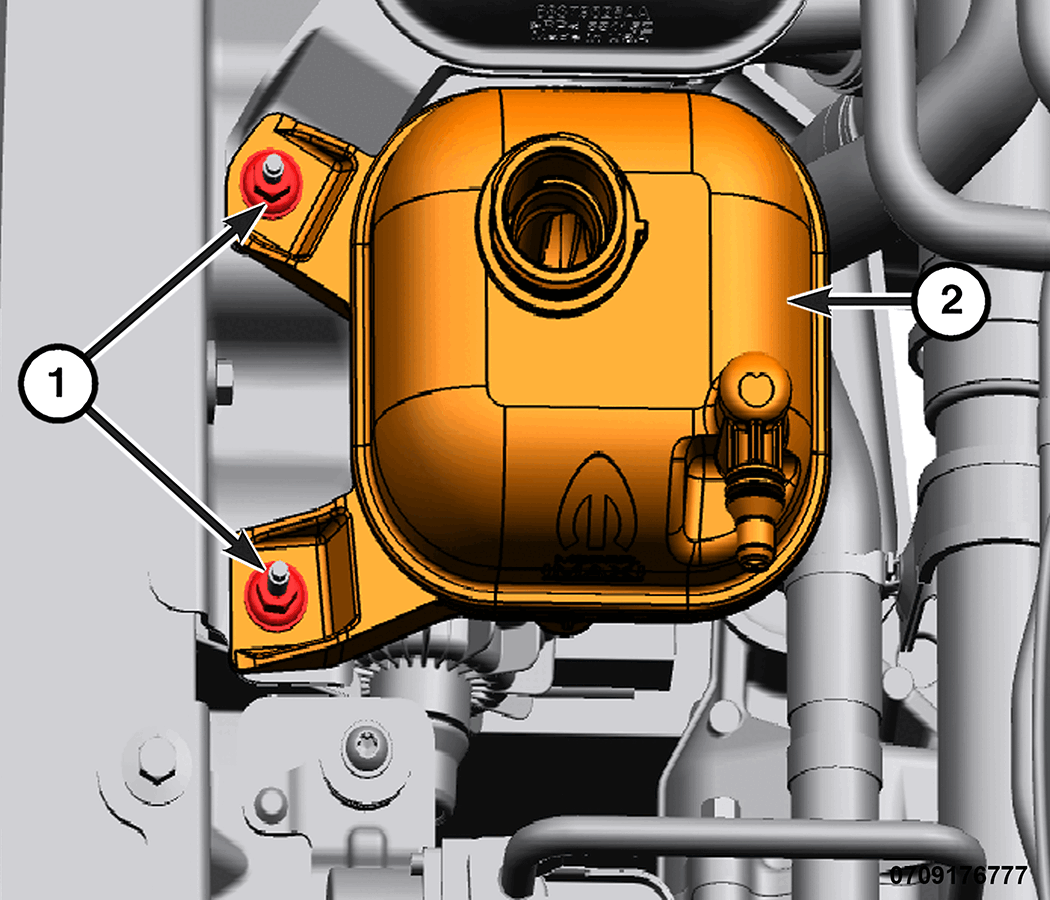

1 - Battery Pressurized Coolant Bottle Nuts 2 - Battery Pressurized Coolant Bottle - Remove the battery pressurized coolant bottle nuts and the battery pressurized coolant bottle.
