Removal
TENSIONER, Belt: Removal
Remove the serpentine belt. Refer to
BELT, SERPENTINE, REMOVAL
.
Courtesy of CHRYSLER GROUP, LLC

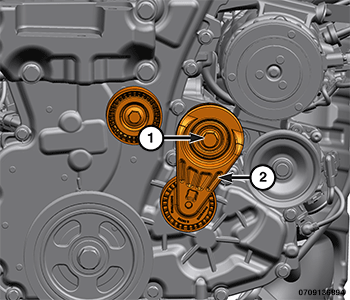

Remove the bolt (1) and the belt tensioner (2).
