Belt, Serpentine: Removal

  1. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL .
  2. Remove the air cleaner body and clean air tube. Refer to BODY, AIR CLEANER, REMOVAL .

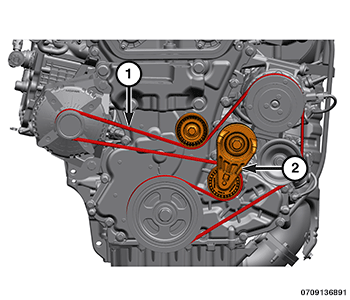

    GC0186850Courtesy of CHRYSLER GROUP, LLC
  3. Rotating the belt tensioner (2) clockwise and remove the serpentine belt (1).
  4. Slowly release the belt tensioner (2).
