Pulley, Idler: Removal

  1. Remove the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL .

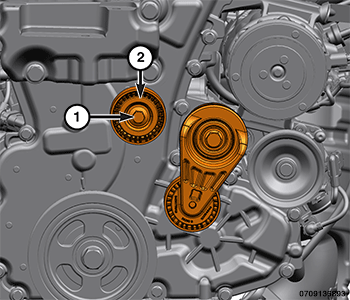

    GC0186718Courtesy of CHRYSLER GROUP, LLC
  2. Remove the bolt (1) and the idler pulley (2).
