Body, Air Cleaner: Removal

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the clean air hose. Refer to HOSE, CLEAN AIR, REMOVAL .
    GC0187077Courtesy of CHRYSLER GROUP, LLC
  3. Unlock and disconnect the wire harness connector from the Intake Air Temperature (IAT) sensor (2).
  4. Disengage the two wire harness retainers (1) from the air cleaner body.
  5. Disconnect the boost vacuum hose quick coupling (3) from the air cleaner body cover.
  6. Disconnect the fuel vapor purge hose quick coupling (4) from the air cleaner body cover.

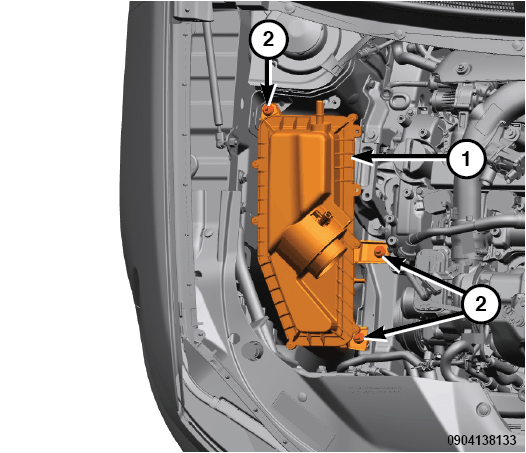

    GC0187036Courtesy of CHRYSLER GROUP, LLC
  7. Disengage and remove the air cleaner body (1) from the three mounting posts (2).
  8. If required, remove the IAT sensor from the air cleaner body. Refer to SENSOR, AIR TEMPERATURE, INLET, REMOVAL .
