Lifter(S), Hydraulic: Installation

  1. Verify that the hydraulic lifters are at least partially full of oil. There should be little or no plunger travel when the hydraulic lifter is depressed.
    GC0183357Courtesy of CHRYSLER GROUP, LLC
  2. If the hydraulic lifters are being reused, reassemble them into their original locations.
  3. Install the hydraulic lifters (1).

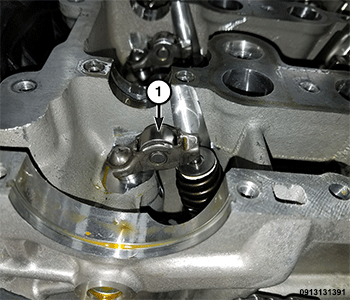

    GC0182753Courtesy of CHRYSLER GROUP, LLC
  4. If the rocker arms are being reused, reassemble them into their original locations.
  5. Install the rocker arms (1).
  6. Install the camshafts. Refer to CAMSHAFT, ENGINE, INSTALLATION .
