Camshaft, Engine: Installation

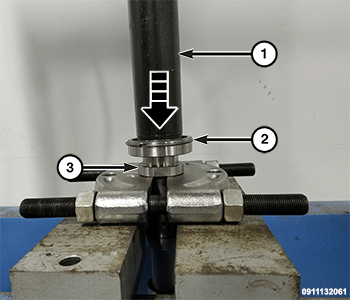

GC0183219Courtesy of CHRYSLER GROUP, LLC
  1. If removed, install a NEW  front camshaft bearing (2) on the camshaft (3) using (special tool #W-262, Installer, Bearing) (1).

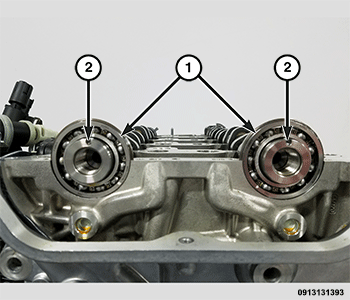

    GC0183196Courtesy of CHRYSLER GROUP, LLC
  2. Install the camshafts (1) on the cylinder head with the notches (2) facing up.

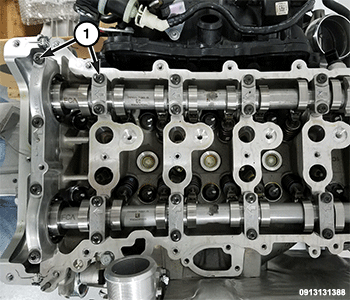

    GC0183600Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    To avoid bending the camshafts, partially tighten each cam cap bolt, one turn at a time, to seat the camshafts to the head. Do not torque to specification until the cam caps are in full contact with the cylinder head.

  3. Install the camshaft bearing caps and bolts (1).
    Fig 1: Camshaft Cap Bolts Tightening Sequence
    GC0182897Courtesy of CHRYSLER GROUP, LLC
  4. Tighten the camshaft cap bolts in the sequence shown in illustration to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  5. Install the variable valve timing phasers. Refer to ASSEMBLY, VARIABLE VALVE TIMING, PHASER / OIL CONTROL VALVE, INSTALLATION .
  6. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
