Cooler, Oil: Removal

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  3. Drain the cooling system. Refer to COOLING SYSTEM, STANDARD PROCEDURE .
  4. Remove the catalytic converter. Refer to CONVERTER, CATALYTIC, REMOVAL .
  5. Remove the turbocharger engine oil supply pipe. Refer to LINES, TUBES AND HOSES, TURBOCHARGER, OIL AND COOLANT, REMOVAL .
    GC0186378Courtesy of CHRYSLER GROUP, LLC
  6. Loosen the band clamp and remove the coolant hose (1) from the oil cooler.

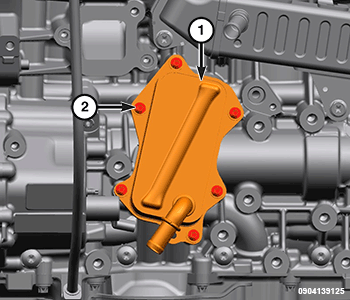

    GC0186431Courtesy of CHRYSLER GROUP, LLC
  7. Remove and discard the six bolts (2) and remove the engine oil cooler (1).
    GC0180970Courtesy of CHRYSLER GROUP, LLC
  8. Remove the oil cooler seal (1).
