Turbocharger Coolant Supply Pipe

WARNING: This page is about a different variant/trim than selected.

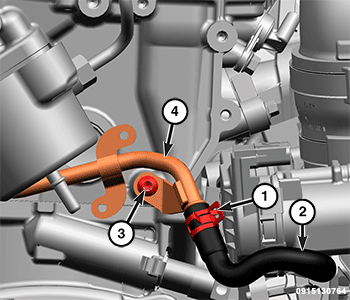

GC0182842Courtesy of CHRYSLER GROUP, LLC
  1. Position the turbocharger coolant supply pipe (4) to the engine. Install and tighten the bolt (3) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  2. Install the cooling hose (2) on the turbocharger coolant supply pipe (4) and tighten the band clamp (1).

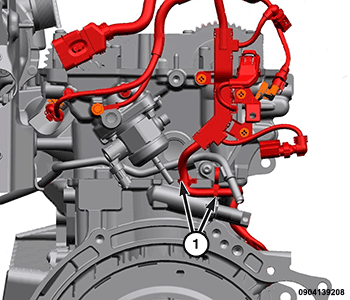

    GC0187171Courtesy of CHRYSLER GROUP, LLC
  3. Engage the wire harness retainers (1) to the turbocharger coolant supply pipe.

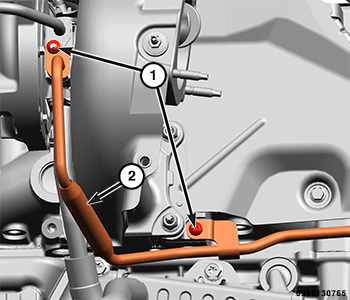

    GC0181777Courtesy of CHRYSLER GROUP, LLC
  4. Install the turbocharger coolant supply pipe (2) with a NEW  O-ring to the turbocharger and tighten the two bolts (1) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

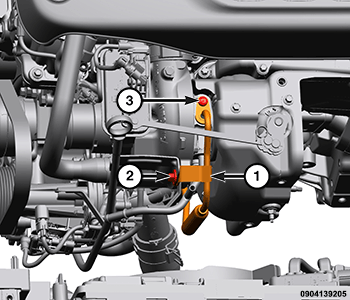

    GC0187015Courtesy of CHRYSLER GROUP, LLC
  5. Install the turbocharger oil supply pipe (1) with a NEW  O-ring to the turbocharger and tighten the bolt (3) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  6. Tighten the nut (2) securing the oil dipstick tube, engine coolant pipe and the turbocharger oil supply pipe (1) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  7. Install the catalytic converter. Refer to CONVERTER, CATALYTIC, INSTALLATION .
  8. Fill the coolant system. Refer to COOLING SYSTEM, STANDARD PROCEDURE .
  9. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
  10. Remove the support and lower the vehicle.
