Air Outlet Pipe From Turbocharger To Throttle Body

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the top and side engine covers. Refer to COVER, ENGINE, REMOVAL .
    GC0186633Courtesy of CHRYSLER GROUP, LLC
  3. Disengage the Positive Crankcase Ventilation (PCV) hose (1) from the retainer (2) on the turbocharger air outlet pipe.
  4. Disconnect the quick couplings and remove the PVC hose (1).
  5. Disengage the Closed Crankcase Ventilation (CCV) hose (3) and the surge valve hose (5) from the retainer (4) on the turbocharger air outlet pipe.
  6. Disconnect the quick couplings and remove the CCV hose (3).
  7. Loosen the band clamp and remove the surge hose (5) from the surge valve.
    GC0186911Courtesy of CHRYSLER GROUP, LLC
  8. Unlock and disconnect the turbo boost pressure sensor wire harness connection (1).
  9. Unlock and disconnect the air temperature sensor wire harness connection (2).
  10. Unlock and disconnect the surge valve wire harness connection (3).
    GC0182457Courtesy of CHRYSLER GROUP, LLC
  11. Remove the bolt (1) securing the turbocharger air outlet pipe to the cylinder head cover.
    GC0191807Courtesy of CHRYSLER GROUP, LLC
    CAUTION:

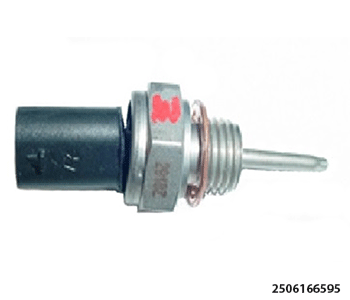

    Avoid possible damage to the air temperature sensor when the turbocharger air outlet pipe is removed with the sensor still installed in the pipe.

    GC0186532Courtesy of CHRYSLER GROUP, LLC

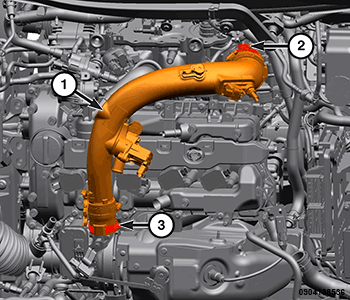

  12. Loosen the clamp (3) at the turbocharger outlet and pull the turbocharger air outlet pipe (1) away from the turbocharger.
  13. Loosen the clamp (2) at the throttle body inlet and remove the turbocharger air outlet pipe (1) from the throttle body.
    GC0181245Courtesy of CHRYSLER GROUP, LLC

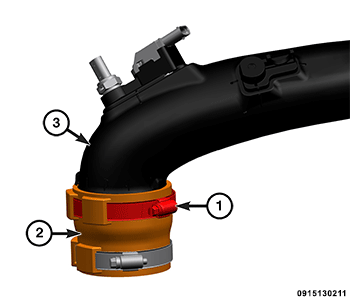

  14. If required, Loosen the clamp (1) and remove the throttle body air inlet hose from the turbocharger air outlet pipe (3).
    GC0181189Courtesy of CHRYSLER GROUP, LLC
  15. If required, loosen the clamp (2) and remove the turbocharger air outlet hose (1) from the turbocharger air outlet pipe (3).
    GC0183022Courtesy of CHRYSLER GROUP, LLC
  16. If required, remove the bolt (1) and remove the turbo boost pressure sensor (2) from the turbocharger air outlet pipe (4).
  17. If required, loosen and remove the air temperature sensor (3) from the turbocharger air outlet pipe (4). Refer to SENSOR, AIR TEMPERATURE, INLET, REMOVAL .
    GC0187078Courtesy of CHRYSLER GROUP, LLC
  18. If required, remove the three bolts (2) and remove the surge valve (1).
