Seal, Crankshaft Oil, Rear: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the flexplate. Refer to FLEXPLATE, REMOVAL .

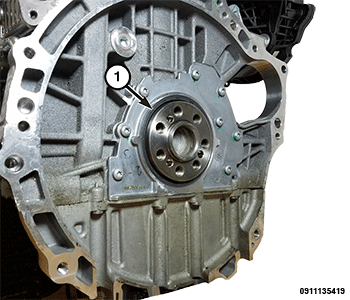

    GC0183012Courtesy of CHRYSLER GROUP, LLC
  2. Remove the rear engine crankshaft oil seal (1) using the (special tool #2044600090, Remover, Crankshaft Seal).
    NOTE:

    Take care not to damage the seal retainer or crankshaft during seal removal.

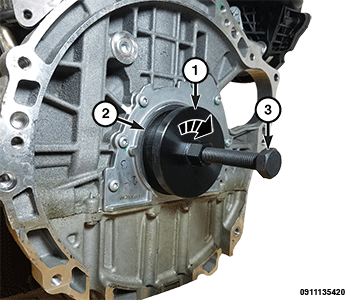

    GC0183711Courtesy of CHRYSLER GROUP, LLC
  3. Thread the remover (1) into the oil seal (2) and tighten the remover bolt (3) to extract the oil seal from the seal retainer.
