Off Vehicle

WARNING: This page is about a different variant/trim than selected.
NOTE:

The intake and exhaust springs are NOT interchangeable. Mark the springs accordingly for installation. Correctly identify the part numbers for new springs being installed.

  1. Remove the cylinder head. Refer to CYLINDER HEAD, REMOVAL .

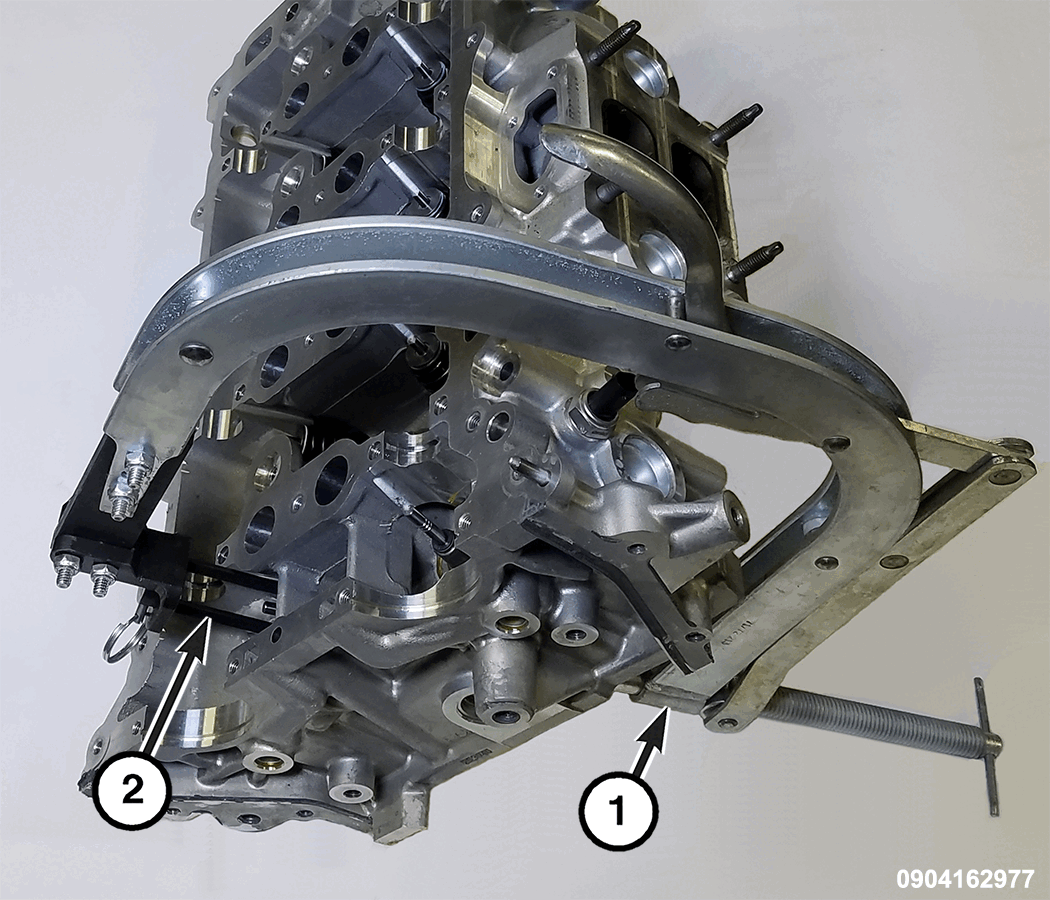

    GC0187110Courtesy of CHRYSLER GROUP, LLC
  2. Install the (special tool #10224, Adapter, Valve Spring) (2) on the (special tool #C-3422-D, Compressor, Valve Spring) (1).
  3. Install the valve spring compressor (1) onto the cylinder head.

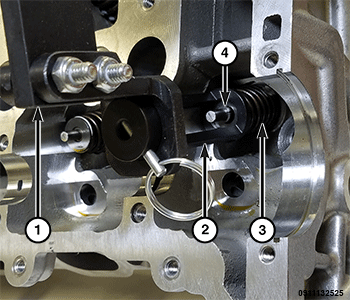

    GC0181368Courtesy of CHRYSLER GROUP, LLC
  4. Using the (special tool #10224, Adapter, Valve Spring) (2) mounted in the (special tool #C-3422-D, Compressor, Valve Spring) (1), compress valve spring (3) and remove the valve retaining locks (4).

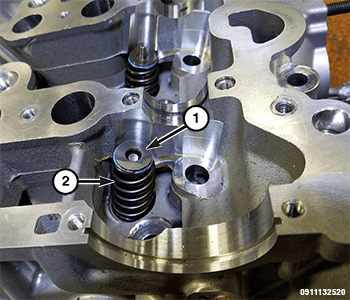

    GC0182107Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    The intake and exhaust springs are NOT interchangeable. Mark the springs accordingly for installation. Correctly identify the part numbers for new springs being installed.

    NOTE:

    If the springs are to be reused, identify their positions so that they can be reassembled into their original locations.

  5. Release the valve spring compression and remove the valve spring retainer (1) and valve spring (2).

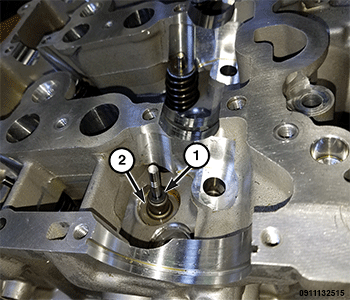

    GC0183486Courtesy of CHRYSLER GROUP, LLC
  6. If required, remove the valve guide seal (2). Refer to SEAL(S), VALVE GUIDE, REMOVAL .
